Tractor · 2013Unverified

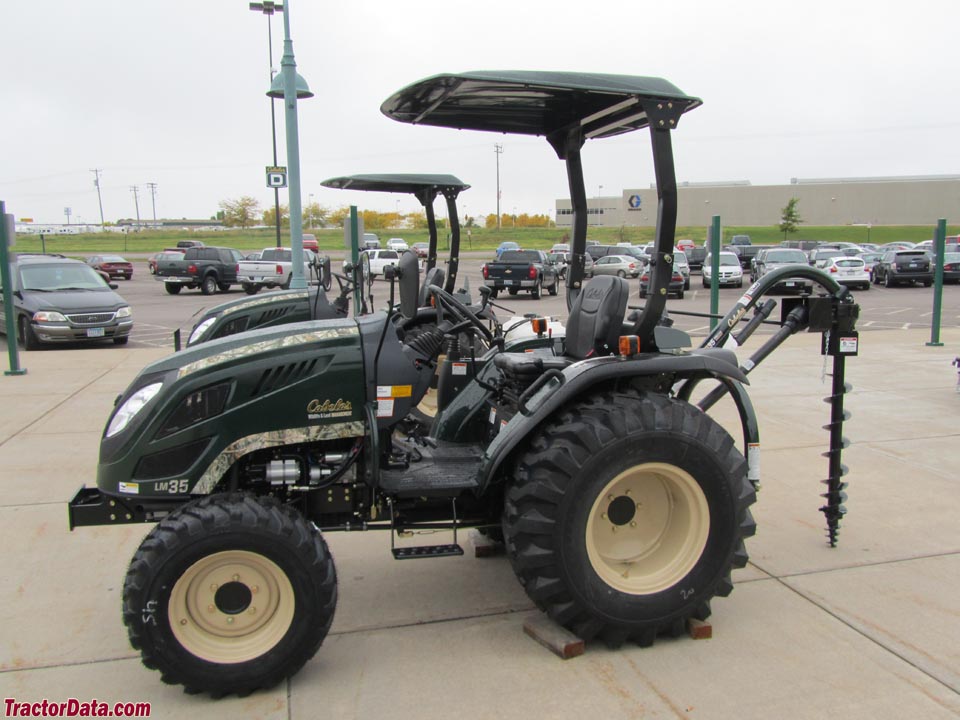

Cabelas LM35

Name: Cabelas LM35
Brand: Cabelas

Cabelas LM35 — LM Series · 35 hp. Reference specifications; pending source verification.

The Cabelas LM35 is a tractor with a rated output of 35 hp, making it a relatively compact option in its class. It features a 4-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive system. Manufactured from 2013 to 2014, the LM35 has a listed weight of 1424 kg and is suitable for tasks involving areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

35 hp

Weight

1424 kg

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

35 hp

Recorded weight

1424 kg

Transmissions

12-speed synchronized shuttle

Production years

2013-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCabelasReference

ManufacturerTYMReference

Compact Utility tractorReference

Built in South KoreaReference

Original price$21,999 (2013 shuttle)Reference

Original price$23,499 (2013 hydrostatic)Reference

Original price$17,999 (2014 shuttle)Reference

Original price$20,099 (2014 hydrostatic)Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

LM35shuttleReference

LM35HhydrostaticReference

T353similar TYM modelReference

Engine

Mitsubishi 1.8L 4-cyl dieselReference

Engine (gross)26.1 kWReference

Mitsubishi S4L2Reference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement1.8 LReference

Bore/Stroke78 x 92 mmReference

Power (gross)26.1 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity7.0 LReference

Transmission

12-speed synchronized shuttleReference

hydrostaticReference

Typesynchronized shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Oil capacity32.0 LReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity35.0 LReference

PTO & Hydraulics

PTO (claimed)21.6 kWReference

PTO (claimed)19.4 kWReference

Hydraulic system32.2 LReference

Hydraulic system34.8 LReference

Typeopen centerReference

Capacity32.2 LReference

Capacity34.8 LReference

Valves1Reference

Pump flow23.8 lpmReference

Total flow40.1 lpmReference

Total flow41.3 lpmReference

Steering flow16.3 lpmReference

Steering flow17.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)1200 kgReference

Rear lift (at 24"/610mm)800 kgReference

Rear PTOindependentReference

Clutchelectro hydraulicReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Capacities

Fuel34.1 LReference

Front axle8.2 LReference

Dimensions

Wheelbase163 cmReference

Weight1424 kgReference

Front tire7-16Reference

Rear tire11.2-24Reference

Ag front7-16Reference

Ag rear11.2-24Reference

Industrial front43x16-20Reference

Industrial rear10-16.5Reference

Length320 cmReference

Width158 cmReference

Height (ROPS)241 cmReference

Ground clearance29 cmReference

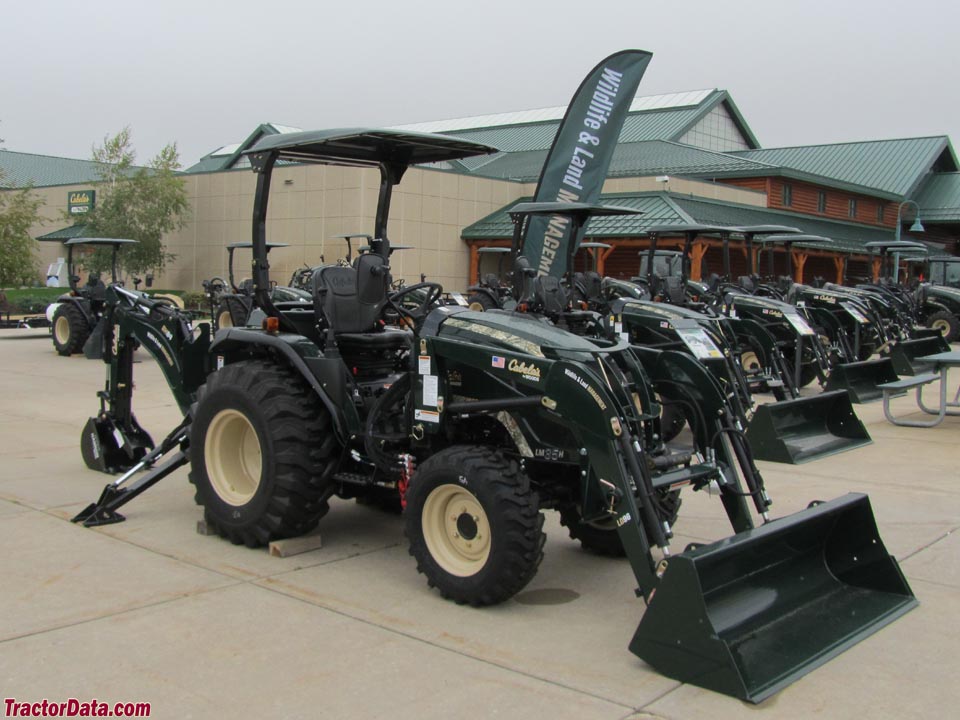

Cabelas LM35 attachments

front-end loaderReference

LM35 Serial Number Location

Tractor frame, left side, above front axle.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
