Tractor · 2014Unverified

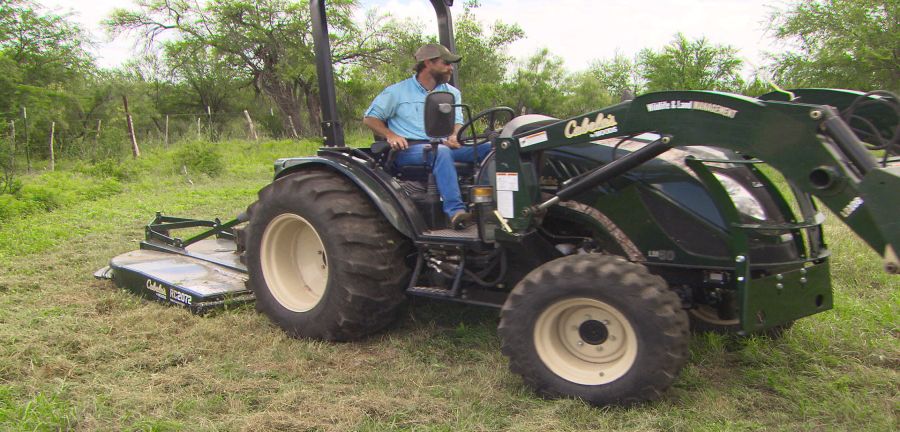

Cabelas LM45
Cabelas LM45 — LM Series · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
3770 to 4188 pounds
Hover a source tag to verify
Overview
DistributorCabelasReference
ManufacturerTYMReference
Compact Utility tractorReference
Built in South KoreaReference
Original price$26,299 (2016 gear ROPS )Reference
Original price$28,299 (2016 hydro ROPS )Reference
Original price$32,999 (2016 hydro cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
LM45shuttle ROPSReference
LM45Hhydrostatic ROPSReference
LM45HChydrostatic cabReference
Engine
Yanmar 2.2L 4-cyl dieselReference
Engine (gross)34.3 kWReference
Yanmar 4TNV88T-CRReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power (gross)34.3 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.7 LReference
Coolant capacity8.5 LReference
Transmission
16-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Oil capacity35.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)27.4 kWReference
Hydro PTO (claimed)25.5 kWReference
Hydraulic system35.0 LReference
Typeopen centerReference
Capacity35.0 LReference
Valves1Reference
Pump flow36.0 lpmReference
Total flow54.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1503 kgReference
Rear lift (at 24"/610mm)1335 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel60.0 LReference
Front axle9.9 LReference
Dimensions
Wheelbase193 cmReference
Weight3770 to 4188 poundsReference
Front tire9.5-16Reference
Rear tire14.9-24Reference
Standard tires (ag)Front: 9.5-16. Rear: 14.9-24Reference
Industrial front12-16.5Reference
Industrial rear16.9-24Reference
Length358 cmReference
Width162 cmReference
Height (ROPS)259 cmReference
Height (cab)252 cmReference
ROPS Weight1710 kgReference
Cab Weight1899 kgReference
Ground clearance35 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
