Tractor · 2013Unverified

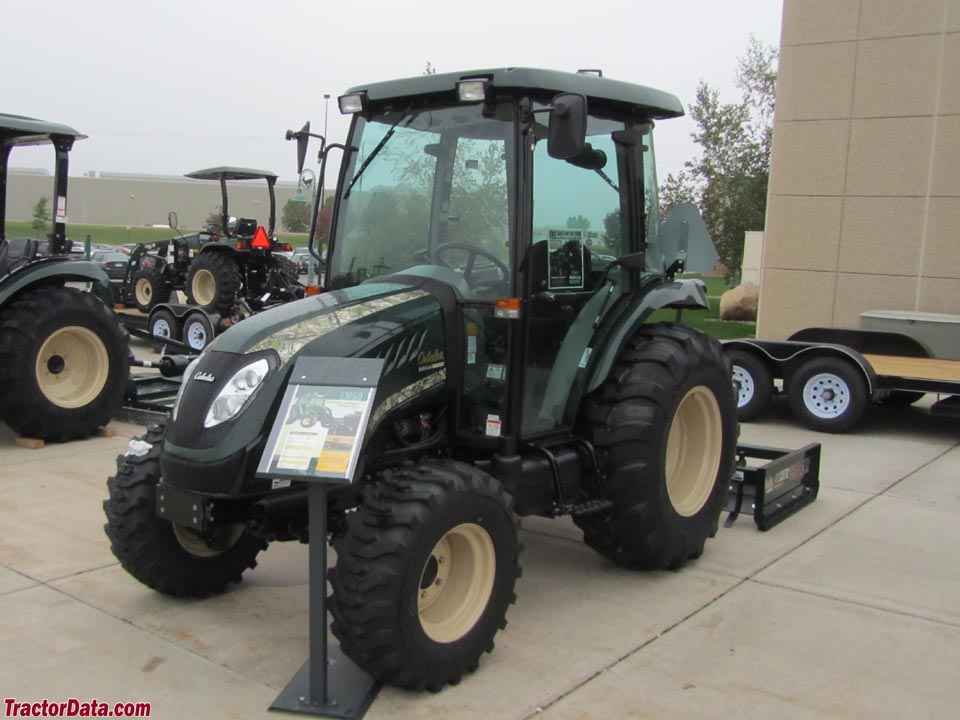

Cabelas LM50
Cabelas LM50 — LM Series · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
3640 to 4120 pounds
Hover a source tag to verify
Overview
DistributorCabelasReference
ManufacturerTYMReference
Compact Utility tractorReference
Built in South KoreaReference
Original price$31,499 (2013 shuttle ROPS)Reference
Original price$32,199 (2013 hydrostatic ROPS)Reference
Original price$39,199 (2013 hydrostatic cab)Reference
Original price$23,799 (2014 shuttle ROPS)Reference
Original price$25,799 (2014 hydrostatic ROPS)Reference
Original price$29,899 (2014 hydrostatic cab)Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional with air conditioning.Reference
Variants
LM50shuttleReference
LM50HhydrostaticReference
T503similar TYM modelReference
Engine
Perkins 2.2L 4-cyl dieselReference
Engine (gross)37.8 kWReference
Perkins 404D-22Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)37.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Compression24.4:1Reference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.7 LReference
Coolant capacity8.5 LReference
Transmission
16-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Oil capacity35.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)29.7 kWReference
Hydro PTO (claimed)27.6 kWReference
Hydraulic system34.8 LReference
Typeopen centerReference
Capacity34.8 LReference
Valves2 to 3Reference
Pump flow36.0 lpmReference
Total flow54.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1503 kgReference
Rear lift (at 24"/610mm)1335 kgReference
Rear PTOindependentReference
Clutchelectro hydraulicReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel64.3 LReference
Front axle9.9 LReference
Dimensions
Wheelbase193 cmReference
Weight3640 to 4120 poundsReference
Front tire9.5-16Reference
Rear tire14.9-24Reference
Ag front9.5-16Reference
Ag rear14.9-24Reference
Industrial front12-16.5Reference
Industrial rear16.9-24Reference
Length358 cmReference
Width181 cmReference
Height (ROPS)257 cmReference
ROPS Weight1651 kgReference
Cab Weight1868 kgReference
Ground clearance33 cmReference
Cabelas LM50 attachments
front-end loaderReference
LM50 Serial Number Location
Tractor frame, right side, above front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
