Tractor · 2014Unverified

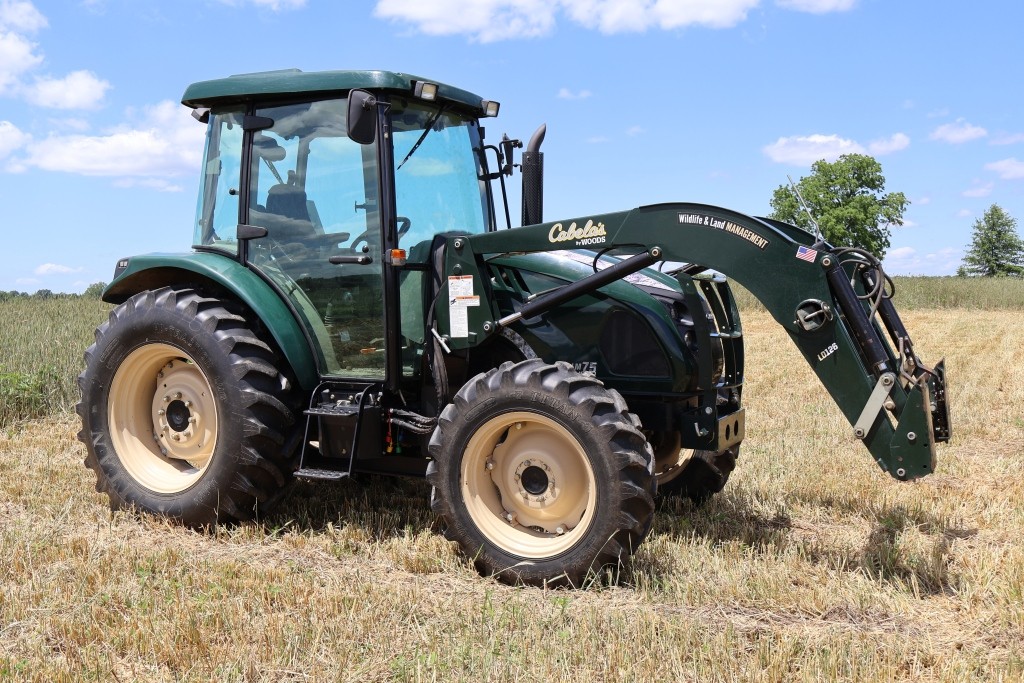

Cabelas LM75
Cabelas LM75 — LM Series · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Max power
50.1 kW
Weight
6052 to 6110 pounds
Hover a source tag to verify
Overview
DistributorCabelasReference
ManufacturerTYMReference
Utility tractorReference
Built in South KoreaReference
Original price was $43,199 in 2016Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditoning.Reference
Engine
Deutz 2.9L 4-cyl dieselReference
Engine (gross)55.2 kWReference
Deutz TCD2.9Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke92 x 110 mmReference
Power (gross)55.2 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Compression17.8:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.0 LReference
Coolant capacity9.5 LReference
Max power50.1 kWReference
Transmission
16-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Clutchwet discReference
Oil capacity47.0 LReference
PTO & Hydraulics
PTO (claimed)47.8 kWReference
PTO (tested)50.1 kWReference
Hydraulic system46.9 LReference
Typeopen centerReference
Capacity46.9 LReference
Valves2Reference
Pump flow42.0 lpmReference
Total flow60.2 lpmReference
Steering flow18.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2326 kgReference
Rear lift (at 24"/610mm)1554 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Engine RPM540@2198Reference
Engine RPM540E@1506Reference
Capacities
Fuel90.1 LReference
Front axle16.3 LReference
Dimensions
Wheelbase218 cmReference
Weight6052 to 6110 poundsReference
Front tire11.2-24Reference
Rear tire16.9-30Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Length400 cmReference
Width186 cmReference
Height (cab)264 cmReference
Shipping weight2745 kgReference
Operating weight2771 kgReference
Ground clearance42 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts14Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDAugust 18 - September 3, 2015Link: Nebraska Tractor Test 2128 fileReference
PTO performanceReference
Fuel use15.1 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
