Cameco 145-B

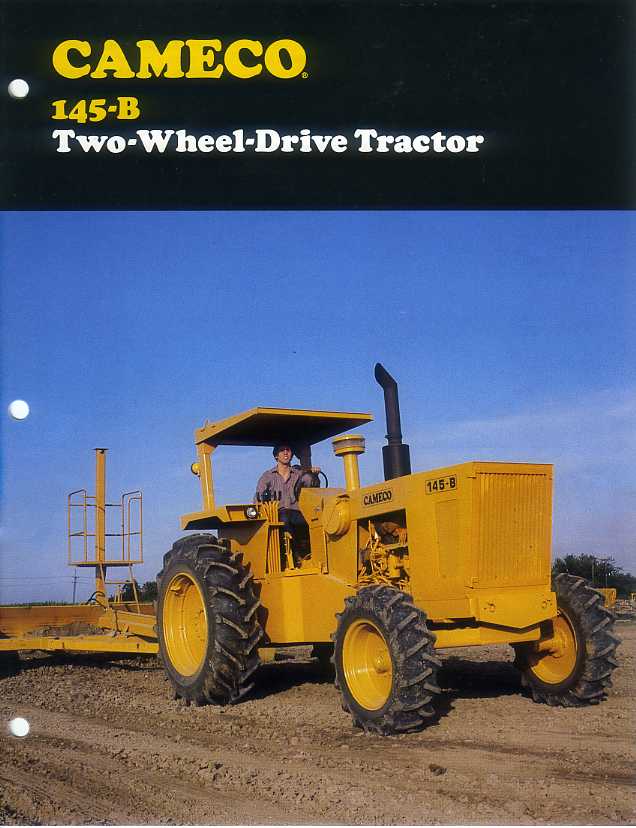

Cameco 145-B — Standard-tread tractor · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
5450 kg
Hover a source tag to verify
Overview
ManufacturerCamecoReference
Standard-tread tractorReference
Built in Thibodaux, Louisiana, USAReference
Two-wheel driveReference
Final drivesinboard planetaryReference
Hydraulic wet disc brakesReference
Two-post ROPS with canopy. Cab optional with air-conditioning.Reference
Engine
Caterpillar 7.0L 4-cyl dieselReference
Engine108.1 kWReference
Caterpillar 3304TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement7.0 LReference
Bore/Stroke121 x 152 mmReference
Power108.1 kWReference
Rated RPM2200Reference
Torque562.7 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
5-speedReference
TransmissionAllisonReference
Gears5 forward and 1 reverseReference
Capacities
Fuel246.0 LReference
PTO & Hydraulics
Hydraulic system76.1 LReference
Typeopen centerReference
Capacity76.1 LReference
Pressure151.7 barReference
Valves2 to 4Reference
Pump flow98.4 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase299 cmReference
Weight5450 kgReference
Front tire11.0x16Reference
Rear tire18.4x34Reference
Ag front11.0x16Reference
Ag rear18.4x34Reference
Ag front12.4x24Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Length477 cmReference
Width236 cmReference
Height (ROPS)307 cmReference
Shipping weight5450 kgReference
Max weight7259 kgReference
Ground clearance50 cmReference
Front tread172 cmReference
Rear tread172 cmReference
Electrical
Charging systemalternatorReference
Charging amps60Reference
Batteries2Reference
Battery CCA620Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
