Tractor · 1976Unverified

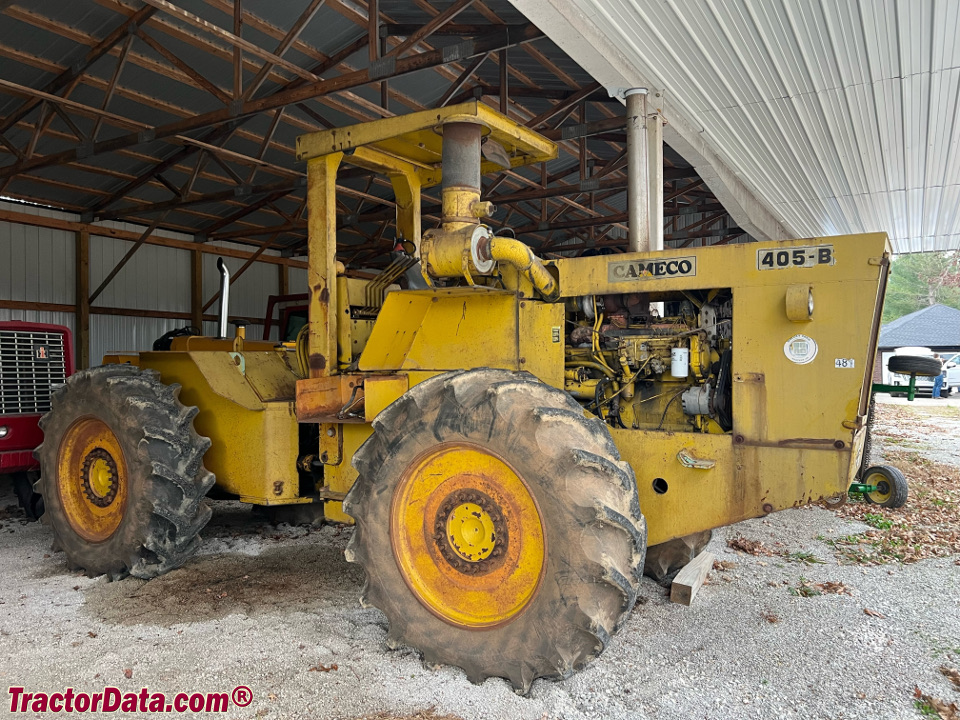

Cameco 405-B
Cameco 405-B — Four-wheel Drive (4WD) tractor · 250 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
250 hp
Weight
10125 kg
Hover a source tag to verify
Overview
ManufacturerCamecoReference
Four-wheel Drive (4WD) tractorReference
Built in Thibodaux, Louisiana, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Hydraulic wet disc brakesReference
Open operator station. Cab optional with air-conditioning.Reference
Engine
Caterpillar 10.5L 6-cyl dieselReference
Engine186.4 kWReference
Caterpillar 3306DITReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.5 LReference
Bore/Stroke121 x 152 mmReference
Power186.4 kWReference
Rated RPM2200Reference
Torque988.5 NmReference
Torque RPM1500Reference
Firing order1-5-3-6-2-4Reference
Starter typeelectricReference
Oil capacity28.0 LReference
Coolant capacity61.0 LReference
Transmission
10-speed power shiftReference
TransmissionAllison HT750Reference
Typepower shiftReference
Gears10 forward and 2 reverseReference
Five gears, plus reverse, with two-speed transfer case. Torque converter with automatic lock up in first and second gears.Reference
Capacities
Fuel570.0 LReference
PTO & Hydraulics
Hydraulic system140.0 LReference
Typeopen centerReference
Capacity140.0 LReference
Pressure137.9 barReference
Valves4Reference
Pump flow118.1 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase344 cmReference
Weight10125 kgReference
Front tire23.1x30Reference
Rear tire23.1x30Reference
Ag front23.1x30Reference
Ag rear23.1x30Reference
Ag front23.1x34Reference
Ag rear23.1x34Reference
Length620 cmReference
Width240 cmReference
Height (exhaust)350 cmReference
Shipping weight10125 kgReference
Max weight14400 kgReference
Ground clearance44 cmReference
Front tread180 cmReference
Rear tread180 cmReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Charging volts24Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
