Tractor · 1994Unverified

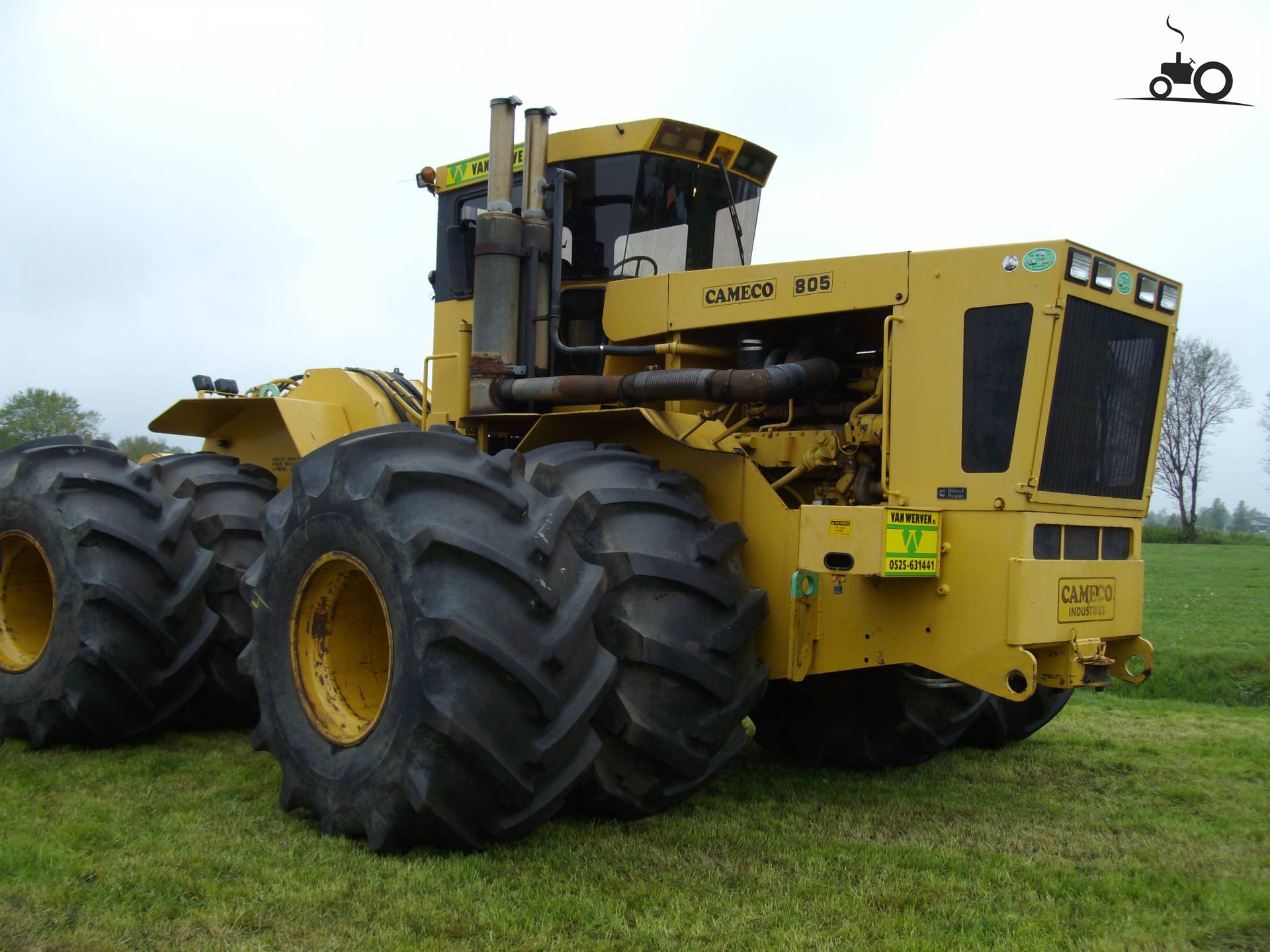

Cameco 805
Cameco 805 · 600 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
600 hp
Weight
29484 kg
Hover a source tag to verify
Overview
ManufacturerCamecoReference
Built in Thibodaux, Louisiana, USAReference
Four-wheel driveReference
Hydraulic wet discs brakesReference
Cab standard with air-conditioningReference
Engine
Caterpillar 15.8L 6-cyl dieselReference
Cummins 6-cyl dieselReference
Engine447.4 kWReference
Caterpillar C-16Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement15.8 LReference
Bore/Stroke140 x 171 mmReference
Power447.4 kWReference
Rated RPM2100Reference
Torque2745.9 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts24Reference
Oil capacity34.1 LReference
Cummins QSXReference
The Cummins QSX engine replaced the Caterpillar C16 in early 2001.Reference
Torque2779.8 NmReference
Transmission
12-speed power shiftReference
8-speed power shiftReference
Typepower shiftReference
Gears12 forward and 2 reverseReference
Oil capacity71.9 LReference
Gears8 forward and 2 reverseReference
Oil capacity75.7 LReference
Capacities
Fuel1665.4 LReference
PTO & Hydraulics
Hydraulic system511.0 LReference
Typeclosed center load sensingReference
Capacity511.0 LReference
Pressure172.4 barReference
Pump flow189.2 lpmReference
Dimensions
Wheelbase384 cmReference
Weight29484 kgReference
Front tire900/50R42Reference
Rear tire900/50R42Reference
Ag front900/50R42Reference
Ag rear900/50R42Reference
Ag front800/70R38Reference
Ag rear800/70R38Reference
Length784 cmReference
Width563 cmReference
Height393 cmReference
Shipping weight29484 kgReference
Electrical
Charging systemalternatorReference
Charging amps130Reference
Batteries4Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
