Tractor · 2013Unverified

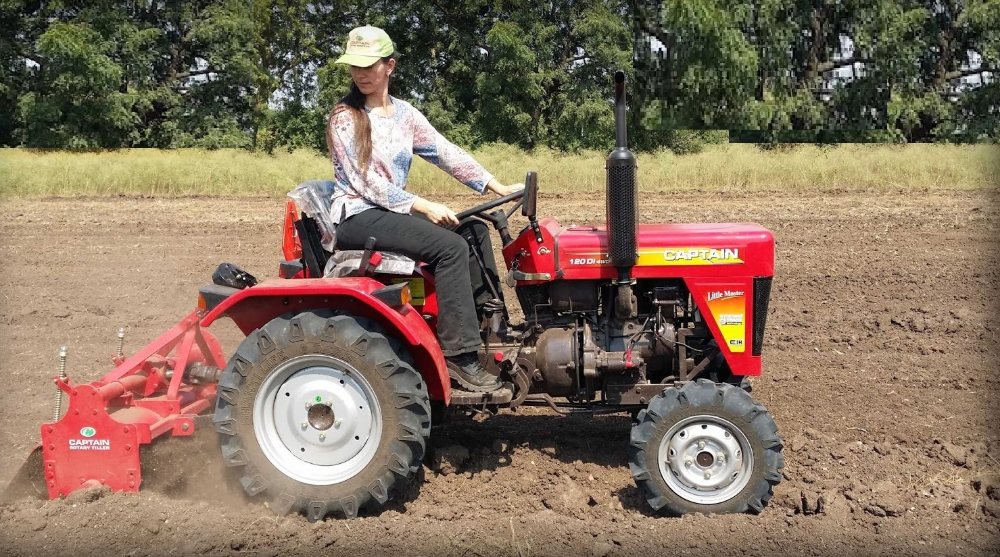

Captain 120 DI

Name: Captain 120 DI
Brand: Captain

Captain 120 DI — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.

The Captain 120 DI tractor is classified as a lighter model, with an approximate power rating of 15 hp. It was manufactured in 2013. It features a 1-cylinder diesel air-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. The operating weight of the Captain 120 DI ranges from 1720 to 1808 pounds, making it suitable for areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

15 hp

Weight

1720 to 1808 pounds

Catalogue coverage

Variants represented

Richest spec table

37 rows

Recorded power

15 hp

Recorded weight

780 kg

Transmissions

8-speed partially synchronized

Production years

2013-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaptainReference

Compact Utility tractorReference

Built in Rajkot, IndiaReference

Two- or four-wheel driveReference

Mechanical drum brakesReference

Open operator station.Reference

Engine

FM 0.6L 1-cyl dieselReference

Engine11.2 kWReference

FMReference

dieselReference

1-cylinderReference

air-cooledReference

Displacement0.6 LReference

Bore/Stroke85 x 110 mmReference

Power11.2 kWReference

Air cleaneroil bathReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

8-speed partially synchronizedReference

Typepartially synchronizedReference

Gears8 forward and 2 reverseReference

Four gears, plus reverse, in two ranges.Reference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase145 cmReference

Weight1720 to 1808 poundsReference

Front tire5.20-14Reference

2WD Rear tire8.00-18Reference

2WD Standard tires (ag)Front: 5.20-14. Rear: 8.00-18Reference

4WD Standard tires (ag)Front: 5.00-12. Rear: 8.00-18Reference

Length250 cmReference

Width103 cmReference

Height (exhaust)169 cmReference

2WD Weight780 kgReference

4WD Weight820 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
