Tractor · 2014Unverified

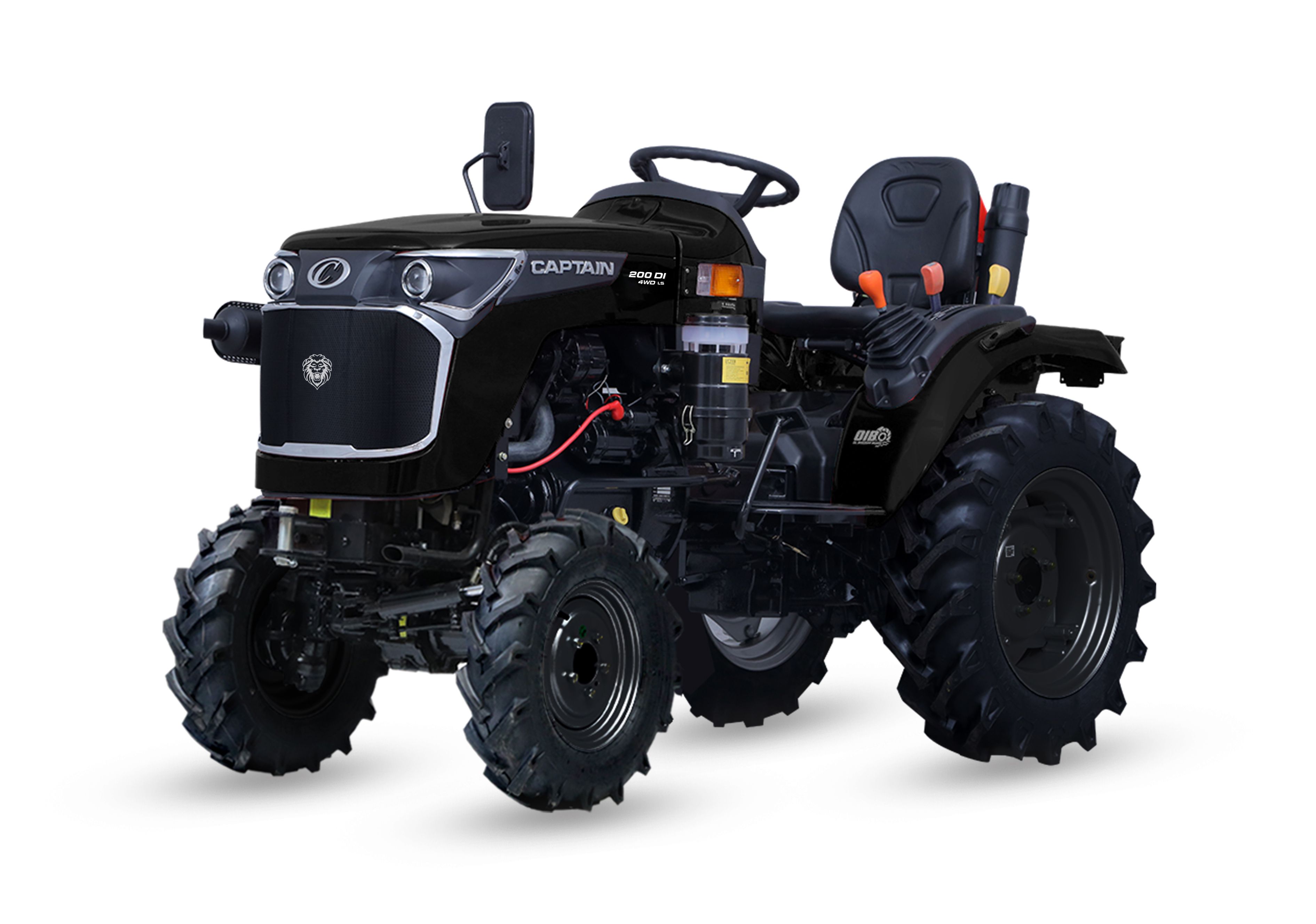

Captain 200 DI
Captain 200 DI — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1951 to 2072 pounds
Hover a source tag to verify
Overview
ManufacturerCaptainReference
Compact Utility tractorReference
Built in Rajkot, IndiaReference
Two- or four-wheel driveReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
0.9L 1-cyl dieselReference
Engine14.9 kWReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke100 x 114 mmReference
Power14.9 kWReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase150 cmReference
Weight1951 to 2072 poundsReference
Front tire5.20-14Reference
2WD Rear tire8.00-18Reference
2WD Standard tires (ag)Front: 5.20-14. Rear: 8.00-18Reference
4WD Standard tires (ag)Front: 5.00-12. Rear: 8.00-18Reference
Length260 cmReference
Width103 cmReference
Height (exhaust)169 cmReference
2WD Weight884 kgReference
4WD Weight939 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
