Tractor · 2023Unverified

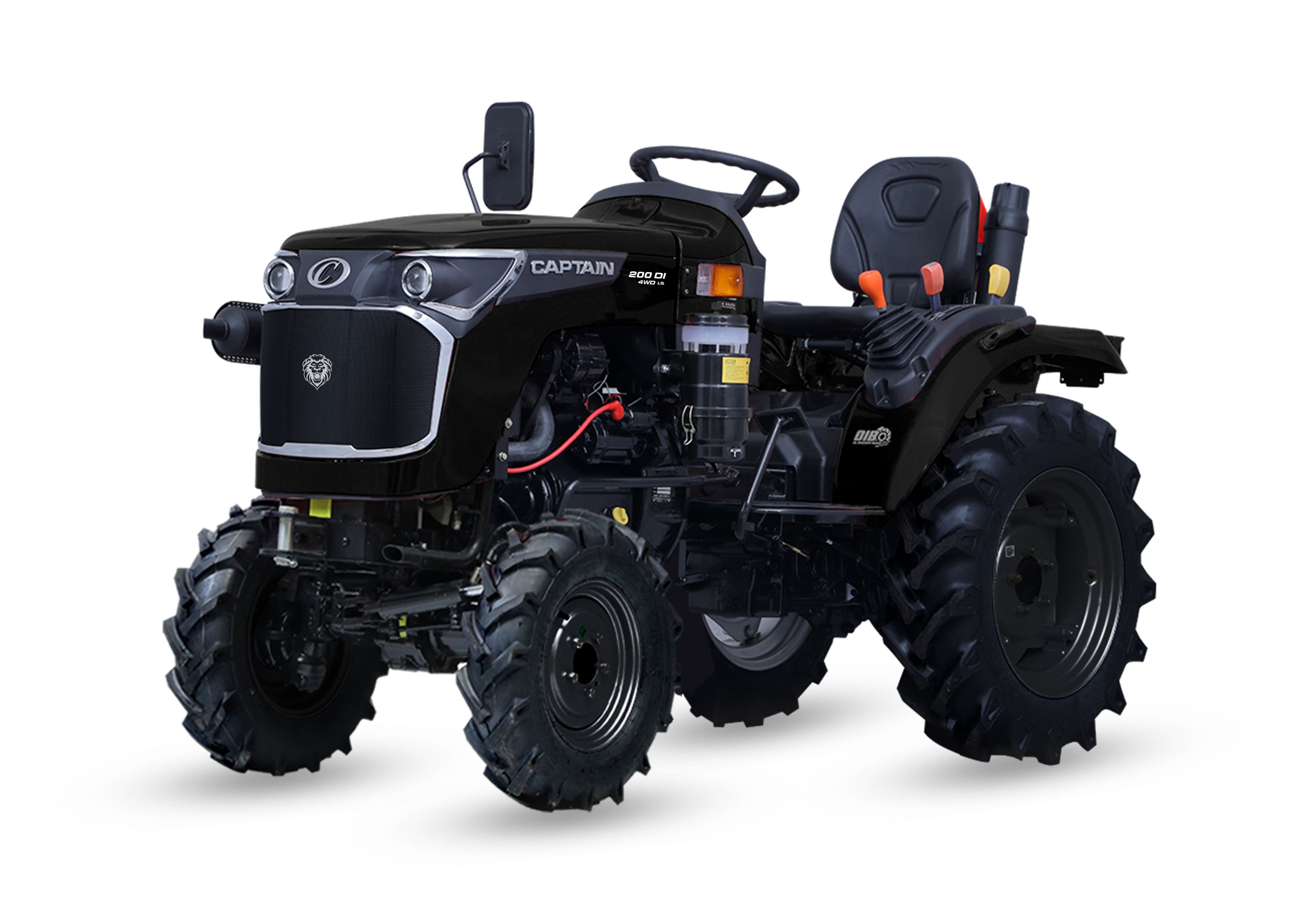

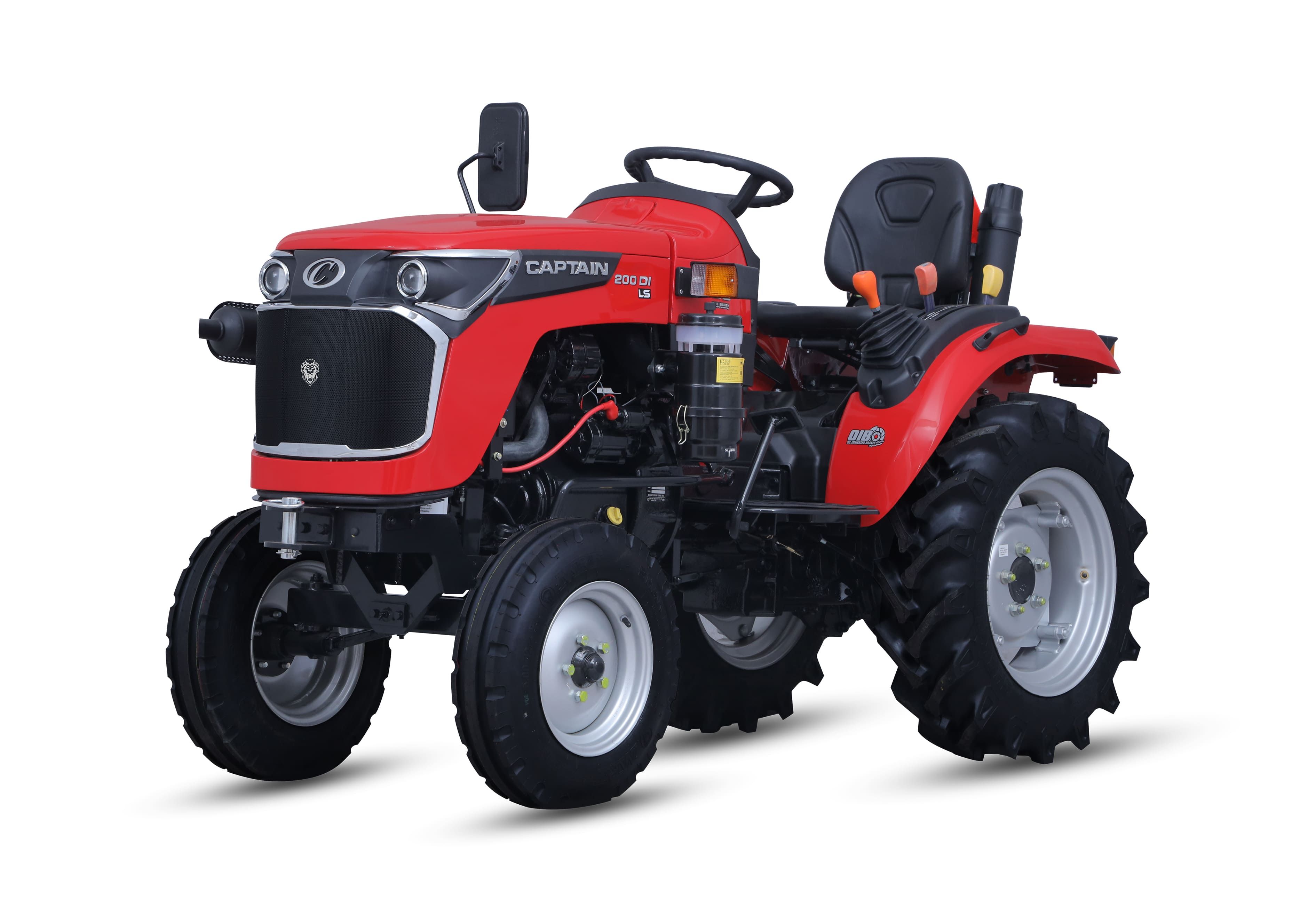

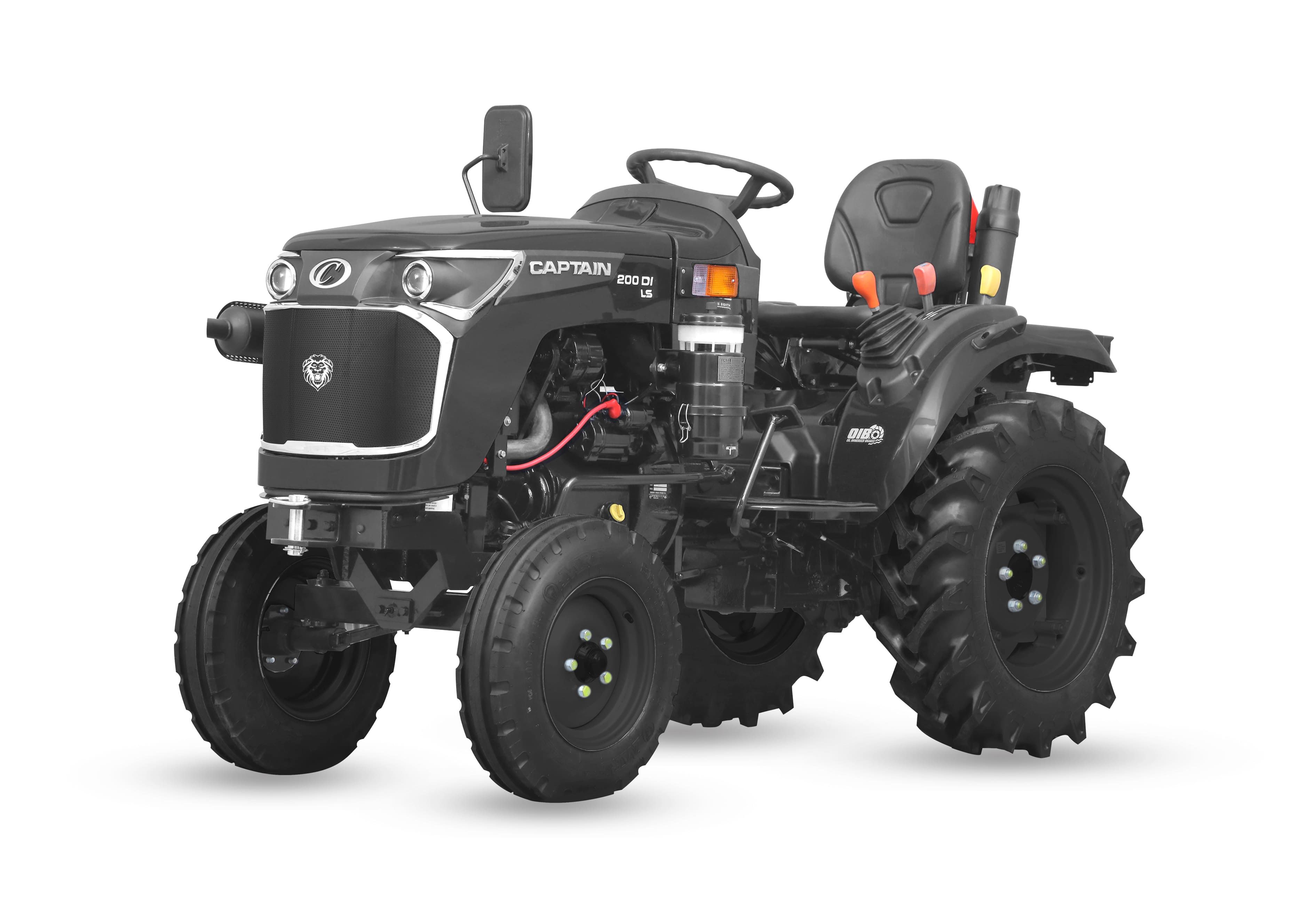

Captain 200 DI LS
Captain 200 DI LS — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
929 kg
Hover a source tag to verify
Overview
ManufacturerCaptainReference
Compact Utility tractorReference
Built in Rajkot, IndiaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Wet disc brakesReference
Open operator station.Reference
Engine
0.9L 1-cyl dieselReference
Engine14.9 kWReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke102 x 116 mmReference
Power14.9 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed partially synchronizedReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase149 cmReference
Weight929 kgReference
Front tire5.00-12Reference
Rear tire8.00-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8.00-18Reference
Optional tires (ag)Front: 5.25-14. Rear: 8.3-20Reference
Length266 cmReference
Width103 cmReference
Height (steering wheel)132 cmReference
Rear tread86 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
