Tractor · 2021Unverified

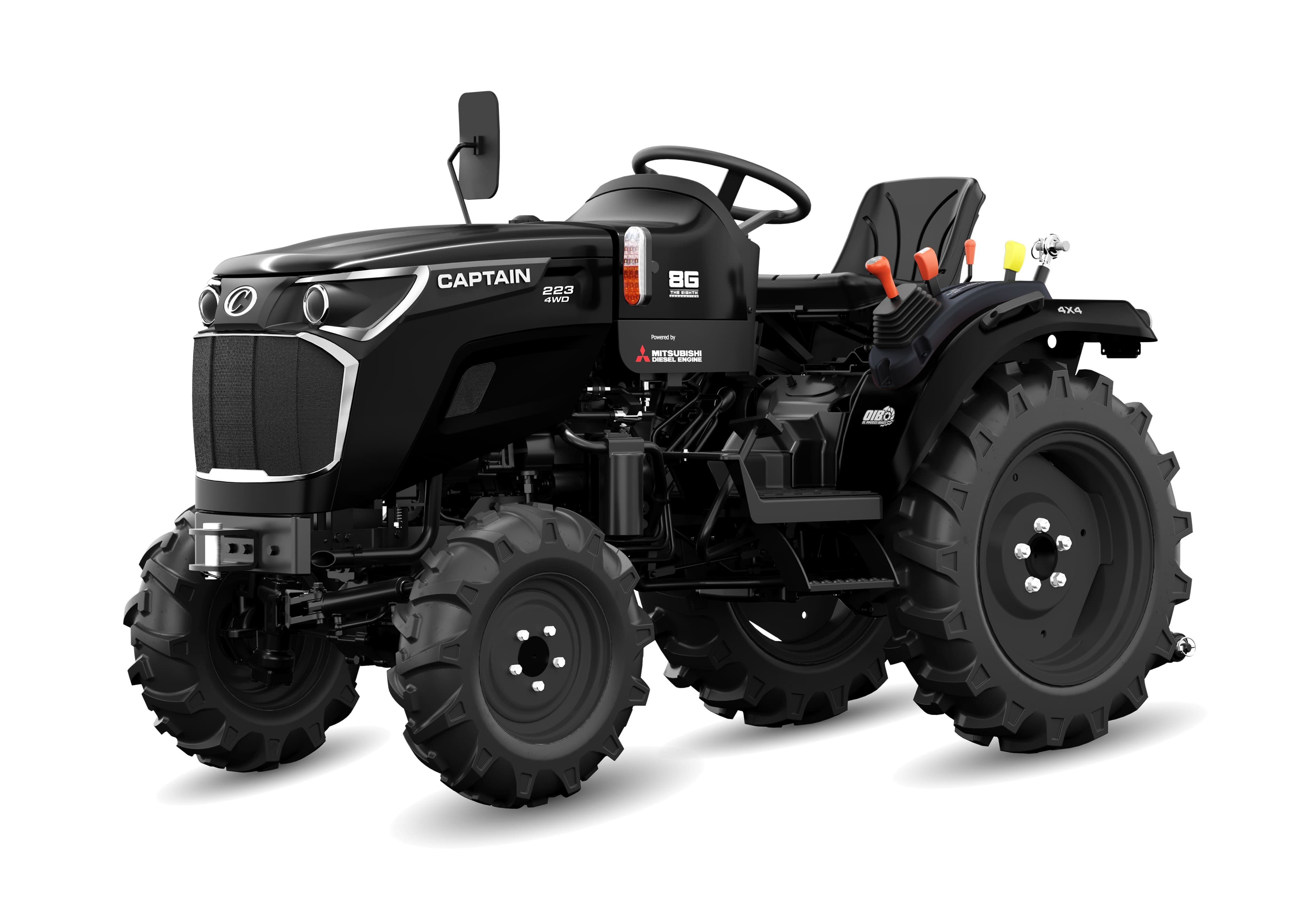

Captain 223
Captain 223 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
879 kg
Hover a source tag to verify
Overview
ManufacturerCaptainReference
Compact Utility tractorReference
Built in Rajkot, IndiaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Engine15.8 kWReference
Mitsubishi L3EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power15.8 kWReference
Air cleanerdryReference
Rated RPM3000Reference
Torque52.1 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.6 LReference
Transmission
9-speed partially synchronizedReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Oil capacity20.0 LReference
Three gears, plus reverse, in three ranges.Reference
Capacities
Fuel20.1 LReference
PTO & Hydraulics
Hydraulic system20.1 LReference
Capacity20.1 LReference
Rear TypeINReference
Rear lift749 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2500@1000@2500Reference
Dimensions
Wheelbase149 cmReference
Weight879 kgReference
Front tire5.00-12Reference
Rear tire8.00-18Reference
Standard tires (ag)Front: 5.00-12. Rear: 8.00-18Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear33x15.5-16.5Reference
Length284 cmReference
Width104 cmReference
Height (ROPS)205 cmReference
Ground clearance17 cmReference
Rear tread70 to 98 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 8.3-20 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
