Tractor · Unverified

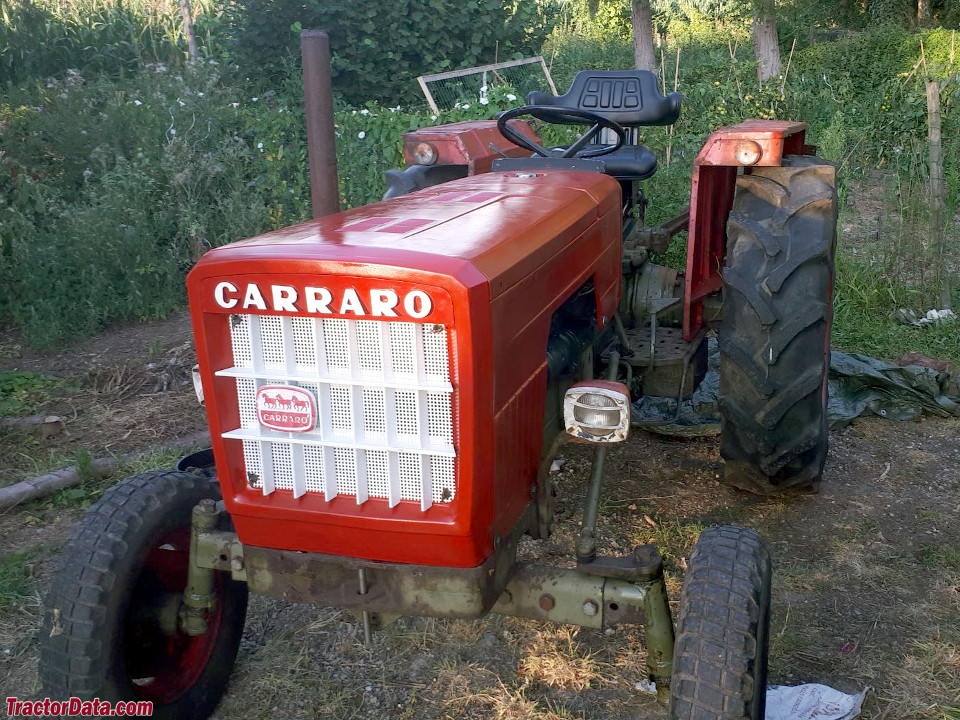

Carraro 6000
Carraro 6000 — Utility tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
5115 to 5512 pounds
Hover a source tag to verify
Overview
ManufacturerCarraroReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Open operator station.Reference
Engine
Carraro 3.2L 3-cyl dieselReference
Fuel tank60.2 LReference
Engine41.9 kWReference
Carraro 315Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.2 LReference
Bore/Stroke110 x 110 mmReference
Power41.9 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2000Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase199 cmReference
Weight5115 to 5512 poundsReference
Front tire6.50x16Reference
Rear tire13x28Reference
2WD Ag front6.50x16Reference
4WD Ag front9.00x24Reference
Ag rear13x28Reference
Ag front6.00x19Reference
Ag rear14x28Reference
Ag rear11x36Reference
2WD Length321 cmReference
4WD Length337 cmReference
Height143 cmReference
2WD Weight2320 kgReference
4WD Weight2500 kgReference
2WD Ground clearance59 cmReference
4WD Ground clearance40 cmReference
2WD Front tread130 to 189 cmReference
4WD Front tread150 cmReference
Rear tread130 to 195 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH120Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
