TractorMaxxum Series · 2024 Verified · 80%

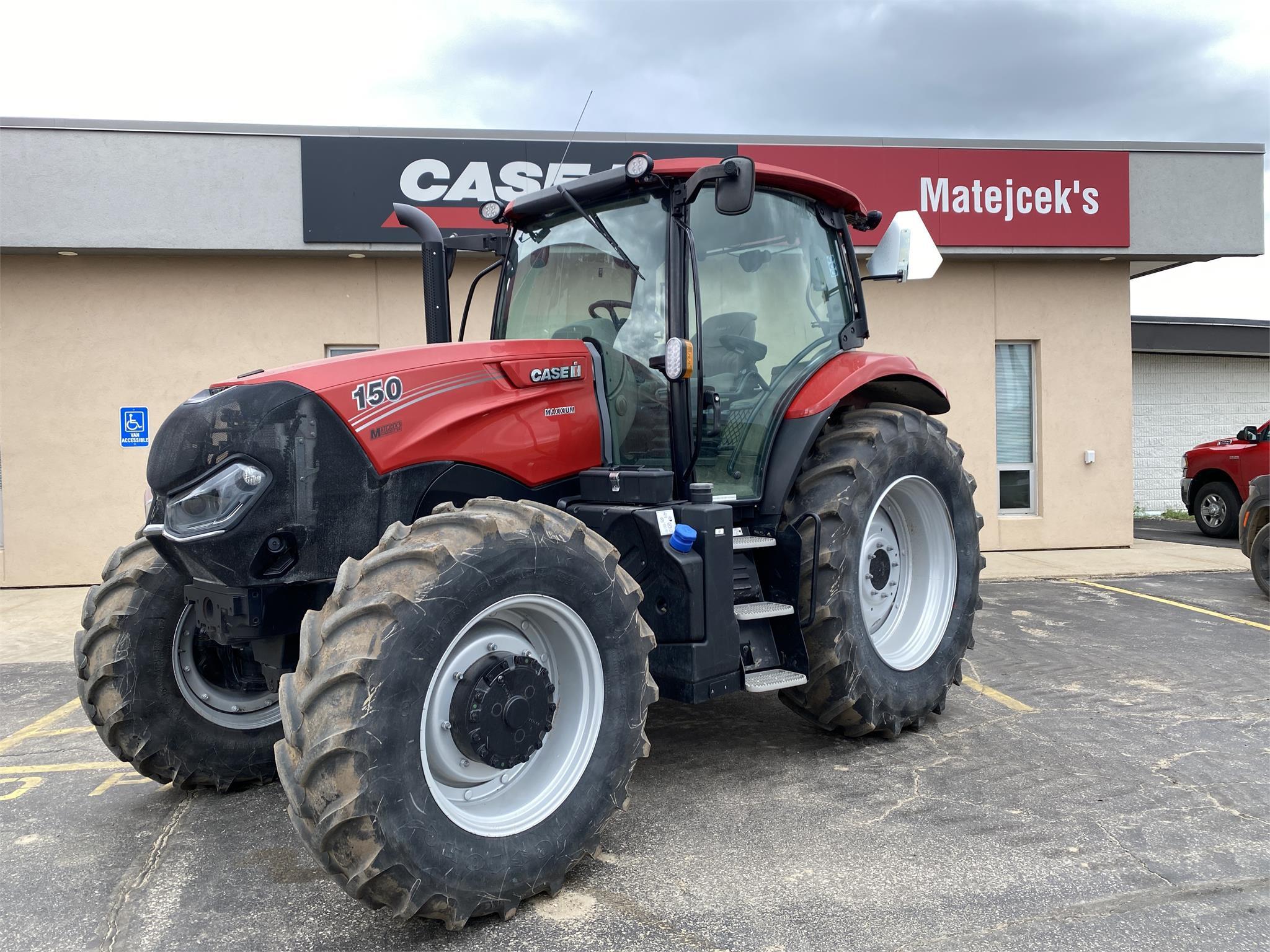

Case IH Maxxum 150

Name: Case IH Maxxum 150
Brand: Case IH

Case IH Maxxum 150: 150 hp tractor — 6.7 L engine, 125 hp PTO, 2812 kg rear lift. Verified specs with sources, UK & US units.

The Case IH Maxxum 150, part of the Maxxum Series series, is a tractor rated at 150 hp — placing it among the higher-powered machines in its class. It was introduced in 2024. It is powered by a diesel engine, driving through two-wheel drive with a powershift transmission. Listed weight is 5,820 kg, and it is aimed at jobs of around 200–800 ac. Available dimensions and performance figures follow in both unit systems.

Rated power

150 hp

Max power

175 hp

Weight

8,999.7 kg

Catalogue coverage

Variants represented

Richest spec table

27 rows

Recorded power

150 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power112 kW (150 hp)OEM

Emissions stageStage VEPA cert

Engine6.7 LDealer

Fuel TypeDieselReference

Capacities

Fuel tank195 LDealer

Capacity6.7 LReference

Diesel exhaust fluid (DEF) tank31.4 LReference

PTO & Hydraulics

Hydraulic flow80 L/minDealer

PTO power93 kW (125 hp)Dealer

Rear lift capacity2812 kgDealer

Dimensions

Wheelbase2650 mmDealer

General

Make & ModelCase IH FPTReference

SCV controlJoystick: AvailableReference

Power

Max Power175 hpReference

PTO

Rear PTO RPM1,000Reference

Front PTO PowerAvailableReference

Transmission

Transmission TypePowershiftReference

forward and reverse options23F x 23RReference

Wheel Drive2WDReference

Hydraulics

Remote Valves4Reference

Rear Hitch category (SAE designation)Category 2Reference

Dimensions & weight

Height Over Cab214.9 cmReference

Overall Width248.9 cmReference

Overall weight5,820 kgReference

Weight8,999.7 kgReference

Operator station

Cab AvailabilityTRUEReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
