TractorOptum Series · 2024 Verified · 83%

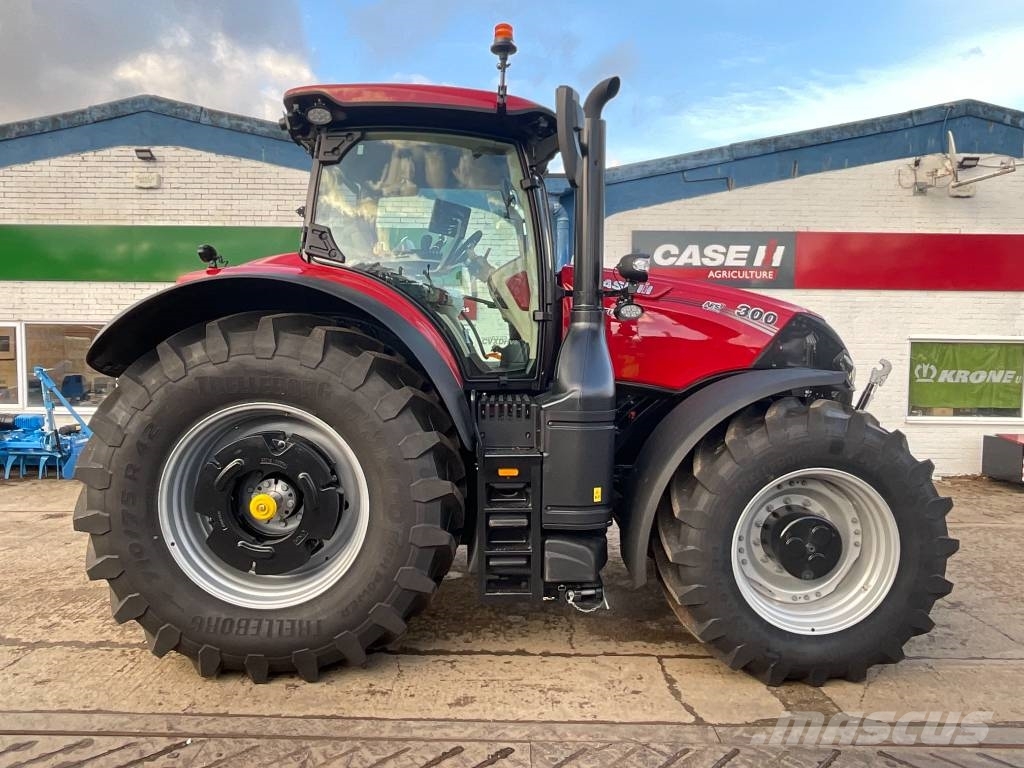

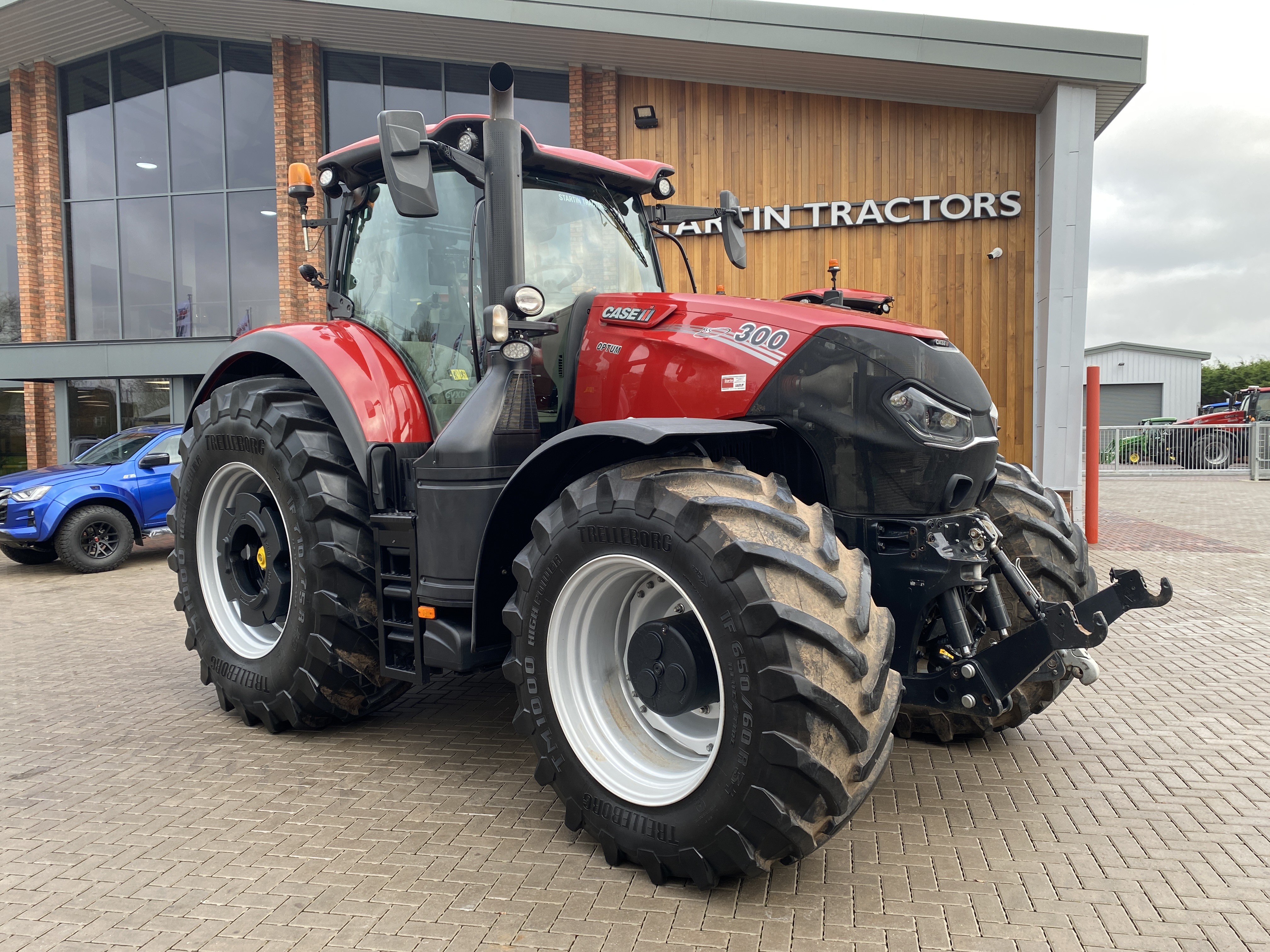

Case IH Optum 300

Name: Case IH Optum 300
Brand: Case IH

Case IH Optum 300: 300 hp tractor — 6.7 L engine, 270 hp PTO, 8700 kg rear lift. Verified specs with sources, UK & US units.

The Case IH Optum 300 is a tractor rated at roughly 300 hp, which puts it at the powerful end of its class. This model entered production in 2024. Power comes from a diesel engine, paired with four-wheel drive with a continuously variable transmission. It has a listed operating weight of 10500 kg, and it suits operations of 1,500+ ac. The available specification table below shows both UK and US units.

Rated power

300 hp

Max power

313 hp

Weight

10500 kg

Catalogue coverage

Variants represented

Richest spec table

25 rows

Recorded power

300 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power224 kW (300 hp)OEM

Emissions stageStage VEPA cert

Engine6.7 LDealer

Fuel TypeDieselReference

PTO & Hydraulics

PTO power201 kW (270 hp)Dealer

Rear lift capacity8700 kgReference

Hydraulic flow165 L/minDealer

Dimensions

Wheelbase2970 mmDealer

Weight10500 kgDealer

Capacities

Fuel tank628 LDealer

Capacity6.7 LReference

Diesel exhaust fluid (DEF) tank96 LReference

General

Make & ModelFPTReference

Power

Max Power313 hpReference

PTO

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

Transmission

Transmission TypeCVTReference

forward speed range30Reference

Wheel Drive4WDReference

Hydraulics

Remote Valves4Reference

Rear Hitch category (SAE designation)Cat 3/4NReference

Dimensions & weight

Overall weight11,159.7 kgReference

Operator station

Cab AvailabilityTRUEReference

Electrical

Battery size12-volt, 1,300 ccaReference

Alternator size200 amp/250 ampReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
