TractorPuma Series · 2024 Verified · 81%

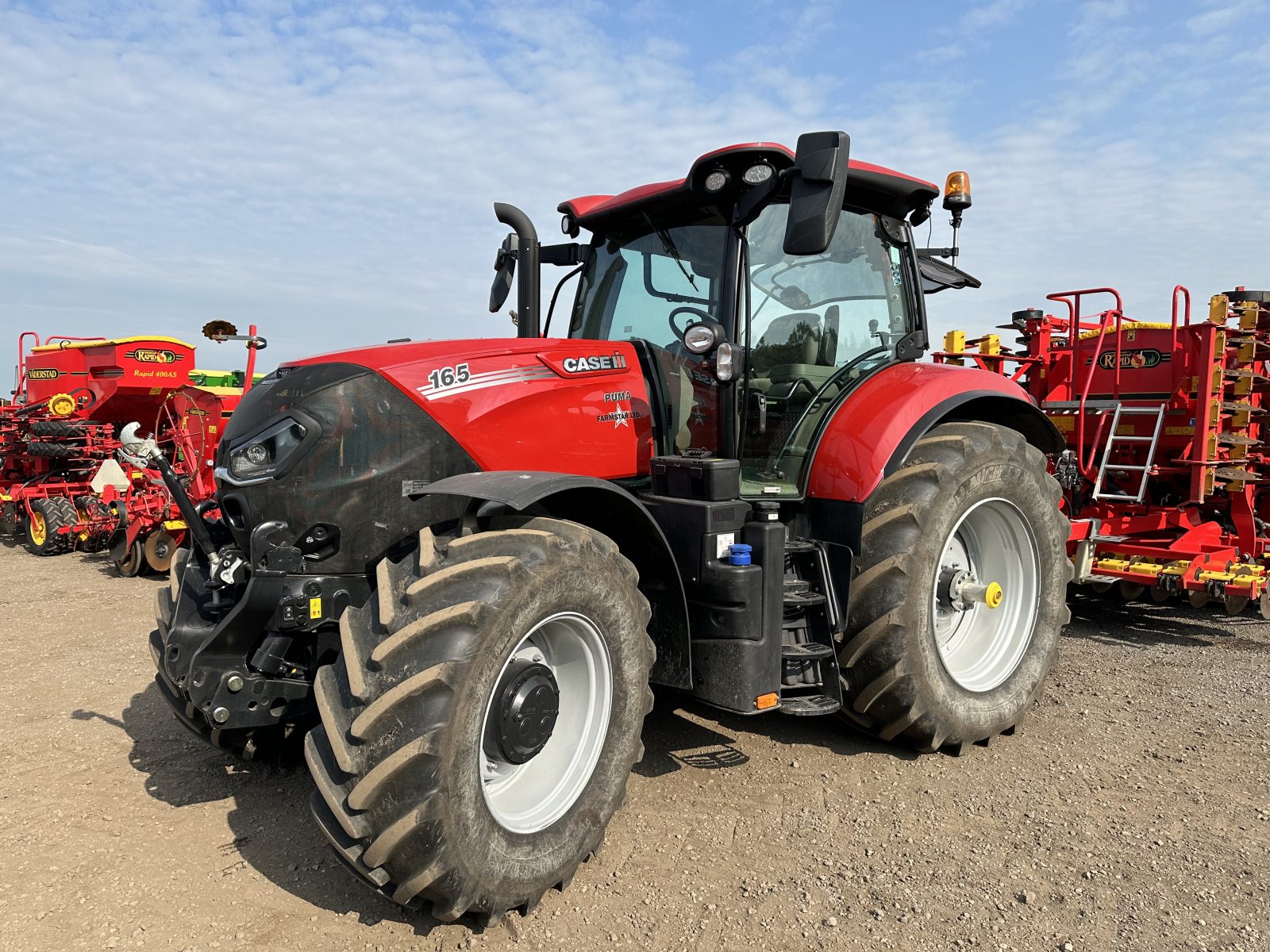

Case IH Puma 165

Name: Case IH Puma 165
Brand: Case IH

Case IH Puma 165: 165 hp tractor — 6.7 L engine, 135 hp PTO, 5800 kg rear lift. Verified specs with sources, UK & US units.

The Case IH Puma 165 is a tractor model with a rated power of 165 hp, which puts it at the powerful end of its class. It entered production in 2024. Under the hood is a diesel engine, paired with four-wheel drive with a powershift transmission. It has a listed operating weight of 6,304.9 kg, and it suits operations of 600–1,500 ac. The available specification table below shows both UK and US units.

Rated power

165 hp

Max power

189.9 hp

Weight

11,000.1 kg

Catalogue coverage

Variants represented

Richest spec table

25 rows

Recorded power

165 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power123 kW (165 hp)OEM

Emissions stageStage VEPA cert

Engine6.7 LDealer

Fuel TypeDieselReference

PTO & Hydraulics

PTO power101 kW (135 hp)Dealer

Rear lift capacity5800 kgDealer

Dimensions

Wheelbase2880 mmDealer

General

Make & ModelFPT @ 6.7 LReference

SCV controlJoystickReference

Capacities

Capacity6.7 LReference

Fuel tank330 LReference

Diesel exhaust fluid (DEF) tank57 LReference

Power

Max Power189.9 hpReference

PTO

Rear PTO RPM1,000Reference

Transmission

Transmission TypePowershiftReference

forward and reverse options18F x 6RReference

forward speed range25 or 31Reference

Wheel Drive4WDReference

Hydraulics

Remote Valves5Reference

Rear Hitch category (SAE designation)Category 2Reference

Rear Hitch maximum lift capacity5,880.8 kgReference

Dimensions & weight

Height Over CabOption 1: 3,155 mm\\nOption 2: 124.2 inchesReference

Overall weight6,304.9 kgReference

Weight11,000.1 kgReference

Operator station

Cab AvailabilityTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
