Skid-Steer LoaderB Series · 2024Unverified

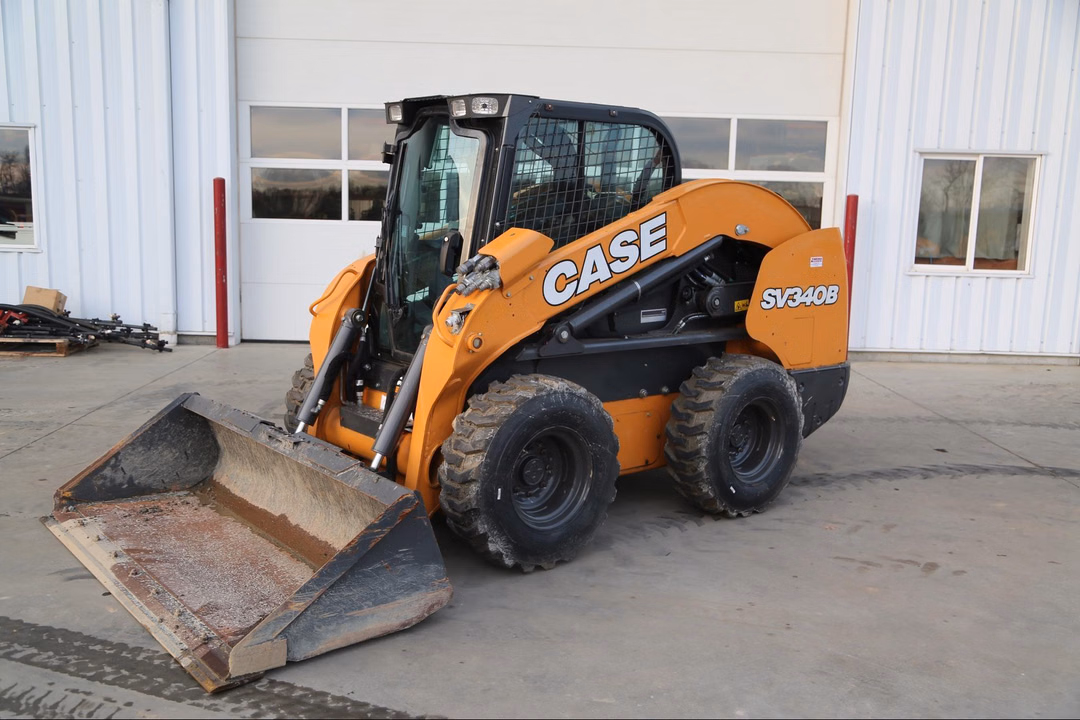

Case SV340B

Name: Case SV340B
Brand: Case

Case SV340B — 90 hp skid-steer loader. Headline figure shown; full specifications are pending source verification.

The Case SV340B, part of the B Series series, is a skid-steer loader with a rated output of 90 hp — putting it around the middle of its class for power. This model was introduced in 2024. It runs a hydrostatic transmission. It is aimed at jobs of around compact / mixed farm, with Loading, Yard and Materials handling work in mind. Detailed specifications in both UK and US units follow below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Top speed

12.4 km/h

Catalogue coverage

Variants represented

Richest spec table

25 rows

Recorded power

90 hp

Production years

2024

Verified variants

1 linked source document displayed

Hover a source tag to verify

Engine

Rated power67 kW (90 hp)OEM

Emissions stageStage VEPA cert

Engine make/modelFPT F5B FL413DOEM

Cylinders4OEM

Displacement3.4 LOEM

Maximum Torque383 NmOEM

Capacities

Fuel tank96.5 LOEM

Oil Capacity8.5 LOEM

Coolant Capacity19.0 LOEM

Hydraulic System Capacity44.5 LOEM

Hydraulic Reservoir Capacity22.7 LOEM

Transmission

Transmission typeHydrostatic transmissionOEM

Performance

Top speed12.4 km/hOEM

Top speed (Two)18.5 km/hOEM

Rear lift capacity1545 kgOEM

Tipping load3090 kgOEM

Boom breakout force3100 kgOEM

Bucket breakout force4330 kgOEM

PTO & Hydraulics

Hydraulic flow91.5 L/minOEM

Hydraulic flow (High-Flow)146.5 L/minOEM

Dimensions

Length3025 mmOEM

Width1530 mmOEM

Height2040 mmOEM

Height (Boom Raised)4110 mmOEM

Wheelbase1320 mmOEM

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
