Tractor · 1985Unverified

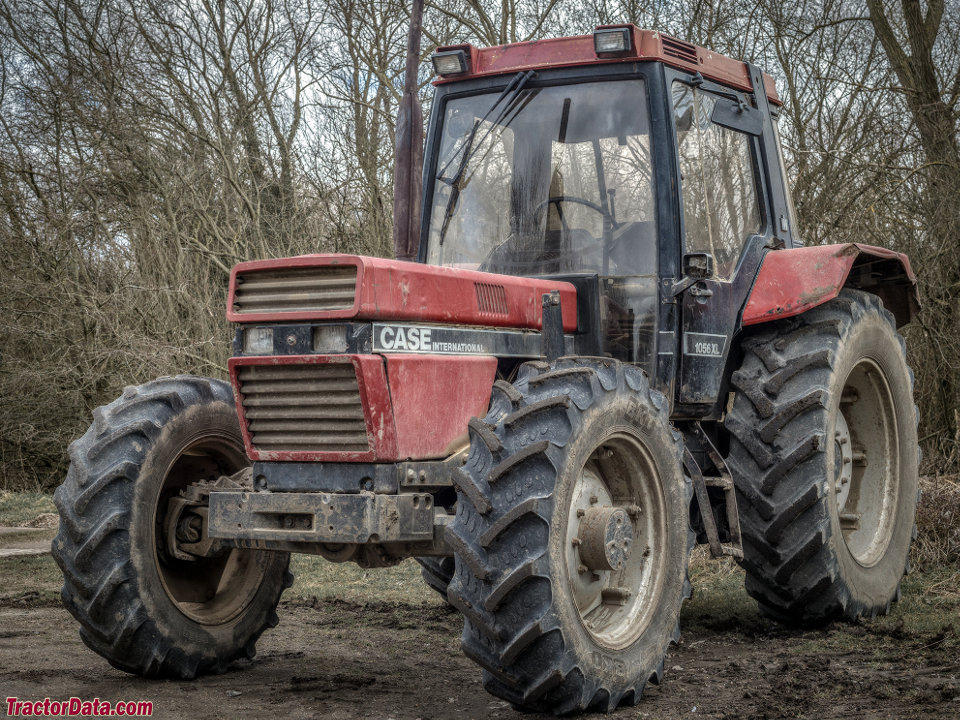

CaseIH 1056 XL

Name: CaseIH 1056 XL
Brand: CaseIH

CaseIH 1056 XL — Utility tractor · 105 hp. Reference specifications; pending source verification.

The CaseIH 1056 XL is a tractor model with a rated power of 105 hp, a mid-range figure for its class. Produced between 1985 and 1992, it features a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. Its operating weight is listed as 9634 to 10470 pounds. The CaseIH 1056 XL is suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Weight

9634 to 10470 pounds

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

105 hp

Recorded weight

4369 kg

Transmissions

16-speed

Production years

1985-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Neuss, GermanyReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with heat. Air-conditioning optional.Reference

Engine

International Harvester 5.9L 6-cyl dieselReference

Engine78.3 kWReference

International Harvester D-358Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke98 x 129 mmReference

Power78.3 kWReference

Fuel systemdirect injectionReference

Rated RPM2300Reference

Torque371.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity12.0 LReference

Oil change200 hReference

Transmission

16-speedReference

TransmissionIH-Total-synchronReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

Pressure175.0 barReference

Valvesup to 3Reference

Pump flow45.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift4323 kgReference

Rear lift5230 kgReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase262 cmReference

4WD Wheelbase259 cmReference

Weight9634 to 10470 poundsReference

Front tire7.50-20Reference

Rear tire18.9R38 (2WD)Reference

Standard tires (ag)Front: 7.50-20. Rear: 18.9R38 (2WD)Reference

Standard tires (ag)Front: 13.6R28. Rear: 18.4R38 (4WD)Reference

2WD Length419 cmReference

4WD Length425 cmReference

Width230 cmReference

Height (cab)279 cmReference

2WD Weight4369 kgReference

4WD Weight4749 kgReference

2WD Clearance (front axle)53 cmReference

4WD Clearance (front axle)45 cmReference

Front tread152 to 191 cmReference

Front tread163 to 193 cmReference

Rear tread170 to 220 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Speeds

With 16.9R38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
