Tractor · 1991Unverified

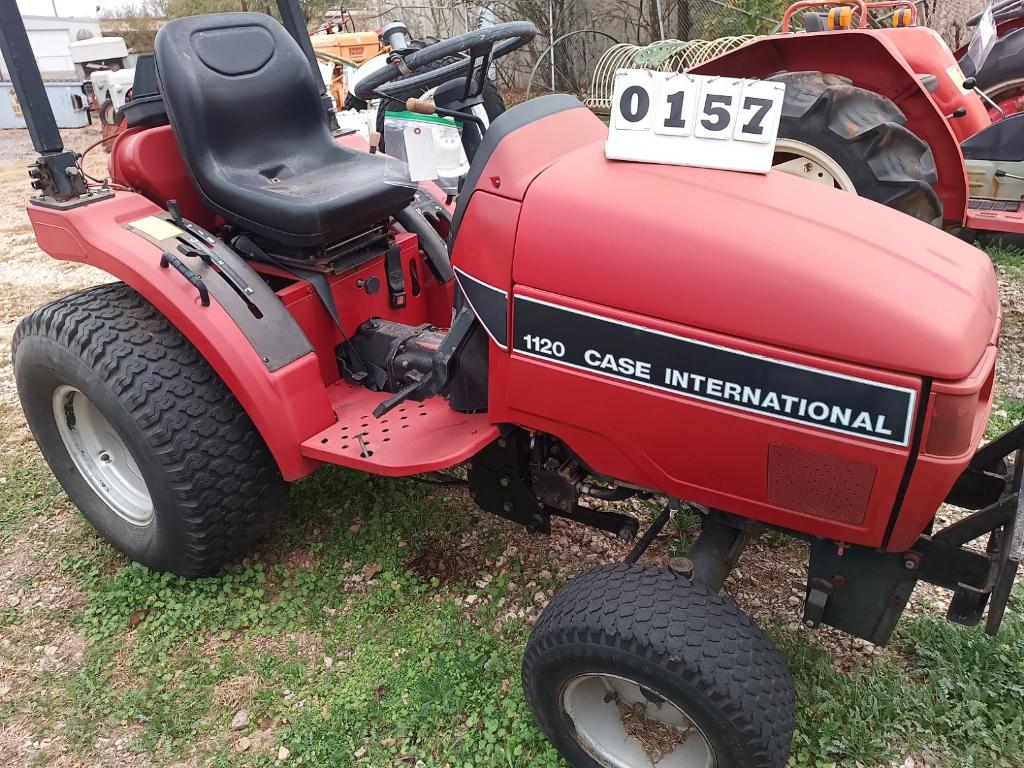

CaseIH 1120

Name: CaseIH 1120
Brand: CaseIH

CaseIH 1120 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.

The CaseIH 1120 is a compact tractor model with a rated output of 17 hp, produced in 1991. It features a 3-cylinder diesel liquid-cooled engine, powering four-wheel drive via a hydrostatic transmission. The listed weight of the tractor ranges from 1380 to 1480 pounds, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

17 hp

Weight

1380 to 1480 pounds

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

17 hp

Recorded weight

625 kg

Transmissions

6-speed gear

Production years

1991-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCaseIHReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price was $11,600 in 1991Reference

Two- or four-wheel driveReference

Power steeringReference

Mechanical drum brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 1.1L 3-cyl dieselReference

Fuel tank20.1 LReference

Engine14.2 kWReference

MitsubishiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke76 x 78 mmReference

Power14.2 kWReference

Fuel systemindirect injectionReference

Rated RPM2500Reference

Starter volts12Reference

Transmission

6-speed gearReference

hydrostaticReference

TypegearReference

Gears6 forward and 2 reverseReference

Three gears (1-3) plus reverse (R) in two ranges (low/high).Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

Gear PTO (claimed)12.3 kWReference

Hydro PTO (claimed)11.2 kWReference

Typeopen centerReference

Pressure147.1 barReference

Pump flow20.4 lpmReference

Steering flow12.1 lpmReference

Rear TypeIReference

Rear lift (at ends)635 kgReference

Rear lift (at 24"/610mm)444 kgReference

Rear PTOtransmissionReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase147 cmReference

Weight1380 to 1480 poundsReference

Front tire4.00-12Reference

2WD Rear tire9.5-16Reference

2WD Standard tires (ag)Front: 4.00-12. Rear: 9.5-16Reference

4WD Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference

2WD Lawn/turf front20x8.00-10Reference

4WD Lawn/turf front23x8.50-152Reference

Lawn/turf rear33x12.50-15Reference

Length270 cmReference

Width117 cmReference

Height (ROPS)200 cmReference

Shipping weight625 kgReference

Shipping weight671 kgReference

2WD Front tread84 cmReference

4WD Front tread93 cmReference

Rear tread92 to 98 cmReference

CaseIH 1120 attachments

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

60" Mower deck

Typemid-mount Case IH M160Reference

Type3-bladeReference

Cutting width152 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
