Tractor · 1991Unverified

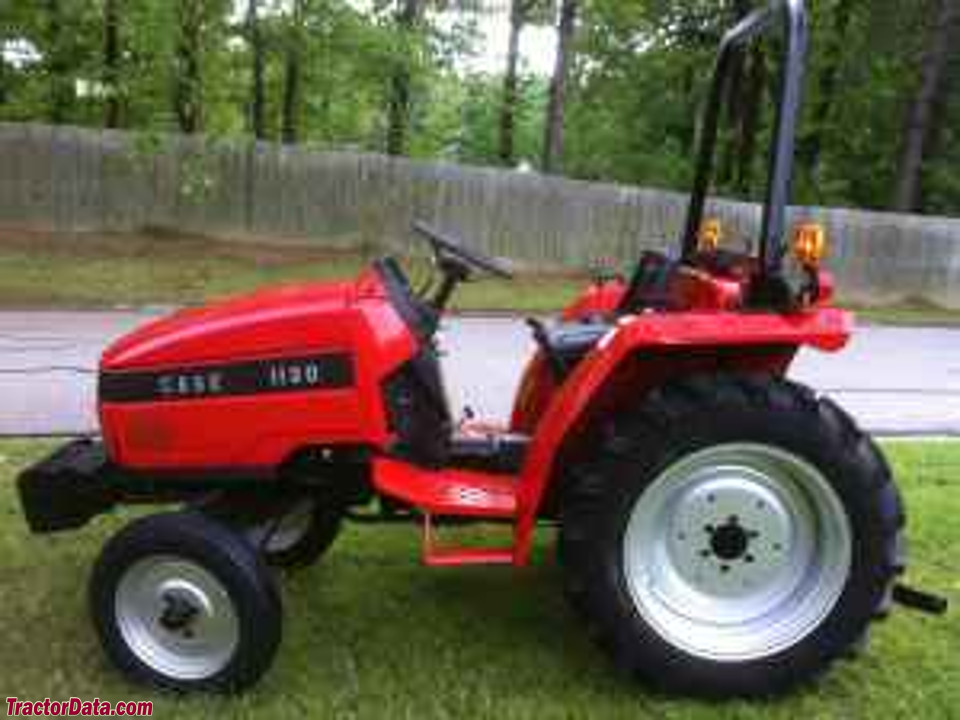

CaseIH 1130

Name: CaseIH 1130
Brand: CaseIH

CaseIH 1130 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The CaseIH 1130 is a tractor rated at 20 hp — making it one of the more compact options in its class. It was manufactured in 1991. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 907 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

907 kg

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

20 hp

Recorded weight

907 kg

Transmissions

9-speed gear

Production years

1991-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCaseIHReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price was $13,000 in 1991Reference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 1.2L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine17.2 kWReference

MitsubishiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.2 LReference

Bore/Stroke82 x 78 mmReference

Power17.2 kWReference

Fuel systemdirect injectionReference

Rated RPM2500Reference

Starter volts12Reference

Transmission

9-speed gearReference

hydrostaticReference

TypegearReference

Gears9 forward and 3 reverseReference

Three gears (1-3) plus reverse (R) in three ranges.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)14.9 kWReference

Hydro PTO (claimed)13.4 kWReference

Typeopen centerReference

Pressure147.1 barReference

Valves1Reference

Pump flow27.3 lpmReference

Steering flow12.1 lpmReference

Rear TypeIReference

Rear lift (at ends)1000 kgReference

Rear lift (at 24"/610mm)749 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase165 cmReference

Weight907 kgReference

Front tire5.00-15Reference

2WD Rear tire9.5-24Reference

Weight476 kgReference

2WD Standard tires (ag)Front: 5.00-15. Rear: 9.5-24Reference

4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

2WD Lawn/turf front23x8.50-12Reference

4WD Lawn/turf front25x10.50-15Reference

Lawn/turf rear38x14.00-20Reference

Length292 cmReference

Width129 cmReference

Height (ROPS)212 cmReference

2WD Front tread97 to 106 cmReference

4WD Front tread109 cmReference

Rear tread105 to 112 cmReference

CaseIH 1130 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

Case IH H180 Backhoe

Backhoe typeCase IH H180 BackhoeReference

Digging depth254 cmReference

Reach from pivot330 cmReference

Loading height170 cmReference

Bucket Rotation175°Reference

Swing Arc180°Reference

Bucket force1134 kgReference

Dipperstick force498 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
