Tractor · 1991Unverified

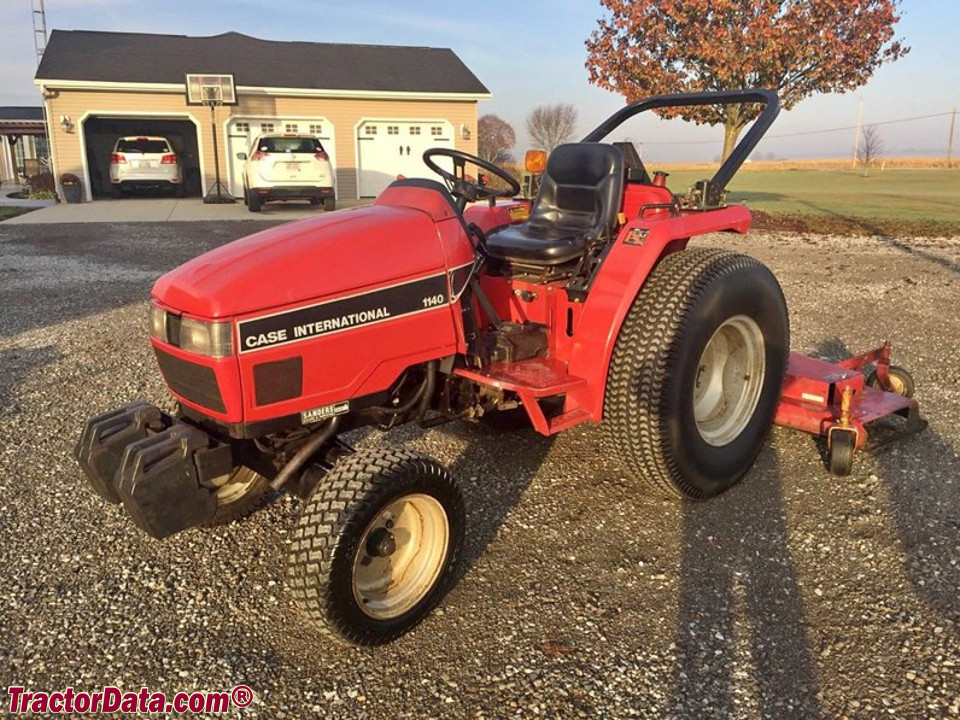

CaseIH 1140
CaseIH 1140 — Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
934 kg
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price was $14,000 in 1991Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine20.1 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power20.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
Three gears (1-3) plus reverse (R) in three ranges.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)17.2 kWReference
Hydro PTO (claimed)15.7 kWReference
Typeopen centerReference
Pressure147.1 barReference
Valves1Reference
Pump flow27.3 lpmReference
Steering flow12.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear lift (at 24"/610mm)749 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase170 cmReference
Weight934 kgReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
Weight476 kgReference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 6.70-15. Rear: 11.2-24Reference
2WD Lawn/turf front25x10.50-15Reference
4WD Lawn/turf front27x10.50-15Reference
Lawn/turf rear41x14.00-20Reference
Length292 cmReference
Width136 cmReference
Height (ROPS)214 cmReference
2WD Front tread96 to 127 cmReference
4WD Front tread106 cmReference
Rear tread107 to 139 cmReference
CaseIH 1140 attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
Case IH H180 Backhoe
Backhoe typeCase IH H180 BackhoeReference
Digging depth254 cmReference
Reach from pivot330 cmReference
Loading height170 cmReference
Bucket Rotation175°Reference
Swing Arc180°Reference
Bucket force1134 kgReference
Dipperstick force498 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
