Tractor · 1985Unverified

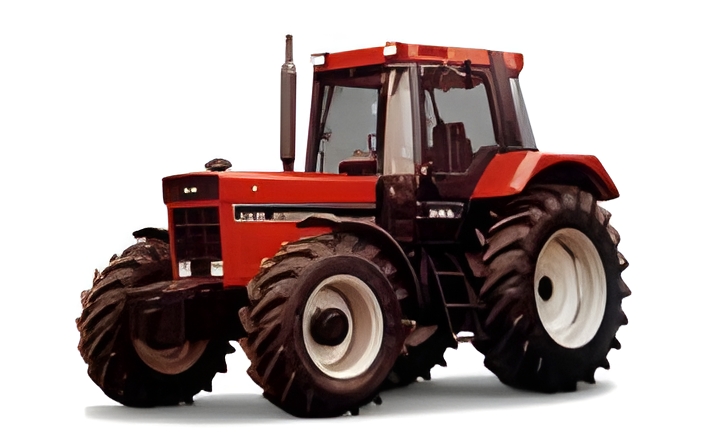

CaseIH 1255 XL

Name: CaseIH 1255 XL
Brand: CaseIH

CaseIH 1255 XL — 55 Series · 125 hp. Reference specifications; pending source verification.

The CaseIH 1255 XL is a tractor model with a rated power of 125 hp, placing it at the higher end of its class. It was manufactured from 1985 to 1994. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 11155 to 12521 pounds, making it suitable for operations of up to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Weight

11155 to 12521 pounds

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

125 hp

Recorded weight

5059 kg

Transmissions

12-speed fully synchronized

Production years

1985-1994

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Neuss, GermanyReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Engine

International Harvester 5.9L 6-cyl dieselReference

Engine93.2 kWReference

International Harvester DT-358Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke98 x 129 mmReference

Power93.2 kWReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Torque455.6 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity12.5 LReference

Coolant capacity32.0 LReference

Transmission

12-speed fully synchronizedReference

20-speed fully synchronizedReference

Typefully synchronizedReference

Gears12 forward and 5 reverseReference

Oil capacity34.0 LReference

Oil capacity40.0 LReference

Six gears (1-6) in two ranges (low/high), plus reverse range.Reference

Gears20 forward and 9 reverseReference

Six gears (1-6) in two ranges (low/high), plus reverse range with a underdrive for gears 1 and 2 in both ranges.Reference

Capacities

Fuel199.8 LReference

Front axle9.0 LReference

PTO & Hydraulics

Pressure171.5 barReference

Valvesup to 2Reference

Pump flow41.6 lpmReference

Rear TypeIII/IIReference

Controlposition and draft controlReference

Rear lift4799 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase279 cmReference

Weight11155 to 12521 poundsReference

Front tire7.50-20Reference

Rear tire18.9R38 (2WD)Reference

Standard tires (ag)Front: 7.50-20. Rear: 18.9R38 (2WD)Reference

Standard tires (ag)Front: 13.6R28. Rear: 18.4R38 (4WD)Reference

Length480 cmReference

Height (cab)293 cmReference

2WD Weight5059 kgReference

4WD Weight5679 kgReference

2WD Clearance (front axle)52 cmReference

4WD Clearance (front axle)46 cmReference

2WD Front tread151 to 181 cmReference

4WD Front tread173 to 194 cmReference

Rear tread181 to 212 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
