Tractor · 1985Unverified

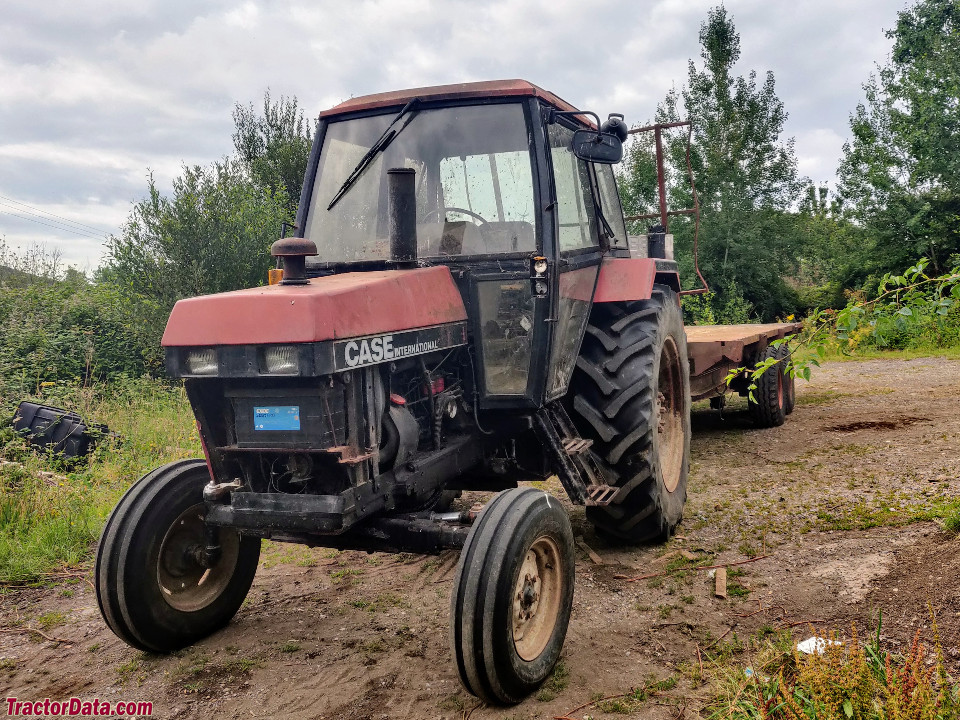

CaseIH 1394
CaseIH 1394 — 94 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
6520 to 7160 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Original price was $22,000 in 1988Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
Cab with air-conditioning optional.Reference
Engine
Case 3.6L 4-cyl dieselReference
Fuel tank71.9 LReference
Fuel tank99.9 LReference
Engine57.4 kWReference
CaseReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 114 mmReference
Power57.4 kWReference
Compression16:1Reference
Rated RPM2200Reference
Torque272.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity7.4 LReference
Coolant capacity14.2 LReference
Transmission
12-speed synchromeshReference
12-speed partial power shiftReference
TypesynchromeshReference
Gears12 forward and 4 reverseReference
Oil capacity27.4 LReference
TransmissionHydra-ShiftReference
Typepartial power shiftReference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
Typeopen centerReference
Pressure175.8 barReference
Valves1 to 3Reference
Total flow29.1 lpmReference
Total flow57.9 lpmReference
Steering flow29.1 lpmReference
Steering press.103.4 barReference
Rear TypeII/IReference
Rear lift (at ends)2268 kgReference
Rear lift (at 24"/610mm)1356 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2050Reference
Engine RPM1000@2050Reference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase214 cmReference
Weight6520 to 7160 poundsReference
Front tire7.50-16Reference
Rear tire13.6-36Reference
2WD Ag front7.50-16Reference
2WD Ag front11.2-24Reference
4WD Ag front12.4-24Reference
Ag rear13.6-36Reference
Ag rear16.9-30Reference
Ag rear16.9-34Reference
Ag rear13.6-38Reference
Length363 cmReference
Width177 cmReference
Height (cab)254 cmReference
2WD Ground clearance38 cmReference
4WD Ground clearance34 cmReference
2WD Front tread132 to 182 cmReference
4WD Front tread152 to 193 cmReference
Rear tread142 to 203 cmReference
2WD synchro2957 kgReference
2WD Hydra-Shift3036 kgReference
4WD synchro3166 kgReference
4WD Hydra-Shift3247 kgReference
Max Drawbar1360 kgReference
2WD Max front axle2041 kgReference
4WD Max front axle2268 kgReference
Max rear axle4082 kgReference
1394 Serial Numbers
Location:Main frame on right sideReference
198511502001Reference
198611504635Reference
198711506453Reference
198811508682Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Charging amps65 (heavy duty)Reference
Battery CCA420Reference
Battery CCA550 (heavy duty)Reference
Battery volts12Reference
Battery AH96Reference
Battery AH128 (heavy duty)Reference
Capacities
Max capacity4536 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
