Tractor · 1985Unverified

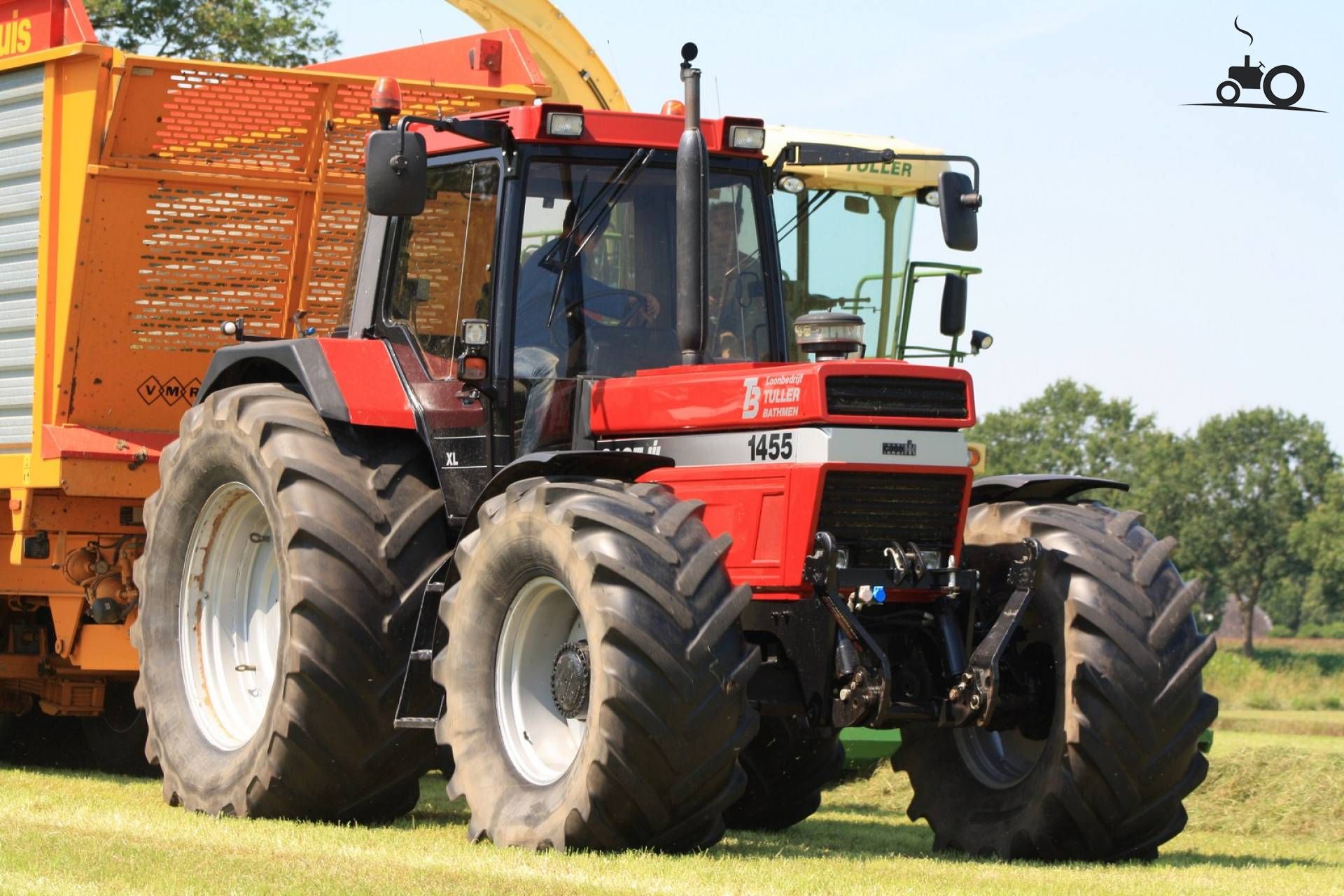

CaseIH 1455 XL
CaseIH 1455 XL — 55 Series · 145 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
5215 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Neuss, GermanyReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Cab standard with heater.Reference
Engine
International Harvester 6.6L 6-cyl dieselReference
Engine108.1 kWReference
International Harvester DT-402Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke100 x 140 mmReference
Power108.1 kWReference
Fuel systemdirect injectionReference
Rated RPM2200Reference
Torque528.8 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.5 LReference
Coolant capacity33.0 LReference
Transmission
12-speed fully synchronizedReference
20-speed fully synchronizedReference
TransmissionZFReference
Typefully synchronizedReference
Gears12 forward and 5 reverseReference
Oil capacity40.0 LReference
Six gears (1-6) in two ranges (low/high), plus reverse range.Reference
Gears20 forward and 9 reverseReference
Six gears (1-6) in two ranges (low/high), plus reverse range with a underdrive for gears 1 and 2 in both ranges.Reference
Capacities
Fuel199.8 LReference
Front axle9.0 LReference
PTO & Hydraulics
Pressure171.5 barReference
Valvesup to 2Reference
Pump flow41.6 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift5887 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase279 cmReference
Weight5215 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Length480 cmReference
Height (cab)293 cmReference
Clearance (front axle)46 cmReference
Front tread173 to 194 cmReference
Rear tread181 to 212 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
