Tractor · 1985Unverified

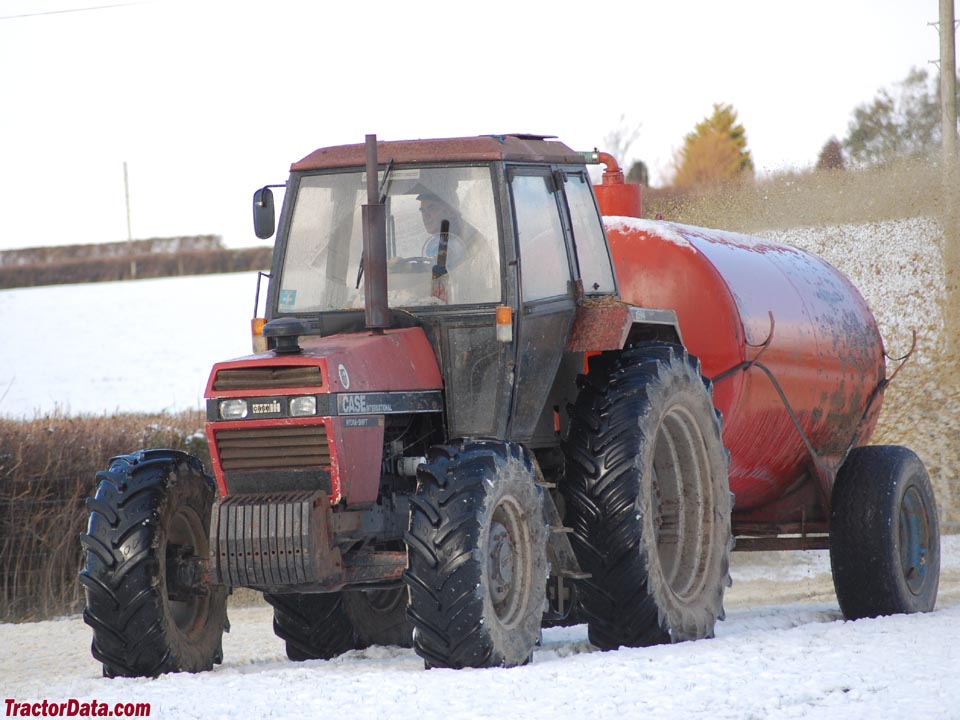

CaseIH 1594

Name: CaseIH 1594
Brand: CaseIH

CaseIH 1594 — Utility tractor · 86 hp. Reference specifications; pending source verification.

The CaseIH 1594 is a tractor model with an approximate power rating of 86 horsepower, situated in the mid-range of its class. Manufactured between 1985 and 1988, this model features a 6-cylinder diesel liquid-cooled engine and a mechanical front-wheel drive system with a hydrostatic transmission. Its operating weight is listed as 4213 kg, while it is capable of handling operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Max power

53.8 kW

Weight

4213 kg

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

86 hp

Recorded weight

4213 kg

Transmissions

12-speed synchromesh

Production years

1985-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Original price$26,000 (1988)Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Differential hydraulic wet disc brakesReference

ROPS or cab.Reference

Engine

Case 5.4L 6-cyl dieselReference

Fuel tank136.3 LReference

Engine72.3 kWReference

Drawbar (claimed)55.2 kWReference

Drawbar (tested)53.8 kWReference

CaseReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.4 LReference

Bore/Stroke100 x 114 mmReference

Power72.3 kWReference

Air cleanerdual paper elements with pre-cleanerReference

Compression16:1Reference

Rated RPM2300Reference

Torque329.1 NmReference

Torque RPM1425Reference

Starter volts12Reference

Oil capacity12.5 LReference

Coolant capacity15.3 LReference

Power at rated engine speed64.1 kWReference

Max power53.8 kWReference

Power at rated engine speed63.8 kWReference

Max power51.7 kWReference

Transmission

12-speed synchromeshReference

12-speed partial power shiftReference

TypesynchromeshReference

Gears12 forward and 4 reverseReference

Oil capacity31.8 LReference

TransmissionHydra-ShiftReference

Typepartial power shiftReference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

PTO (tested)64.1 kWReference

Typeopen centerReference

Pressure179.3 barReference

Valves2Reference

Total flow39.7 lpmReference

Total flow76.1 lpmReference

Steering flow29.1 lpmReference

Steering press.127.6 barReference

Rear TypeIIReference

Rear lift (at ends)3374 kgReference

Rear lift (at 24"/610mm)2853 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed60.3 kWReference

Power at rated PTO speed61.1 kWReference

Dimensions

Wheelbase254 cmReference

Weight4213 kgReference

Front tire10.00-16Reference

Rear tire16.9-38Reference

Ag front10.00-16 (2WD)Reference

Ag front13.6-24 (4WD)Reference

Ag front13.6-28 (4WD)Reference

Ag rear16.9-38Reference

Ag rear18.4-34Reference

Ag rear14.9-24Reference

Ag rear18.6-38Reference

Length416 cmReference

Width198 cmReference

Height (cab)271 cmReference

Ground clearance40 cmReference

Ground clearance38 cmReference

Front tread142 to 203 cmReference

Front tread152 to 193 cmReference

Rear tread142 to 213 cmReference

Operating4213 kgReference

Ballasted5084 kgReference

Max Drawbar1496 kgReference

Max front axle3402 kgReference

Max front axle3628 kgReference

Max rear axle5443 kgReference

1594 Serial Numbers

Location:On right side of main frameReference

198511526001Reference

198611526518Reference

198711527297Reference

198811528442Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps45Reference

Charging amps65 (heavy duty)Reference

Battery CCA420Reference

Battery CCA550 (heavy duty)Reference

Battery volts12Reference

Battery AH96Reference

Battery AH128 (heavy duty)Reference

Capacities

Max capacity6123 kgReference

Test results

NTTL 1546: diesel synchromesh 2WDReference

NTTL 1547: diesel Hydra-Shift 2WDReference

Diesel synchromesh 2WDOctober 24 - November 2, 1984Link: Nebraska Tractor Test 1546 fileReference

PTO performanceReference

Fuel use19.7 l/hourReference

Fuel use17.8 l/hourReference

Drawbar performanceReference

Fuel use19.3 l/hourReference

Gear 7 used for power test.Reference

Max pull3778 kgReference

Gear 4 used for pull test.Reference

Diesel Hydra-Shift 2WDOctober 23 - 30, 1984Link: Nebraska Tractor Test 1547 fileReference

Fuel use18.5 l/hourReference

Max pull3718 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
