Tractor · 1985Unverified

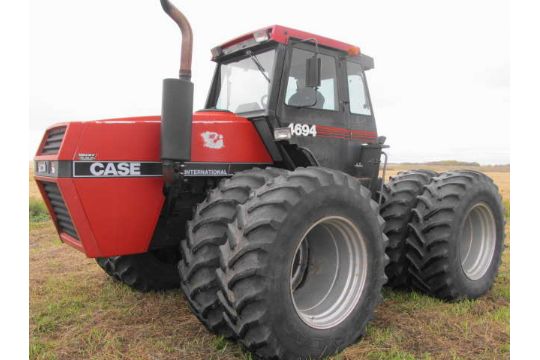

CaseIH 1694

Name: CaseIH 1694
Brand: CaseIH

CaseIH 1694 · 99 hp. Reference specifications; pending source verification.

The CaseIH 1694 is a tractor with an engine rating of approximately 99 hp, which falls within the mid-range of its class. Produced from 1985 to 1988, the 1694 is equipped with a 6-cylinder diesel liquid-cooled engine and four-wheel drive, featuring a hydrostatic transmission. Its operating weight is 4345 kg, with a suitable working range of 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Weight

4345 kg

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

99 hp

Recorded weight

4345 kg

Transmissions

12-speed partial power shift

Production years

1985-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Disc brakesReference

Engine

Case 5.4L 6-cyl dieselReference

Fuel tank135.9 LReference

Engine83.5 kWReference

CaseReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.4 LReference

Bore/Stroke100 x 114 mmReference

Power83.5 kWReference

Compression16:1Reference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Oil capacity12.5 LReference

Coolant capacity15.3 LReference

Transmission

12-speed partial power shiftReference

TransmissionHydra-ShiftReference

Typepartial power shiftReference

Gears12 forward and 4 reverseReference

Oil capacity31.8 LReference

PTO & Hydraulics

PTO (claimed)73.8 kWReference

Pressure179.3 barReference

Rear valves1 to 3Reference

Total flow39.7 lpmReference

Total flow76.1 lpmReference

Steering flow29.1 lpmReference

Steering press.127.6 barReference

Rear TypeIIReference

Rear lift (at ends)3374 kgReference

Rear lift (at 24"/610mm)2853 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase254 cmReference

Weight4345 kgReference

Front tire13.6-28Reference

Rear tire16.9-38Reference

Ag front13.6-28Reference

Ag front13.6-24Reference

Ag rear16.9-38Reference

Width200 cmReference

Height (cab)274 cmReference

Ground clearance41 cmReference

Front tread152 to 193 cmReference

Rear tread142 to 213 cmReference

4345 kgReference

Max Drawbar1496 kgReference

Max front axle3628 kgReference

Max rear axle5443 kgReference

Electrical

Charging systemalternatorReference

Charging amps45Reference

Charging amps65 (heavy duty)Reference

Battery CCA420Reference

Battery CCA550 (heavy duty)Reference

Battery volts12Reference

Battery AH96Reference

Battery AH128 (heavy duty)Reference

Capacities

Max capacity6123 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
