Tractor · 1988Unverified

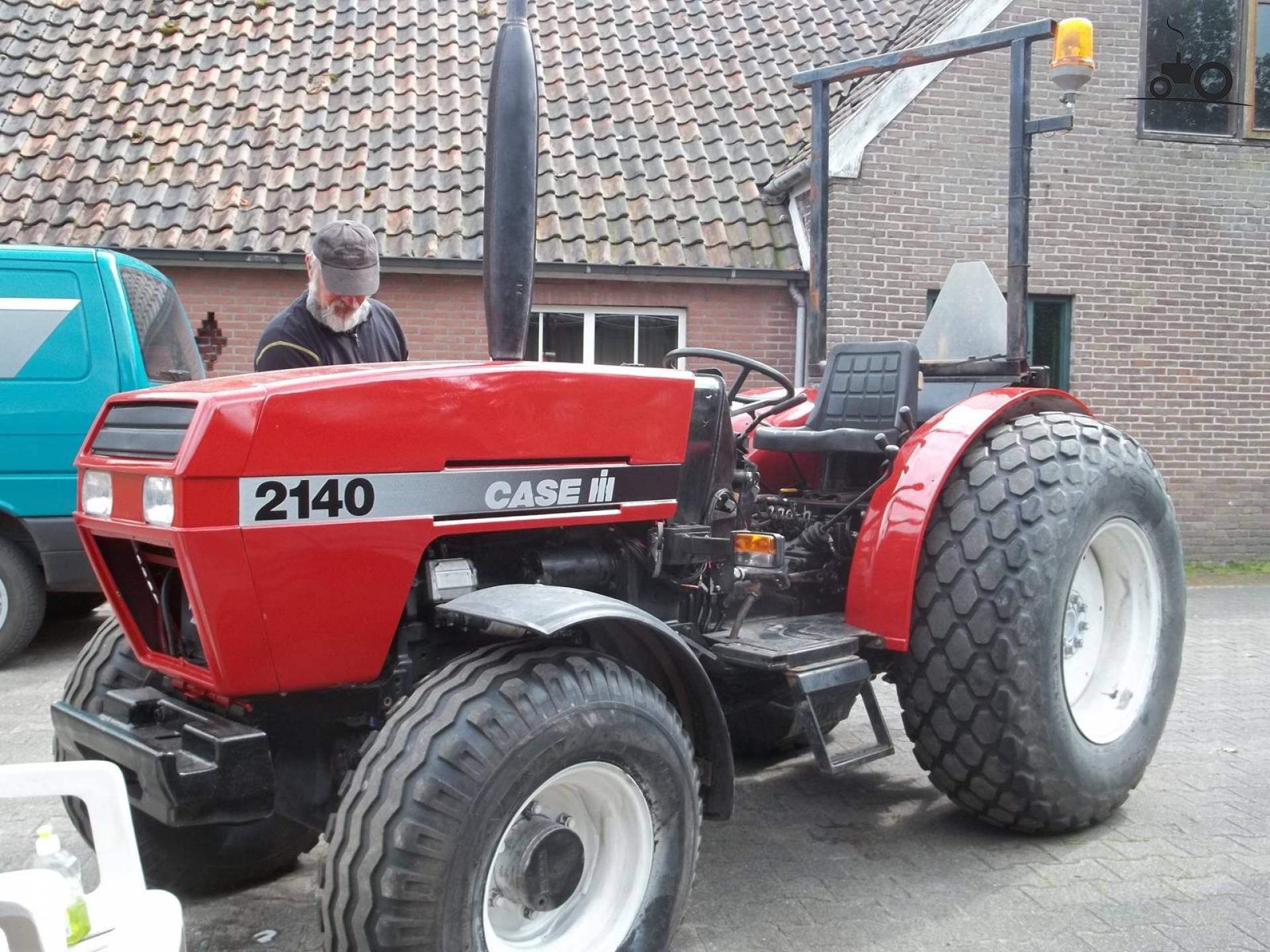

CaseIH 2140
CaseIH 2140 — Orchard/Vineyard tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4365 to 4784 pounds
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerCarraroReference
Orchard/Vineyard tractorReference
Original price was $17,000 in 1991Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Two-post forward-folding ROPS. Cab optional.Reference
Variants
2140VvineyardReference
2140EnarrowReference
Engine
SLH 4.0L 4-cyl dieselReference
Fuel tank60.0 LReference
SLH 1000.4.AReference
dieselReference
4-cylinderReference
air-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Air cleanerdual dry elementReference
Compression17:1Reference
Rated RPM2350Reference
Torque233.1 NmReference
Torque RPM1200Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.2 LReference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.203 mmReference
Transmission
8-speed partially synchronizedReference
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and reverseReference
Clutch280mm dry discReference
2WD Oil capacity36.0 LReference
4WD Oil capacity38.0 LReference
Four synchronized gears (1-4) in two ranges (I/II) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range.Reference
Gears12 forward and reverseReference
Four synchronized gears (1-4) in three ranges (I/II/III) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow59.0 lpmReference
Rear TypeI/IIReference
Controlposition and draft controlReference
2134V Rear lift (at ends)2528 kgReference
2134E Rear lift (at ends)2478 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000 (1.375)Reference
Engine RPM540@2115Reference
Engine RPM750@2015Reference
Engine RPM1000@2105Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase207 cmReference
Weight4365 to 4784 poundsReference
Front tire7.50-16Reference
2140V 2WD Rear tire13.6R28Reference
2140V 2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6R28Reference
2140E 2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9R28Reference
2140V 4WD Standard tires (ag)Front: 8.25-16. Rear: 13.6R28Reference
2140E 4WD Standard tires (ag)Front: 7.50-18. Rear: 13.6R28Reference
2140V Length348 cmReference
2140E Length350 cmReference
2140V Width121 cmReference
2140E Width136 cmReference
Height (hood)130 cmReference
Height (ROPS)248 cmReference
2WD Ground clearance34 cmReference
4WD Ground clearance25 cmReference
2140V 2WD1979 kgReference
2140V 4WD2140 kgReference
2140E2170 kgReference
2140 Serial Numbers
Location:Serial number plate on the right side of tractor's console.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 13.6-28 rear tires. Reverse speeds are 15% slower than forward.Reference
