Tractor · 1984Unverified

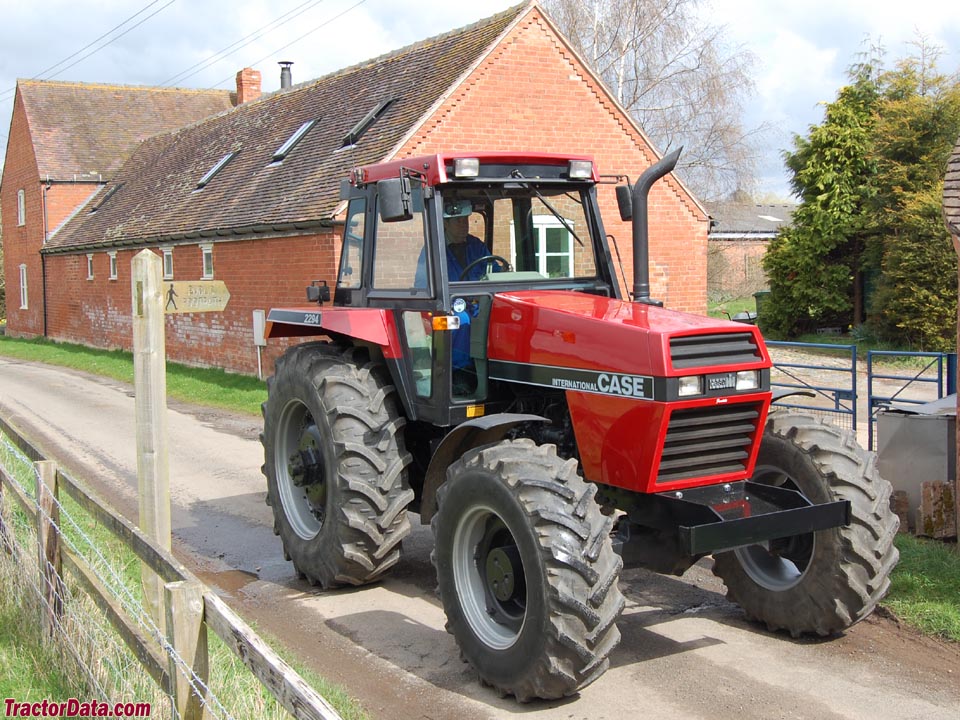

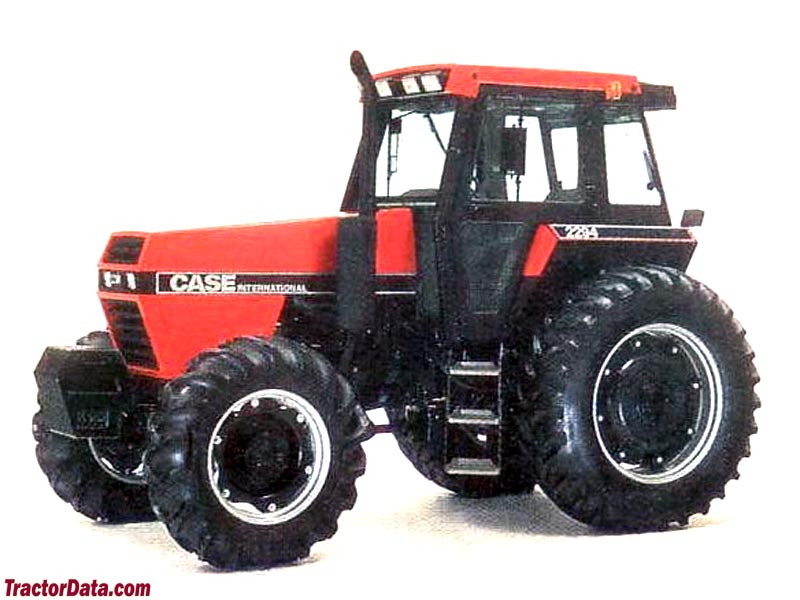

CaseIH 2294

Name: CaseIH 2294
Brand: CaseIH

CaseIH 2294 — Row-Crop tractor · 132 hp. Reference specifications; pending source verification.

The CaseIH 2294 is a tractor with a rated output of 132 hp, categorising it among the higher-powered models in its class. It was manufactured from 1984 to 1988. The 6-cylinder turbocharged diesel liquid-cooled engine is connected to a powershift transmission, which drives the four-wheel drive system. The listed weight for the tractor is 11070 to 14390 pounds, making it suitable for tasks involving 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

132 hp

Max power

86.0 kW

Weight

11070 to 14390 pounds

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

132 hp

Transmissions

12-speed three-speed power shift

Production years

1984-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Four-post ROPS. Silent Guardian cab optional with air-conditioning.Reference

Engine

Case 8.3L 6-cyl dieselReference

Engine114.8 kWReference

Drawbar (claimed)86.5 kWReference

Drawbar (tested)86.0 kWReference

CaseReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Power114.8 kWReference

Compression15.8:1Reference

Rated RPM2100Reference

Starter volts12Reference

Oil capacity22.7 LReference

Coolant capacity36.0 LReference

Power at rated engine speed98.4 kWReference

Max power86.0 kWReference

Transmission

12-speed three-speed power shiftReference

Typethree-speed power shiftReference

Gears12 forward and 3 reverseReference

Oil capacity94.6 LReference

Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.Reference

PTO & Hydraulics

PTO (claimed)96.9 kWReference

PTO (tested)98.4 kWReference

Hydraulic system94.6 LReference

Typeclosed centerReference

Capacity94.6 LReference

Pressure155.1 barReference

Valves2 to 4Reference

Pump flow87.1 lpmReference

Steering flow30.3 lpmReference

Steering press.137.9 barReference

Rear TypeIIReference

Rear lift (at 24"/610mm)2993 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540/1000Reference

Capacities

Fuel246.0 LReference

Fuel94.6 LReference

Max capacity7529 kgReference

Dimensions

Wheelbase264 cmReference

Wheelbase279 cmReference

Weight11070 to 14390 poundsReference

Front tire11.00x16Reference

Rear tire18.4-38 (2WD)Reference

Standard tires (ag)Front: 11.00x16. Rear: 18.4-38 (2WD)Reference

Standard tires (ag)Front: 14.9-28. Rear: 18.4-38 (4WD)Reference

Ag rear23.1x34Reference

Ag rear16.9x38Reference

Ag rear20.8x38Reference

Bar rear axle88 by 2438 mmReference

Bar rear axle88 by 3048 mmReference

Rear tread152 to 223 cmReference

Rear tread152 to 284 cmReference

Shipping5021 kgReference

Operating6527 kgReference

2294 Serial Numbers

Location:Inside cab or on right-front frameReference

19849931808Reference

19859938113Reference

19869941577Reference

19879945448Reference

19889949350Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps72Reference

Charging amps105Reference

Battery volts12Reference

Test results

Diesel 12 speed 2WDJune 1 - 12, 1984Link: Nebraska Tractor Test 1526 fileReference

PTO performanceReference

Fuel use33.7 l/hourReference

Drawbar performanceReference

Fuel use33.3 l/hourReference

Gear 3-2 used for power test.Reference

Max pull5904 kgReference

Gear 2-1 used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
