Tractor · 1986Unverified

CaseIH 245

Name: CaseIH 245
Brand: CaseIH

CaseIH 245 — 200 Series · 21 hp. Reference specifications; pending source verification.

The CaseIH 245 is a tractor model with a rated output of 21 hp. It was produced from 1986 to 1990. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and a 9-speed gearbox, driving through four-wheel drive. Its listed weight is 866 kg, with a capacity for approximately 200 acres of work.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

21 hp

Weight

866 kg

Catalogue coverage

Variants represented

Richest spec table

109 rows

Recorded power

21 hp

Recorded weight

866 kg

Transmissions

9-speed constant mesh

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCaseIHReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price was $11,000 in 1990Reference

Two- or four-wheel driveReference

SteeringmanualReference

Steeringpower optionalReference

Mechanical drum brakesReference

Two-post folding ROPS. Optional sun shade.Reference

Engine

Mitsubishi 1.0L 3-cyl dieselReference

Engine (net)15.7 kWReference

MitsubishiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke73 x 78 mmReference

Power (net)15.7 kWReference

Air cleanerdry cyclone typeReference

Rated RPM2700Reference

Starter volts12Reference

Oil capacity4.2 LReference

Coolant capacity4.9 LReference

Transmission

9-speed constant meshReference

9-speed synchromeshReference

Typeconstant meshReference

Gears9 forward and 3 reverseReference

Three gears in each of high, medium, low, and reverse ranges.Reference

TypesynchromeshReference

Optional transmission. Three gears in each of high, medium, low, and reverse ranges.Reference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Hydraulic system25.0 LReference

Capacity25.0 LReference

Valves0 or 1Reference

Total flow17.0 lpmReference

Rear TypeIReference

Rear lift (at ends)680 kgReference

Rear lift (at 24"/610mm)510 kgReference

Rear PTOtransmissionReference

Rear PTOliveReference

Rear PTO Type540,1150Reference

Mid PTOliveReference

Mid PTO Type2400Reference

Capacities

Fuel20.8 LReference

Dimensions

Wheelbase167 cmReference

Weight866 kgReference

Front tire4.00-15Reference

Rear tire9.5-24Reference

Weight476 kgReference

2WD Ag front4.00-15Reference

4WD Ag front6-14Reference

Ag rear9.5-24Reference

2WD Ag front5.00-15Reference

4WD Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front24x8.50-14Reference

2WD Lawn/turf front5.90-15Reference

2WD Lawn/turf front20x8.00-10Reference

4WD Lawn/turf front7-14Reference

4WD Lawn/turf front27x8.50-15Reference

Lawn/turf rear11.2/10-24Reference

Lawn/turf rear355/80D20Reference

Lawn/turf rear13.6-16Reference

Length283 cmReference

2WD Width110 cmReference

4WD Width117 cmReference

2WD Shipping weight866 kgReference

Ground clearance35 cmReference

2WD Clearance (front axle)34 cmReference

4WD Clearance (front axle)27 cmReference

2WD Front tread90 to 101 cmReference

4WD Front tread97 cmReference

Rear tread87 to 102 cmReference

2WD Steering wheel136 cmReference

4WD Steering wheel137 cmReference

CaseIH 245 attachments

61" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

245 Serial Numbers

Location:Serial number plate on the front-right of the Case IH 245 tractor frame.Reference

198617636500Reference

198717637276Reference

19880009001Reference

19890009993Reference

19900010844Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps35Reference

Battery volts12Reference

Attachment overview

61" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

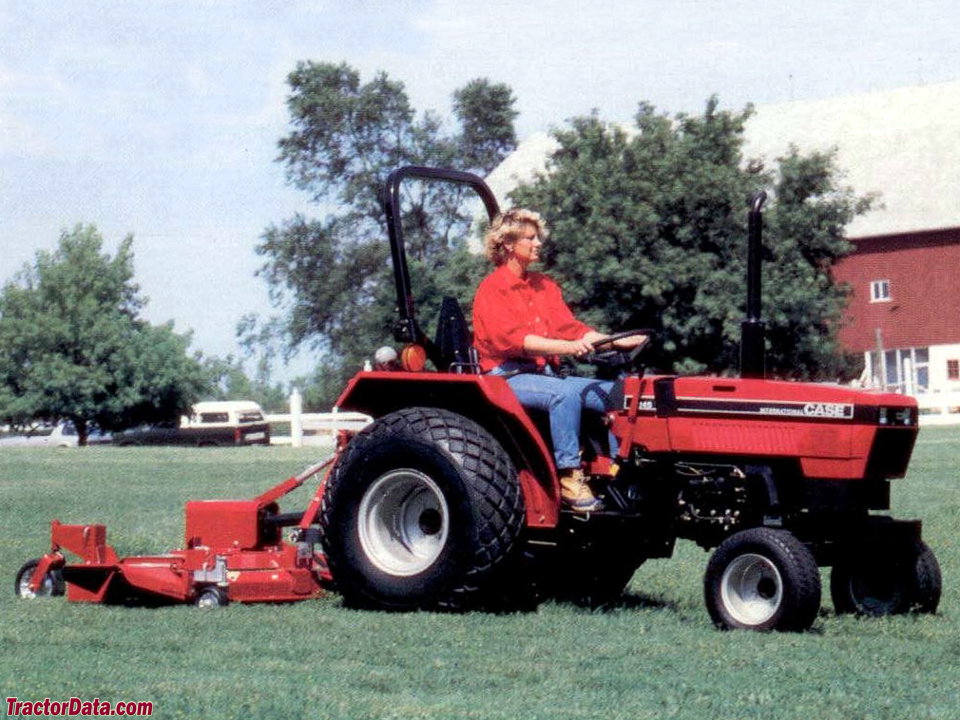

Three mid-mount mower decks were available, the 61MB used the rear PTO while the 61MS used the mid PTO. The 72 MS used the mid PTO. Also available was the 60FS (rear PTO) and 60FMS (mid PTO) front-mount mowers.Reference

Case IH H180 Backhoe

Backhoe typeCase IH H180 BackhoeReference

Digging depth254 cmReference

Reach from pivot330 cmReference

Loading height170 cmReference

Bucket Rotation175°Reference

Swing Arc180°Reference

Bucket force1134 kgReference

Dipperstick force498 kgReference

CaseIH 245 Height

ROPS207 cmReference

Speeds

With 9.5-24 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
