Tractor · 1984Unverified

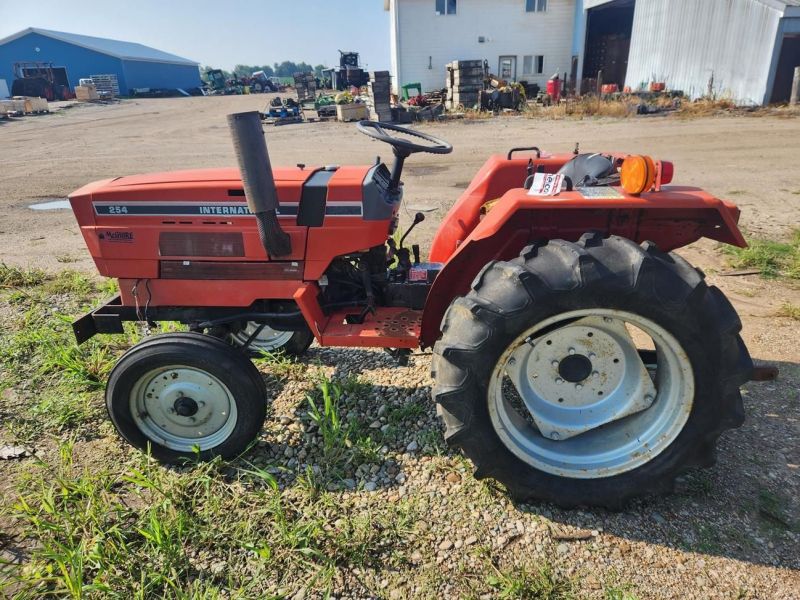

CaseIH 254
CaseIH 254 — 200 Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
884 kg
Hover a source tag to verify
Overview
DistributorCaseIHReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$8,300 (1986)Reference
Two- or four-wheel driveReference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
MitsubishiReference
dieselReference
3-cylinderReference
Displacement1.1 LReference
Transmission
9-speedReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)15.7 kWReference
Rear TypeIReference
Rear PTO Type540,1250Reference
Dimensions
Weight884 kgReference
Front tire5.00-15Reference
Rear tire11.2-24Reference
Ag front5.00-15Reference
Ag rear11.2-24Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
