Tractor · 1986Unverified

CaseIH 255

Name: CaseIH 255
Brand: CaseIH

CaseIH 255 — 200 Series · 24 hp. Reference specifications; pending source verification.

The CaseIH 255 is a compact tractor model rated at 24 hp. Manufactured between 1986 and 1990, it features a 3-cylinder diesel liquid-cooled engine and powers four-wheel drive through a 9-speed gearbox. The listed weight of the 255 is between 1940 and 2095 pounds. It is suitable for tasks on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

1940 to 2095 pounds

Catalogue coverage

Variants represented

Richest spec table

112 rows

Recorded power

24 hp

Recorded weight

476 kg

Transmissions

9-speed constant mesh

Production years

1986-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCaseIHReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price$11,000 (1990)Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

SteeringmanualReference

Steeringpower optionalReference

Mechanical drum brakesReference

Two-post folding ROPS. Optional sunshade.Reference

Engine

Mitsubishi 1.1L 3-cyl dieselReference

Engine (net)17.9 kWReference

MitsubishiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke76 x 78 mmReference

Power (net)17.9 kWReference

Air cleanerdry cyclone typeReference

Rated RPM2700Reference

Starter volts12Reference

Oil capacity4.2 LReference

Coolant capacity4.9 LReference

Transmission

9-speed constant meshReference

9-speed synchromeshReference

Typeconstant meshReference

Gears9 forward and 3 reverseReference

Three gears in each of high, medium, low, and reverse ranges.Reference

TypesynchromeshReference

Optional synchromesh transmission. Three gears in each of high, medium, low, and reverse ranges.Reference

PTO & Hydraulics

PTO (claimed)15.7 kWReference

Hydraulic system25.0 LReference

TypeopenReference

Capacity25.0 LReference

Valves1Reference

Total flow17.8 lpmReference

Rear TypeIReference

Rear lift (at ends)680 kgReference

Rear lift (at 24"/610mm)510 kgReference

Rear PTOtransmissionReference

Rear PTOliveReference

Rear PTO Type540,1150Reference

Capacities

Fuel20.8 LReference

Dimensions

Wheelbase167 cmReference

Weight1940 to 2095 poundsReference

Front tire4.00-15Reference

Rear tire9.5-24Reference

Weight476 kgReference

2WD Ag front4.00-15Reference

2WD Ag front5.00-15Reference

4WD Ag front6-14Reference

4WD Ag front7-14Reference

Ag rear9.5-24Reference

Ag rear11.2-24Reference

2WD Lawn/turf front5.90-15Reference

2WD Lawn/turf front24x8.50-14Reference

2WD Lawn/turf front20x8.00-10Reference

4WD Lawn/turf front24x8.50-14Reference

4WD Lawn/turf front7-14Reference

4WD Lawn/turf front27x8.50-15Reference

Lawn/turf rear11.2/10x24Reference

Lawn/turf rear13.6-16Reference

Lawn/turf rear355/80D20Reference

Length283 cmReference

2WD Width119 cmReference

4WD Width118 cmReference

Height (steering wheel)139 cmReference

Height (ROPS)209 cmReference

2WD Shipping weight879 kgReference

4WD Shipping weight950 kgReference

Ground clearance37 cmReference

2WD Clearance (front axle)36 cmReference

4WD Clearance (front axle)29 cmReference

2WD Front tread90 to 101 cmReference

4WD Front tread97 cmReference

Rear tread91 to 121 cmReference

CaseIH 255 attachments

61" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

255 Serial Numbers

Location:Tractor frame on front right.Reference

198617646500Reference

198717647065Reference

1988CCJ0018001Reference

1989CCJ0018787Reference

1990CCJ0019378Reference

1991CCJ0019968Reference

1992CCJ0020558Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps35Reference

Battery volts12Reference

Attachment overview

61" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

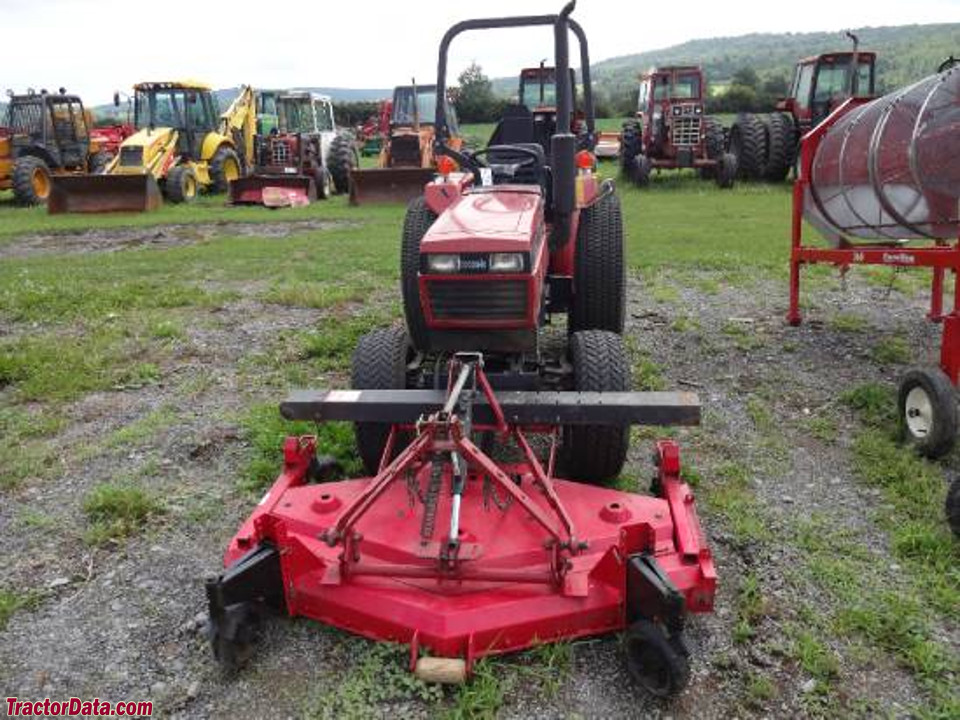

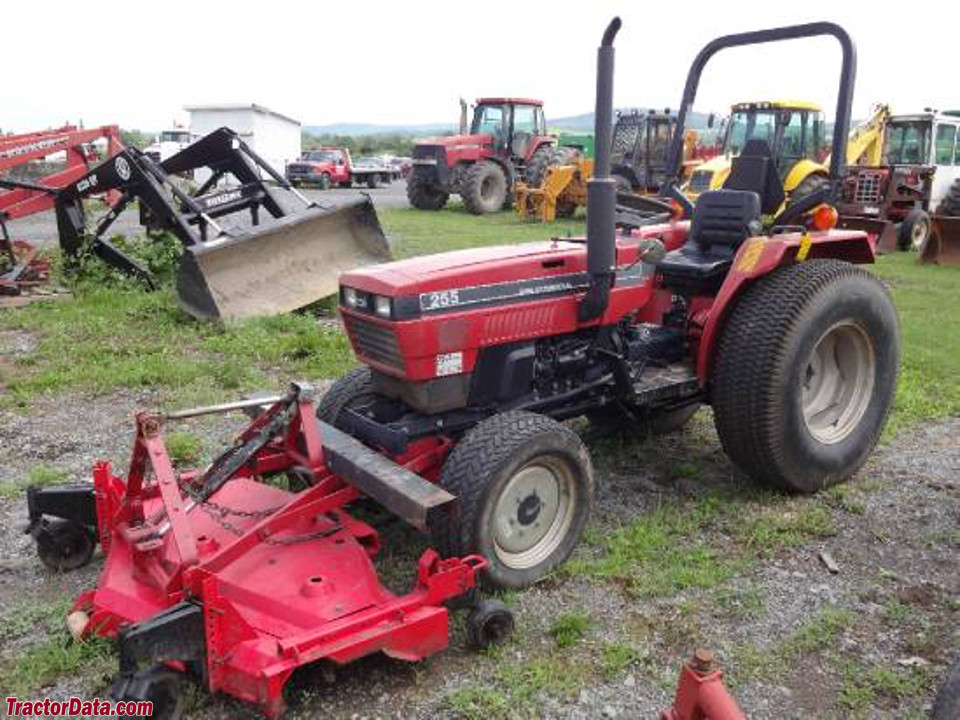

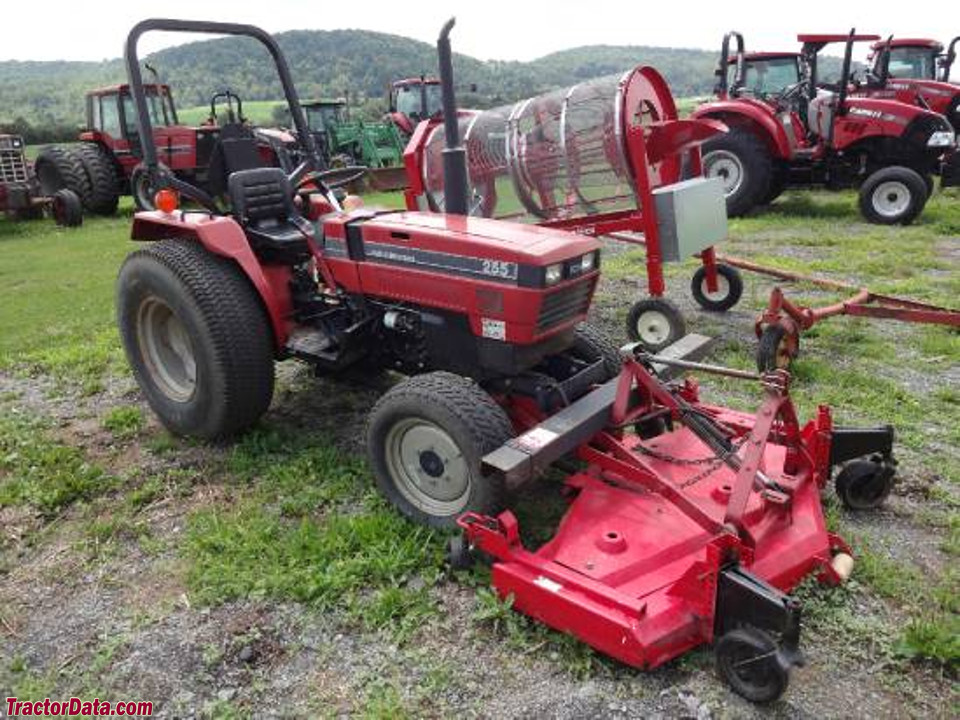

Three mid-mount mower decks were available, the 61MB used the rear PTO while the 61MS used the mid PTO. The 72 MS used the mid PTO. Also available was the 60FS (rear PTO) and 60FMS (mid PTO) front-mount mowers.Reference

Case IH H180 Backhoe

Backhoe typeCase IH H180 BackhoeReference

Digging depth254 cmReference

Reach from pivot330 cmReference

Loading height170 cmReference

Bucket Rotation175°Reference

Swing Arc180°Reference

Bucket force1134 kgReference

Dipperstick force498 kgReference

Speeds

With 11.2-24 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
