Tractor · 1987Unverified

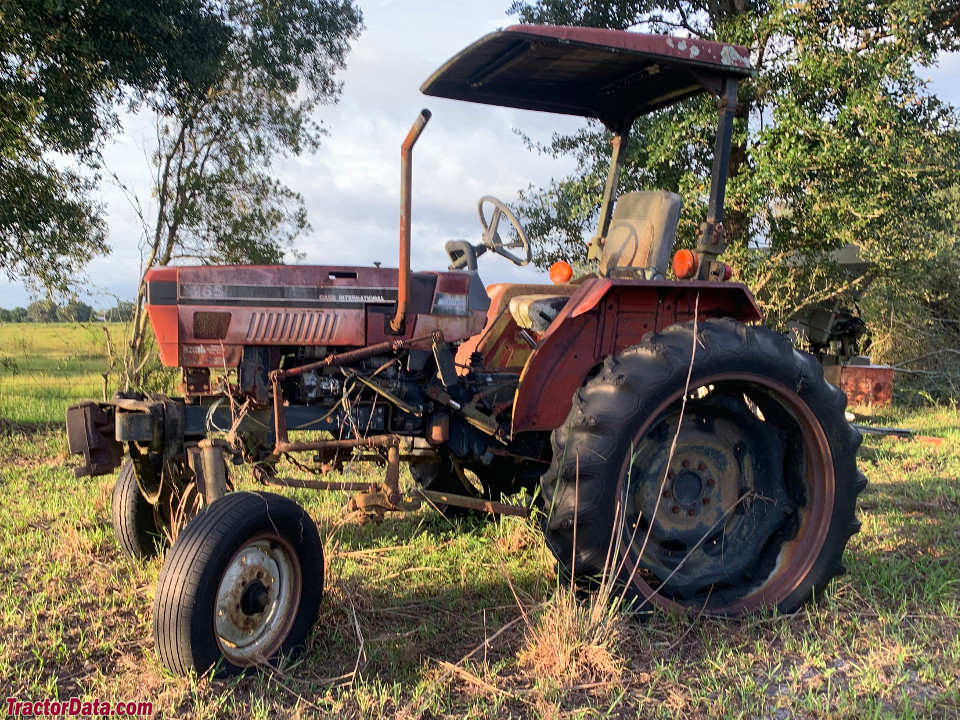

CaseIH 265
CaseIH 265 — 200 Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1274 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
High-Clearance tractorReference
Original price was $13,000 in 1991Reference
The Case International 265 offset was designed as a cultivating tractor for vegetable, tobacco, and nursery work. An optional high clearance front axle provided additional ground clearance and was used with 11.2-36 rear tires.Reference
Two-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringpower optionalReference
Hydraulic wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Engine (net)20.1 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 90 mmReference
Power (net)20.1 kWReference
Air cleanerdry cyclone typeReference
Rated RPM2700Reference
Idle RPM900-2900Reference
Starter volts12Reference
Oil capacity4.2 LReference
Coolant capacity6.1 LReference
Transmission
9-speed constant meshReference
synchromeshReference
Typeconstant meshReference
Gears9 forward and 3 reverseReference
Oil capacity34.8 LReference
Three gears in each of high, medium, low, and reverse ranges.Reference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Hydraulic system34.8 LReference
Typeopen centerReference
Capacity34.8 LReference
Valves0 or 1Reference
Pump flow17.4 lpmReference
Rear TypeIReference
Rear lift381 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540/1150Reference
Mid PTO Type2400Reference
Capacities
Fuel20.1 LReference
Dimensions
Wheelbase187 cmReference
Weight1274 kgReference
Front tire5.50-16Reference
Rear tire12.4-24Reference
Ag front5.50-16Reference
Ag rear12.4-24Reference
Ag rear11.2-28Reference
Ag rear11.2-36Reference
Lawn/turf front24x8.50-14Reference
Lawn/turf rear355/80D20Reference
Length278 cmReference
Length297 cmReference
Width143 cmReference
Height (steering wheel)176 cmReference
Height (ROPS)229 cmReference
Shipping weight1274 kgReference
Ground clearance56 cmReference
Ground clearance69 cmReference
Front tread108 to 167 cmReference
Rear tread111 to 169 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH65Reference
Speeds
With 12.4-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
