Tractor · 1986Unverified

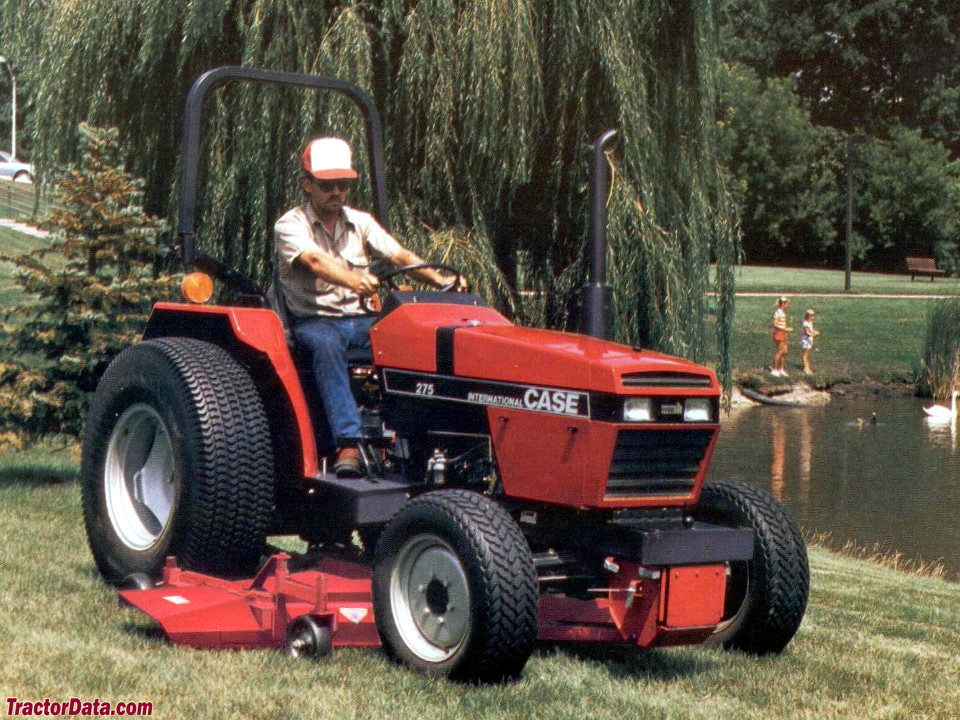

CaseIH 275

Name: CaseIH 275
Brand: CaseIH

CaseIH 275 — 200 Series · 31 hp. Reference specifications; pending source verification.

The CaseIH 275 is a compact tractor rated at 31 hp, manufactured between 1986 and 1991. Its power source is a 3-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system coupled with a 9-speed gearbox. The listed weight of the CaseIH 275 ranges from 2600 to 2800 pounds. It is designed for tasks on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Weight

2600 to 2800 pounds

Catalogue coverage

Variants represented

Richest spec table

108 rows

Recorded power

31 hp

Recorded weight

476 kg

Transmissions

9-speed synchromesh

Production years

1986-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorCaseIHReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Original price was $13,100 in 1991Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

SteeringmanualReference

Steeringpower optionalReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Optional sunshade.Reference

Engine

Mitsubishi 1.5L 3-cyl dieselReference

Engine (net)23.1 kWReference

MitsubishiReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power (net)23.1 kWReference

Rated RPM2700Reference

Starter volts12Reference

Oil capacity4.2 LReference

Coolant capacity6.1 LReference

Transmission

9-speed synchromeshReference

TypesynchromeshReference

Gears9 forward and 3 reverseReference

Three gears in each of high, medium, low, and reverse ranges.Reference

PTO & Hydraulics

PTO (claimed)20.1 kWReference

Hydraulic system29.1 LReference

Typeopen centerReference

Capacity29.1 LReference

Valves0 to 2Reference

Total flow27.6 lpmReference

Rear TypeIReference

Rear lift (at ends)907 kgReference

Rear lift (at 24"/610mm)700 kgReference

Rear PTOliveReference

Rear PTO Type540/1150Reference

Mid PTOliveReference

Mid PTO Type2400Reference

Capacities

Fuel28.0 LReference

Dimensions

Wheelbase180 cmReference

Weight2600 to 2800 poundsReference

Front tire5.50-16Reference

Rear tire12.4-24Reference

Weight476 kgReference

Weight644 kgReference

2WD Ag front5.50-16Reference

4WD Ag front7-16Reference

Ag rear12.4-24Reference

2WD Ag front6.00-16Reference

4WD Ag front8-16Reference

Ag rear13.6-24Reference

Lawn/turf front27x8.50-15Reference

2WD Lawn/turf front24x8.50-14Reference

4WD Lawn/turf front212/80D15Reference

Lawn/turf rear355/80D20Reference

Lawn/turf rear18.4-16.1Reference

Length283 cmReference

Width137 cmReference

2WD Shipping weight1179 kgReference

4WD Shipping weight1270 kgReference

Ground clearance35 cmReference

2WD Clearance (front axle)31 cmReference

4WD Clearance (front axle)29 cmReference

Front tread109 to 160 cmReference

4WD Front tread119 cmReference

Rear tread106 to 157 cmReference

2WD Steering wheel146 cmReference

4WD Steering wheel149 cmReference

CaseIH 275 attachments

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

275 Serial Number Location

Serial number on the right side of the Case IH 275 tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps35Reference

Battery volts12Reference

Attachment overview

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

72" Mower deck

Typemid-mount Case IH 72MSReference

Type3-blade with hydraulic liftReference

Cutting width182 cmReference

DriveshaftReference

Cut height3 to 10 cmReference

Case IH H180 Backhoe

Backhoe typeCase IH H180 BackhoeReference

Digging depth254 cmReference

Reach from pivot330 cmReference

Loading height170 cmReference

Bucket Rotation175°Reference

Swing Arc180°Reference

Bucket force1134 kgReference

Dipperstick force498 kgReference

Case IH H185 Backhoe

Backhoe typeCase IH H185 BackhoeReference

Digging depth264 cmReference

Reach from pivot337 cmReference

Loading height151 cmReference

Bucket Rotation170°Reference

Swing Arc180°Reference

Bucket force1632 kgReference

Dipperstick force680 kgReference

CaseIH 275 Height

ROPS215 cmReference

Speeds

With 12.4-24 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
