Tractor · 1994Unverified

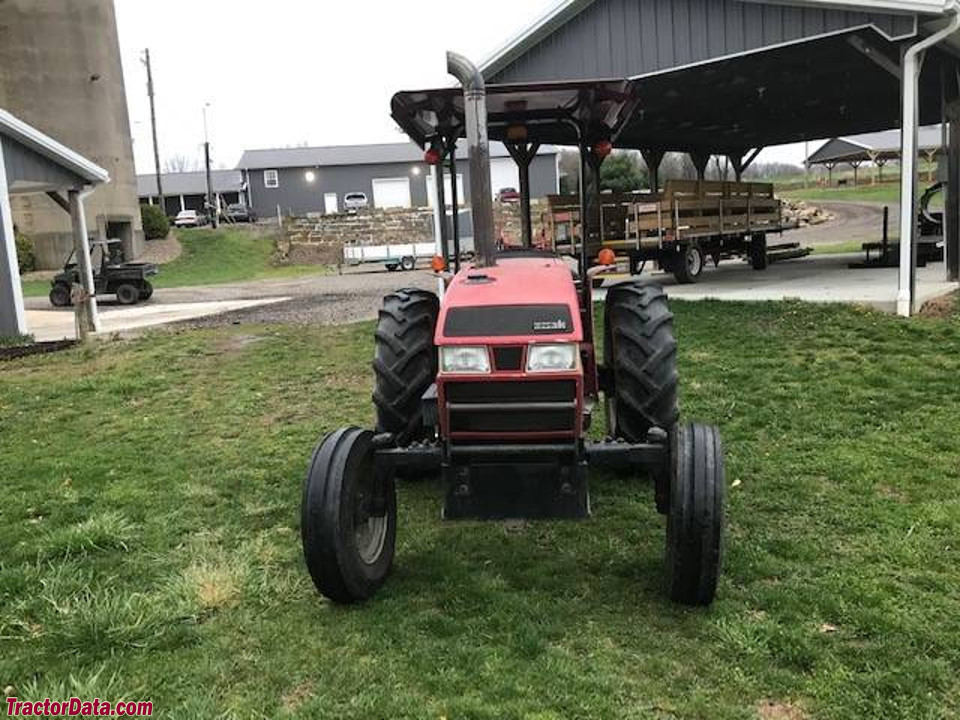

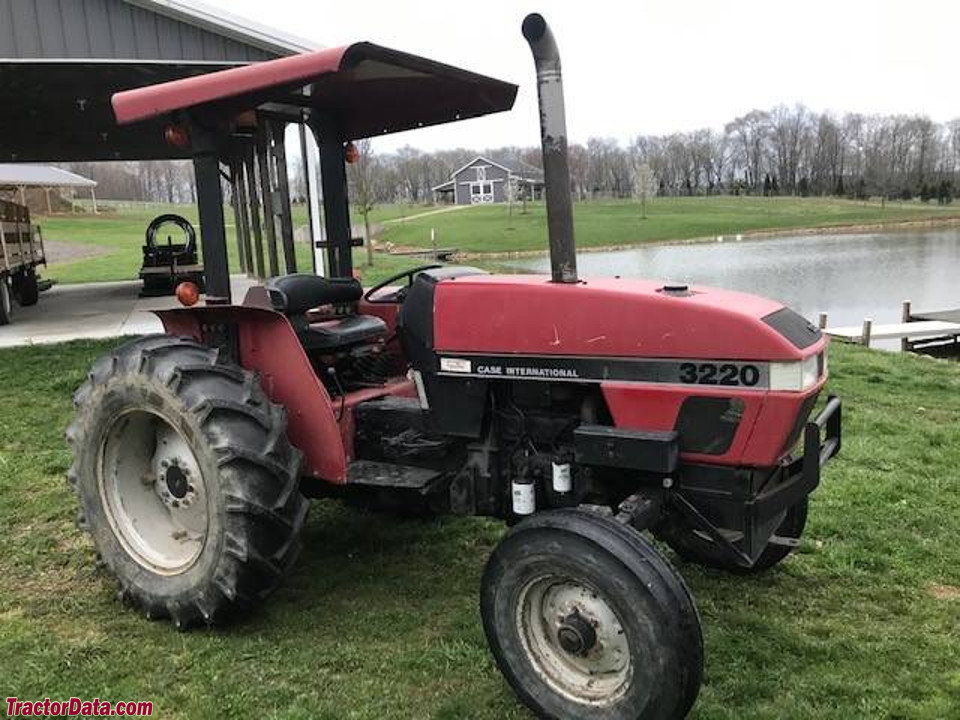

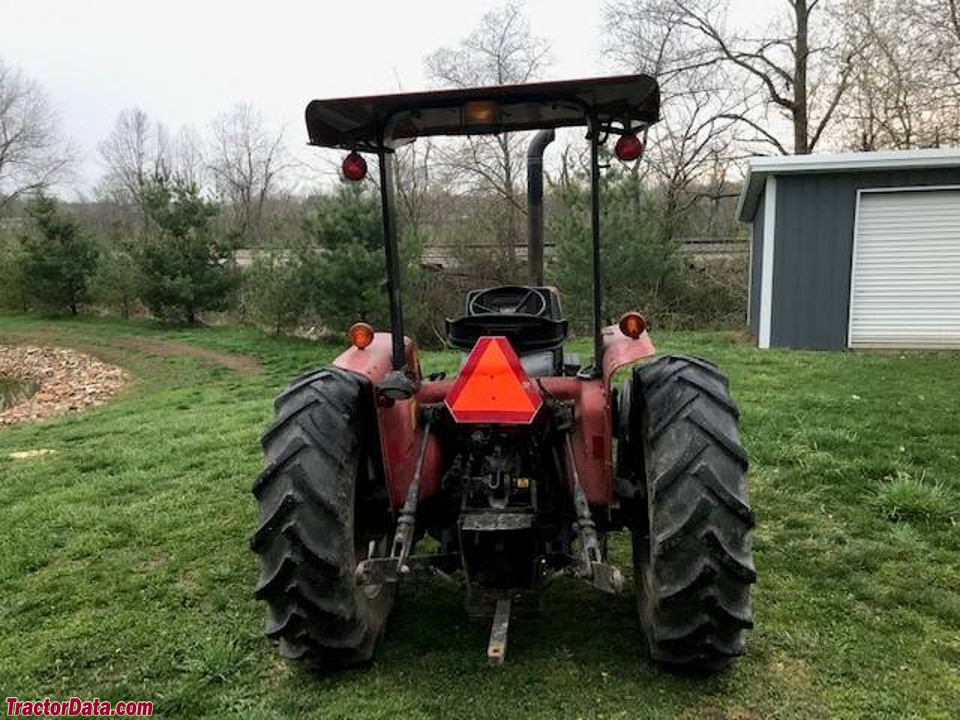

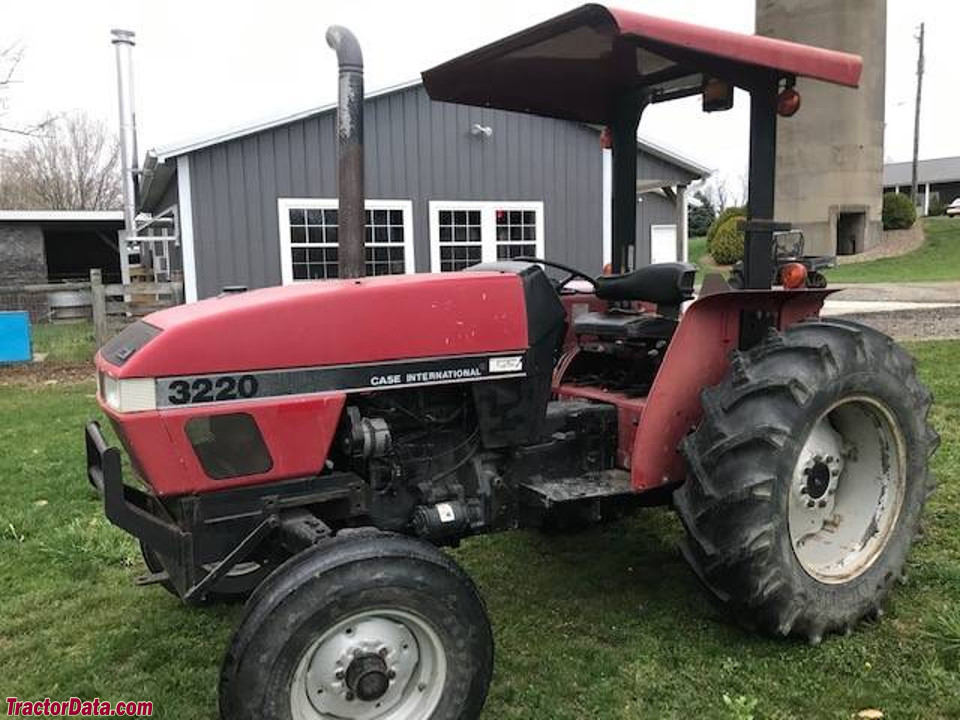

CaseIH 3220
CaseIH 3220 — Utility tractor · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
5617 to 6327 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $20,000 in 1997Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanicalReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS.Reference
Engine
Case 2.9L 3-cyl dieselReference
Engine (gross)39.5 kWReference
Engine (net)37.3 kWReference
Case D179Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Power (net)37.3 kWReference
Power (gross)39.5 kWReference
Air cleanerdryReference
Pre-heatingthermostart (optional)Reference
Pre-heatingether (optional)Reference
Rated RPM2180Reference
Starter volts12Reference
Oil capacity7.5 LReference
Oil change200 hReference
Coolant capacity11.4 LReference
Transmission
8-speed synchromeshReference
8-speed shuttleReference
16-speed partial power shiftReference
16-speed synchromesh creeperReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch11-inch dry cerametallicReference
Clutch12-inch dry cerametallic (optional)Reference
2WD Oil capacity34.0 LReference
4WD Oil capacity36.5 LReference
Four gears (1-4) in two ranges (L/H) plus reverse range.Reference
TypeshuttleReference
Gears8 forward and reverseReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.Reference
Typesynchromesh creeperReference
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.Reference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
2WD Hydraulic system34.1 LReference
4WD Hydraulic system36.7 LReference
Typeopen centerReference
2WD Capacity34.1 LReference
4WD Capacity36.7 LReference
Pressure172.4 barReference
Valves0 to 3Reference
Total flow55.6 lpmReference
Rear TypeIIReference
Controldraft and position controlReference
Rear lift1662 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference
Capacities
Fuel75.7 LReference
Max capacity4604 kgReference
Dimensions
2WD Wheelbase202 cmReference
4WD Wheelbase211 cmReference
Weight5617 to 6327 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 16.9-28Reference
Front tread132 to 195 cmReference
Front tread121 to 203 cmReference
Front tread132 to 203 cmReference
Front tread132 to 195 cmReference
Front tread223 to 243 cmReference
2WD Shipping2547 kgReference
4WD Shipping2869 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps60 (optional)Reference
Battery CCA650Reference
Battery CCA750 (optional)Reference
Battery volts12Reference
Speeds
With 13.6x28 rear tires.Reference
With 13.6x28 rear tires. Speeds in direct mode same as regular synchromesh transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
