Tractor · 1994Unverified

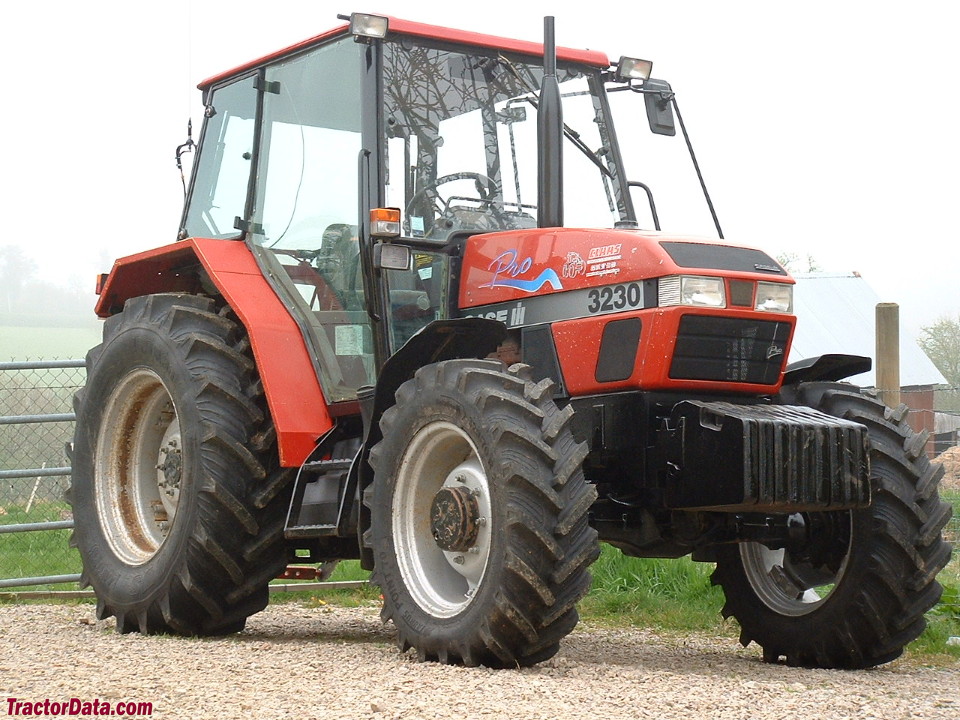

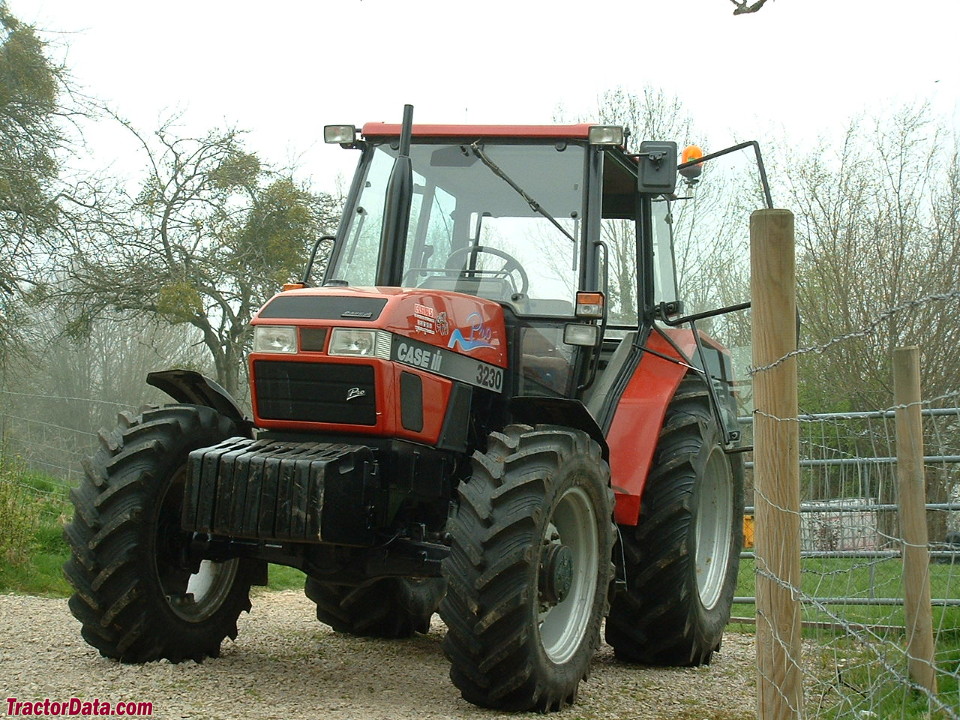

CaseIH 3230
CaseIH 3230 — Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
6147 to 6905 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $23,000 in 1997Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical (ROPS)Reference
Differential lockelectro-hydraulic (cab)Reference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Case 3.4L 4-cyl dieselReference
Engine (gross)44.7 kWReference
Engine (net)41.8 kWReference
Case D206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Power (net)41.8 kWReference
Power (gross)44.7 kWReference
Air cleanerdryReference
Pre-heatingthermostart (optional)Reference
Pre-heatingether (optional)Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity7.5 LReference
Oil change200 hReference
Coolant capacity13.7 LReference
Transmission
8-speed synchromeshReference
8-speed shuttleReference
16-speed partial power shiftReference
16-speed synchromesh creeperReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch11-inch dry cerametallicReference
Clutch12-inch dry cerametallic (optional)Reference
2WD Oil capacity34.0 LReference
4WD Oil capacity36.5 LReference
Four gears (1-4) in two ranges (L/H) plus reverse range.Reference
TypeshuttleReference
Gears8 forward and reverseReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.Reference
Typesynchromesh creeperReference
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.Reference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
2WD Hydraulic system34.1 LReference
4WD Hydraulic system36.7 LReference
Typeopen centerReference
2WD Capacity34.1 LReference
4WD Capacity36.7 LReference
Pressure172.4 barReference
Valves0 to 3Reference
Total flow57.9 lpmReference
Total flow67.0 lpmReference
Rear TypeIIReference
Controldraft and position controlReference
Rear lift1662 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Capacities
Fuel75.7 LReference
Fuel112.0 LReference
Max capacity4604 kgReference
Max capacity5499 kgReference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase223 cmReference
Weight6147 to 6905 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 16.9-28Reference
Front tread132 to 195 cmReference
Front tread121 to 203 cmReference
Front tread132 to 203 cmReference
Front tread132 to 195 cmReference
Front tread223 to 243 cmReference
Shipping2788 kgReference
Shipping3132 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps65 (cab, ROPS opt.)Reference
Battery CCA650Reference
Battery CCA750Reference
Battery volts12Reference
Speeds
With 16.9x30 rear tires.Reference
With With 16.9x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
