Tractor · 1985Unverified

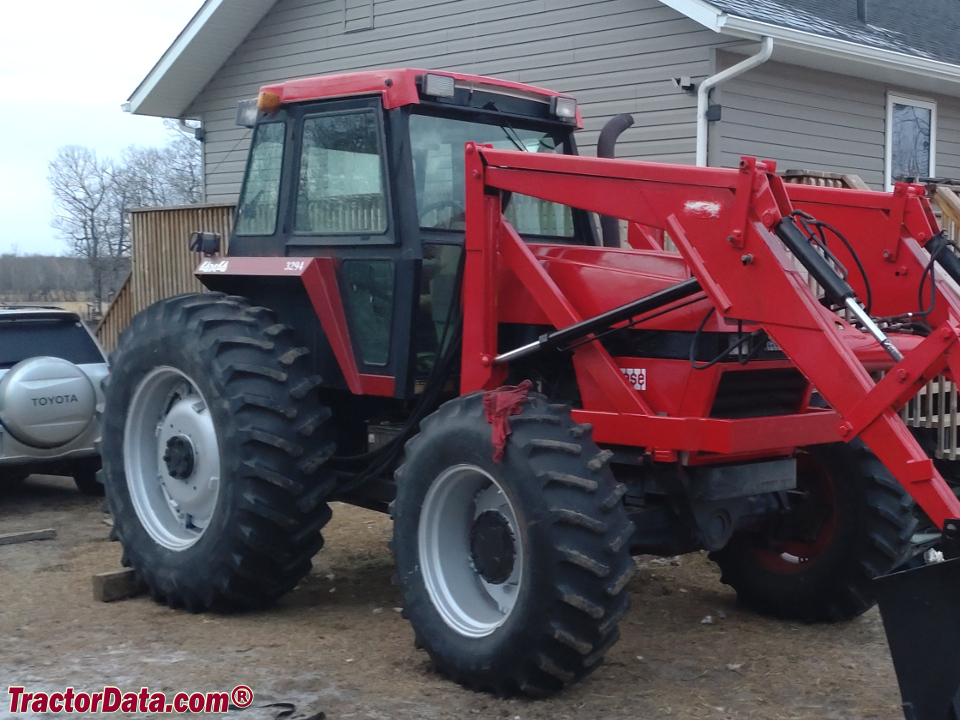

CaseIH 3294

Name: CaseIH 3294
Brand: CaseIH

CaseIH 3294 — Row-Crop tractor · 163 hp. Reference specifications; pending source verification.

The CaseIH 3294 is a tractor with a power output of 163 hp, placing it at the higher end of its class. Produced between 1985 and 1986, it features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. The 3294 has a listed operating weight of 7711 kg, and is suited to operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

163 hp

Max power

105.0 kW

Weight

7711 kg

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

163 hp

Recorded weight

7711 kg

Transmissions

12-speed three-speed power shift

Production years

1985-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Racine, Wisconsin, USAReference

Original price$67,600 (1984)Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Silent Guardian cab with air-conditioning.Reference

Engine

Case 8.3L 6-cyl dieselReference

Engine146.9 kWReference

Drawbar (claimed)106.6 kWReference

Drawbar (tested)105.0 kWReference

CaseReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.3 LReference

Bore/Stroke117 x 127 mmReference

Power146.9 kWReference

Rated RPM2100Reference

Starter volts12Reference

Oil capacity28.4 LReference

Coolant capacity41.6 LReference

Power at rated engine speed121.3 kWReference

Max power105.0 kWReference

Transmission

12-speed three-speed power shiftReference

Typethree-speed power shiftReference

Gears12 forward and 3 reverseReference

Oil capacity106.0 LReference

Four ranges and three power shifts (clutchless on-the-move shifting) in each range.Reference

PTO & Hydraulics

PTO (claimed)120.8 kWReference

PTO (tested)121.3 kWReference

Hydraulic system121.1 LReference

Typeclosed centerReference

Capacity121.1 LReference

Pressure155.1 barReference

Valves2 to 4Reference

Pump flow87.1 lpmReference

Steering flow30.3 lpmReference

Steering press.137.9 barReference

Rear Type3/2Reference

Rear lift (at 24"/610mm)2993 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Capacities

Fuel246.0 LReference

Fuel94.6 LReference

Dimensions

Wheelbase264 cmReference

Weight7711 kgReference

Front tire11.00x16Reference

Rear tire18.4x38Reference

Ag front11.00x16Reference

Ag rear18.4x38Reference

Ag front14Lx16Reference

Ag rear23.1x34Reference

Ag rear16.9x38Reference

Ag rear20.8x38Reference

Width243 cmReference

Width304 cmReference

Shipping weight7711 kgReference

Max weight8164 kgReference

Bar rear axle88 by 2438 mmReference

Bar rear axle88 by 3048 mmReference

Rear tread152 to 223 cmReference

Rear tread152 to 284 cmReference

3294 Serial Numbers

Location:Inside cab or on right-front frameReference

19849932190Reference

19859938125Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps72Reference

Charging amps105Reference

Battery volts12Reference

Test results

Diesel 12-speed 4WDJune 12 - 22, 1984Link: Nebraska Tractor Test 1528 fileReference

PTO performanceReference

Fuel use40.1 l/hourReference

Drawbar performanceReference

Fuel use39.4 l/hourReference

Gear 2-3 used for power test.Reference

Max pull7367 kgReference

Gear 1-2 used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
