Tractor · 1985Unverified

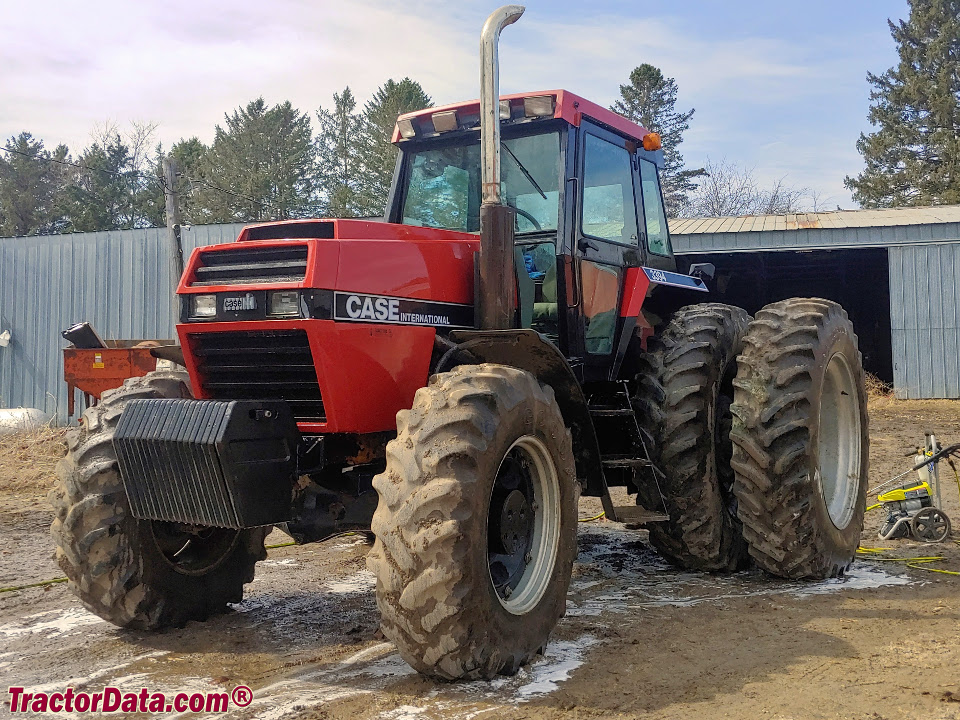

CaseIH 3394
CaseIH 3394 — Row-Crop tractor · 163 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
163 hp
Max power
105.3 kW
Weight
7085 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Original price was $71,000 in 1987Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standardReference
Engine
Case 8.3L 6-cyl dieselReference
Drawbar (tested)105.3 kWReference
CaseReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Air cleanerdual paper elementsReference
Compression15.8:1Reference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity21.8 LReference
Coolant capacity41.6 LReference
Power at rated engine speed121.4 kWReference
Max power105.3 kWReference
Transmission
24-speed partial power shiftReference
12-speed partial power shiftReference
Typepartial power shiftReference
Gears24 forward and 3 reverseReference
Oil capacity125.9 LReference
Four ranges with six power shift gears in each range.Reference
Gears12 forward and 3 reverseReference
Four ranges with three power shift gears in each range.Reference
PTO & Hydraulics
PTO (claimed)120.8 kWReference
PTO (tested)121.4 kWReference
Hydraulic system125.9 LReference
Typeclosed centerReference
Capacity125.9 LReference
Valves2 to 4Reference
Pump flow113.6 lpmReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)3515 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel321.7 LReference
Max capacity9298 kgReference
Dimensions
Wheelbase294 cmReference
Weight7085 kgReference
Front tire16.9-26Reference
Rear tire24.5R-32Reference
Ag front16.9-26Reference
Ag rear24.5R-32Reference
Length488 cmReference
Width152 cmReference
Height (cab)304 cmReference
Ground clearance45 cmReference
Operating7085 kgReference
Ballasted8441 kgReference
3394 Serial Numbers
Location:Inside cabReference
19859938100Reference
19869941573Reference
19879945448Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 24-speed 4WDOctober 15 - 24, 1985Link: Nebraska Tractor Test 1583 fileReference
PTO performanceReference
Fuel use40.1 l/hourReference
Drawbar performanceReference
Fuel use39.4 l/hourReference
Gear 16 used for power test.Reference
Max pull7902 kgReference
Gear 1-4 used for pull test.Reference
Speeds
With 20.8x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
