Tractor · 1985Unverified

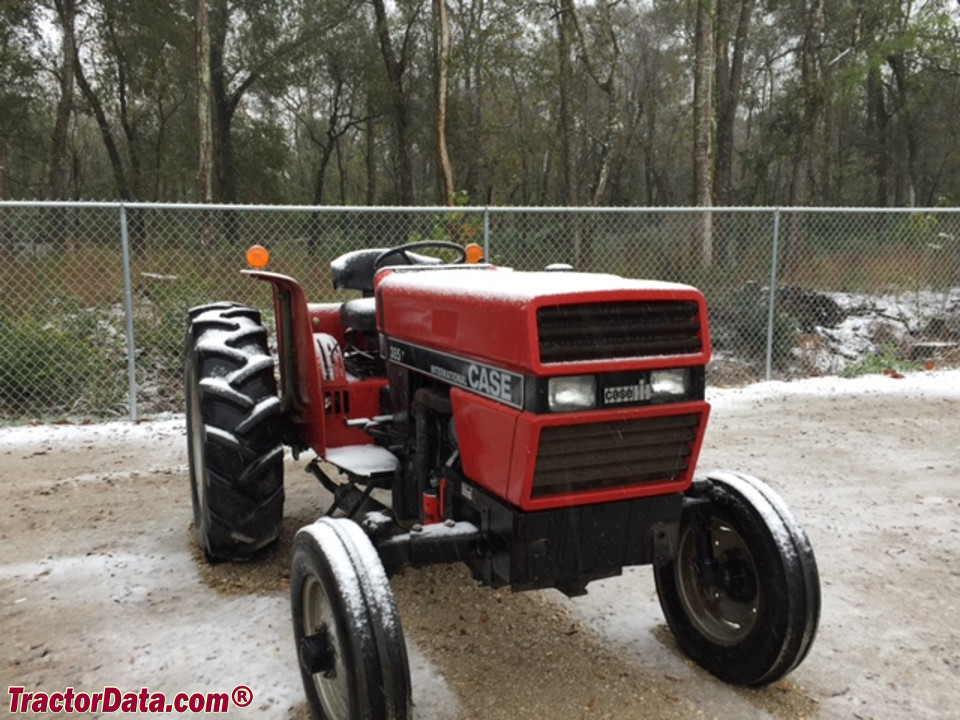

CaseIH 385
CaseIH 385 — 85 Utility Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
4869 to 5940 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $14,000 in 1990Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Optional canopy. Optional deluxe canopy with lights and radio wiring.Reference
Engine
CaseIH 2.5L 3-cyl dieselReference
Engine32.1 kWReference
CaseIH D-155Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke97 x 109 mmReference
Power32.1 kWReference
Air cleanerdry type with safety elementReference
Pre-heatingether injectionReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM700-2400Reference
Torque161.4 NmReference
Torque RPM1650Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity11.4 LReference
Transmission
8-speed synchromeshReference
16-speed partial power shiftReference
8-speed power shuttleReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Four gears within each of high, low, and reverse ranges. Synchronized shifts within forward ranges.Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears within each of high, low, and reverse ranges. Power shift between direct and lower speed for each gear.Reference
Typepower shuttleReference
Gears8 forward and reverseReference
Four gears within each of high and low ranges. Power shift direction change between forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Pressure172.4 barReference
Valves0 to 2Reference
Total flow54.1 lpmReference
Steering flow9.5 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)978 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel75.7 LReference
Dimensions
Wheelbase202 cmReference
Weight4869 to 5940 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16 (2WD)Reference
Ag front8.3x24 (4WD)Reference
Ag rear13.6-28 (2WD)Reference
Ag rear14.9x28 (4WD)Reference
Ag front7.50x16Reference
Ag front9.5x15Reference
Ag rear14.9x24Reference
Ag rear14.9x28Reference
Ag rear16.9x24Reference
Ag rear16.9x28Reference
Ag rear18.4x16.1Reference
Shipping2235 kgReference
Shipping2208 kgReference
Shipping2694 kgReference
385 Serial Numbers
Location:Front right bolsterReference
198515000Reference
198618000Reference
198718806Reference
198819454Reference
198920811Reference
199022231Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Battery AH93Reference
Speeds
With 13.6x28 rear tires.Reference
With 14.9x24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
