Tractor · 1991Unverified

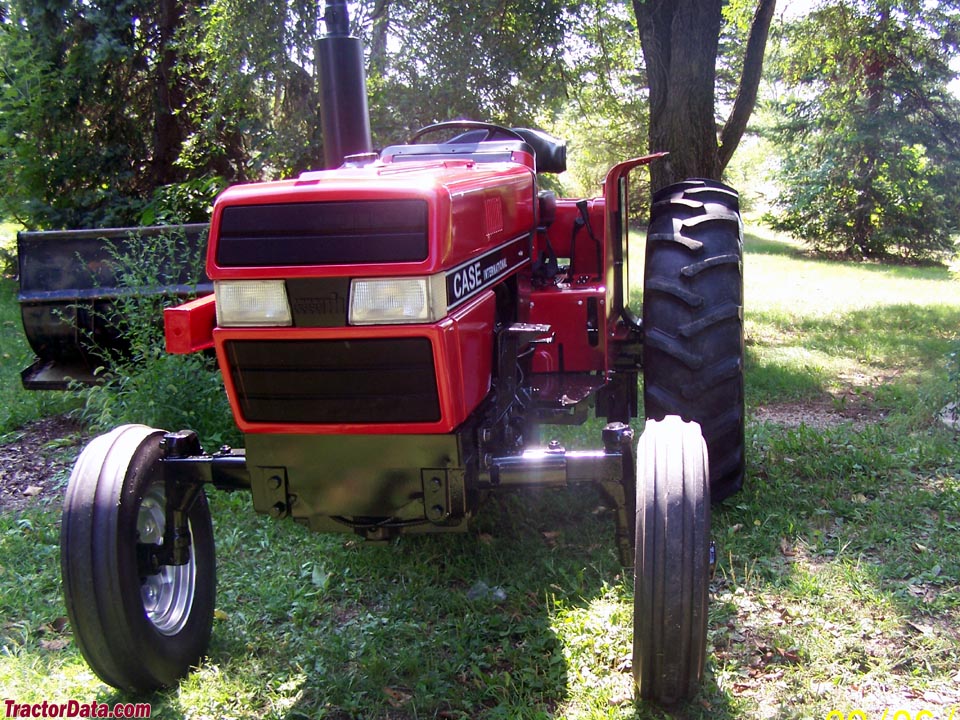

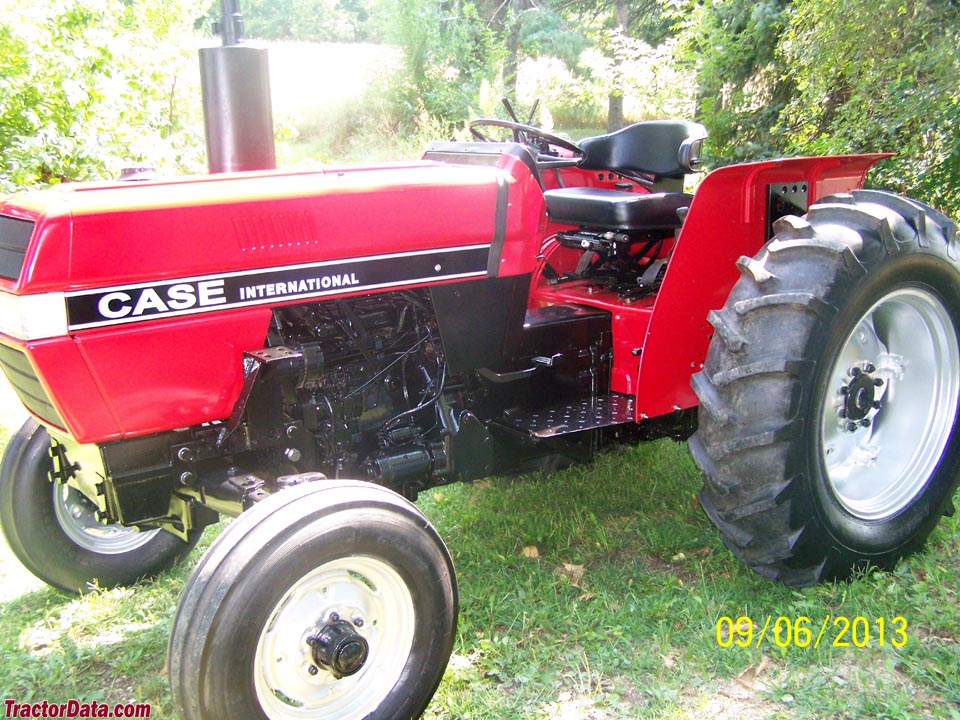

CaseIH 395
CaseIH 395 — 95 Utility Series · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
4869 to 5940 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Original price was $17,000 in 1993Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS standard. Optional ROPS canopy or deluxe canopy with lights and wiring for radio.Reference
Engine
Case International 2.5L 3-cyl dieselReference
Engine (gross)34.3 kWReference
Engine (net)32.1 kWReference
Case International D-155Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke98 x 111 mmReference
Power (net)32.1 kWReference
Power (gross)34.3 kWReference
Air cleanerdry with safety elementReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM650-2430Reference
Torque161.4 NmReference
Torque RPM1650Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity11.4 LReference
Transmission
8-speed partially synchronizedReference
16-speed partial power shiftReference
8-speed synchronized shuttleReference
16-speed creeperReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity34.1 LReference
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.Reference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Four gears each in high and low ranges, both forward and reverse.Reference
TypecreeperReference
Four gears with high, low, and reverse ranges plus direct or creeper mode.Reference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Pressure172.4 barReference
Valves1 or 2Reference
Pump flow54.1 lpmReference
Pump flow62.1 lpmReference
Steering flow11.4 lpmReference

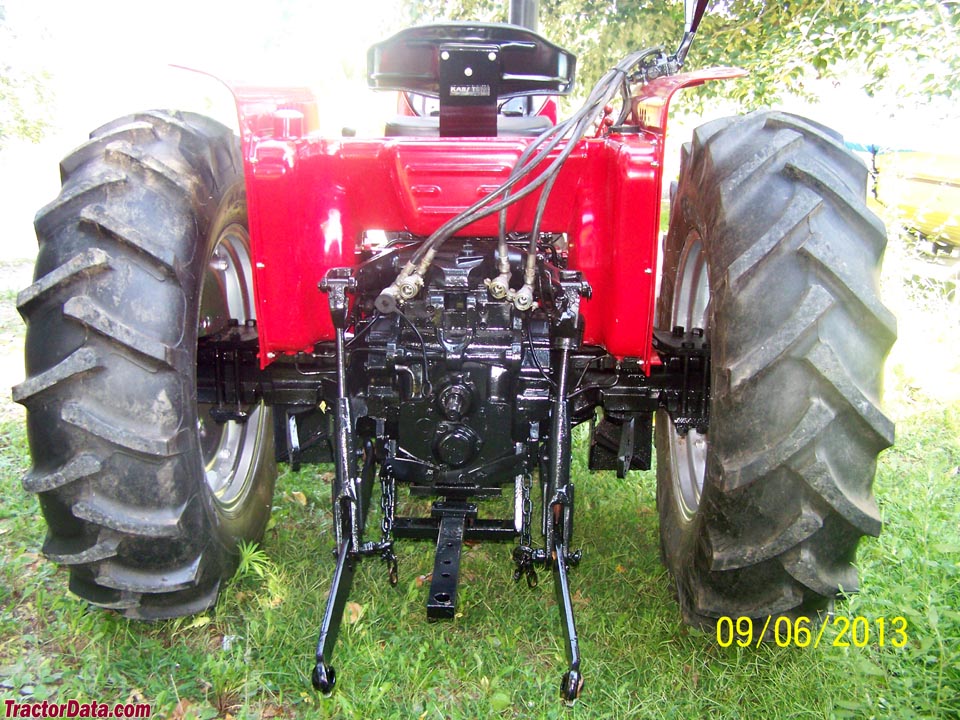

Rear TypeI/IIReference
Rear lift (at 24"/610mm)979 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel75.7 LReference
Dimensions
Wheelbase202 cmReference
Wheelbase211 cmReference
Wheelbase187 cmReference
Weight4869 to 5940 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16 (2WD)Reference
Ag front8.3x24 (4WD)Reference
Ag rear13.6-28 (2WD)Reference
Ag rear14.9x28 (4WD)Reference
Ag front7.50x16Reference
Ag front27x9.5-15Reference
Ag front9.5Lx15Reference
Ag front9.00x10Reference
Ag rear14.9x24Reference
Ag rear16.9x24Reference
Ag rear16.9x28Reference
Ag rear18.4x16.1Reference
Length345 cmReference
Length351 cmReference
Width167 cmReference
Width185 cmReference
Width210 cmReference
Ground clearance25 cmReference
Ground clearance36 cmReference
Ground clearance26 cmReference
Shipping2235 kgReference
Shipping2208 kgReference
Shipping2694 kgReference
CaseIH 395 attachments
front-end loaderReference
395 Serial Numbers
Location:Front right bolsterReference
1991JJE0001500Reference
1992JJE0018291Reference
1993JJE0025736Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps65Reference
Battery CCA650Reference
Battery volts12Reference
Attachment overview
Case IH 2200 loaderReference
Case IH 2250 loaderReference
CaseIH 395 Height
Hood139 cmReference
Hood150 cmReference
Hood129 cmReference
ROPS237 cmReference
ROPS239 cmReference
ROPS225 cmReference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
