Tractor · 1994Unverified
CaseIH 4210
CaseIH 4210 — Utility tractor · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Max power
39.4 kW
Weight
6327 to 7085 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Doncaster, EnglandReference
Original price was $26,000 in 1997Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
ROPS Differential lockmechanicalReference

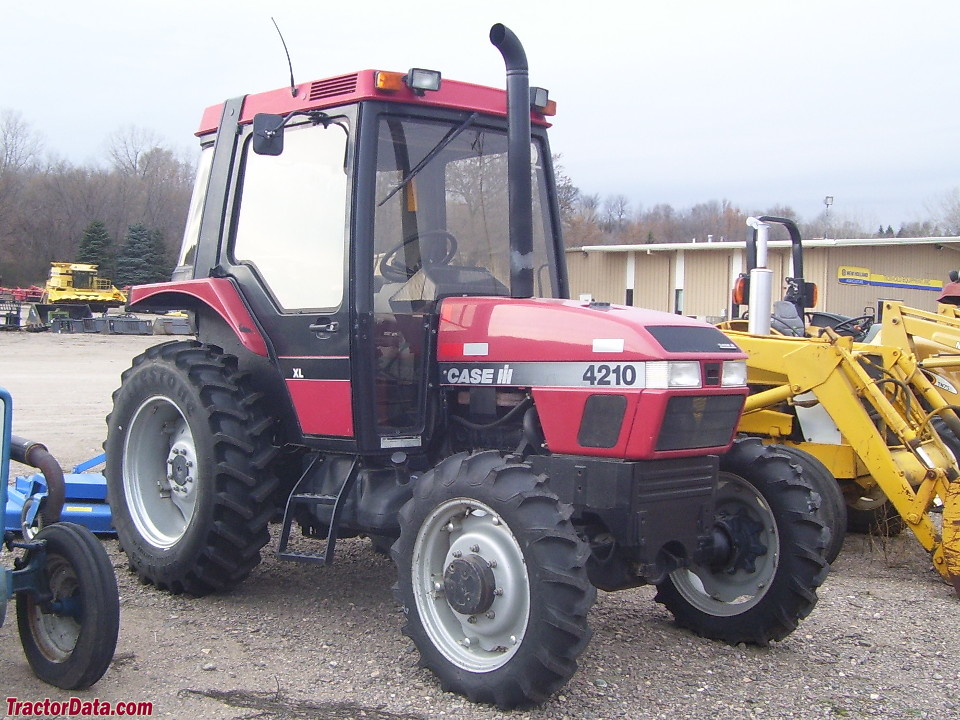

Cab Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference

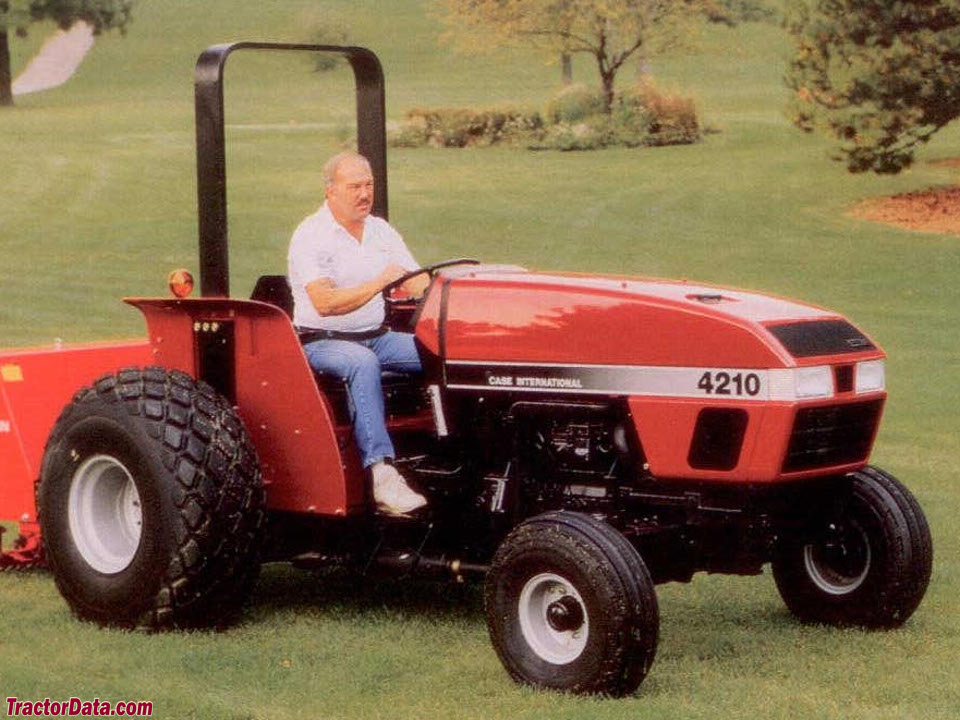

Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Case 3.9L 4-cyl dieselReference
Engine (gross)53.7 kWReference
Engine (net)50.7 kWReference
Drawbar (tested)39.4 kWReference
Case D239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Power (net)50.7 kWReference
Power (gross)53.7 kWReference
Air cleanerdryReference
Pre-heatingthermostartReference
Pre-heatingetherReference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity9.8 LReference
Oil change200 hReference
Coolant capacity13.7 LReference
Power at rated engine speed45.5 kWReference
Max power39.4 kWReference
Transmission
8-speed synchromeshReference
8-speed shuttleReference
16-speed partial power shiftReference
16-speed synchromesh creeperReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutch12-inch dry cerametallicReference
2WD Oil capacity34.0 LReference
4WD Oil capacity36.5 LReference
Four gears (1-4) in two ranges (L/H) plus reverse range.Reference
TypeshuttleReference
Gears8 forward and reverseReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.Reference
Typesynchromesh creeperReference
Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.Reference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)45.5 kWReference
2WD Hydraulic system34.1 LReference
2WD Hydraulic system36.7 LReference
Typeopen centerReference
2WD Capacity34.1 LReference
2WD Capacity36.7 LReference
Pressure172.4 barReference
Valves0 to 3Reference
Total flow60.9 lpmReference
Total flow69.6 lpmReference
Rear TypeIIReference
Controldraft and position controlReference
Rear lift1662 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2140Reference
Power at rated PTO speed43.8 kWReference
Capacities
ROPS Fuel75.7 LReference
Cab Fuel112.0 LReference
ROPS Max capacity4604 kgReference
Cab Max capacity5499 kgReference
Dimensions
2WD Wheelbase225 cmReference
4WD Wheelbase223 cmReference
Weight6327 to 7085 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 16.9-28Reference
Front tread132 to 195 cmReference
Front tread121 to 203 cmReference
Front tread132 to 203 cmReference
Front tread132 to 195 cmReference
Front tread223 to 243 cmReference
2WD ROPS Shipping2869 kgReference
4WD ROPS Shipping3213 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Charging amps65Reference
Battery CCA650Reference
Battery CCA810Reference
Battery volts12Reference
Test results
Diesel 16-speed 2WDOctober 7 - 14, 1986Link: Nebraska Tractor Test 1604 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use15.1 l/hourReference
Drawbar performanceReference
Gear 1HDD used for power test.Reference
Max pull3269 kgReference
Gear 2LDD used for pull test.Reference
Speeds
With 16.9x30 rear tires.Reference
With With 16.9x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
