Tractor · 1994Unverified

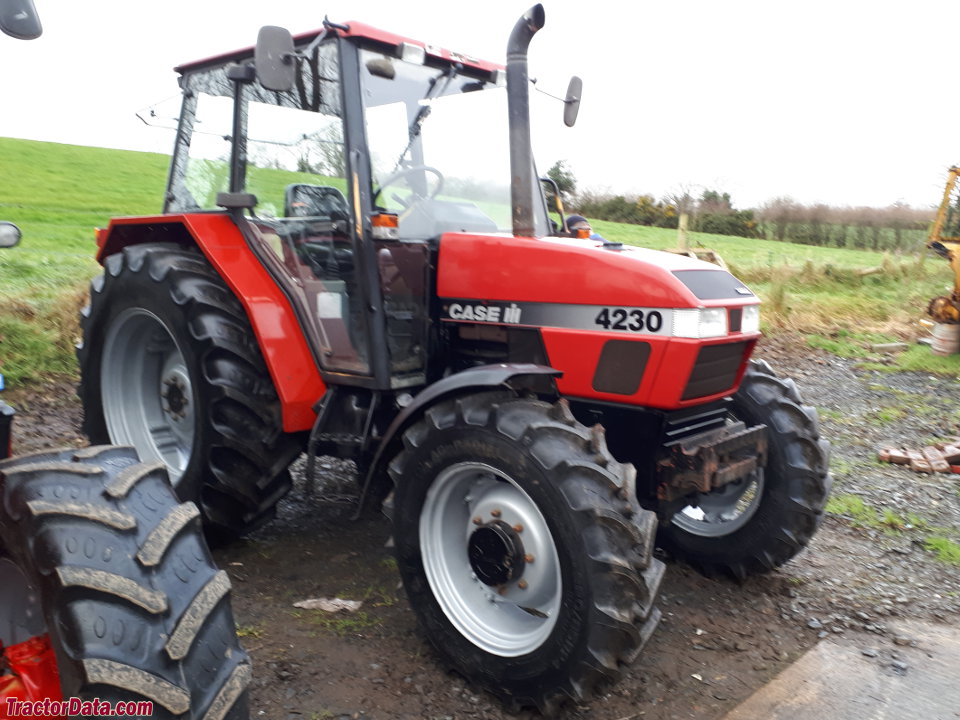

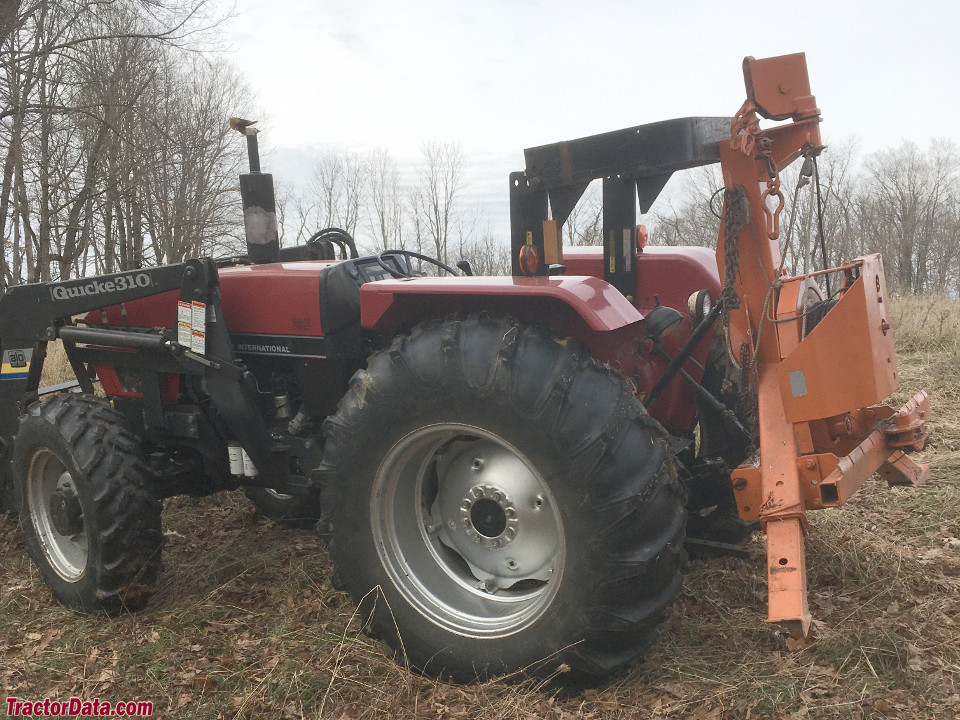

CaseIH 4230

Name: CaseIH 4230
Brand: CaseIH

CaseIH 4230 — Utility tractor · 84 hp. Reference specifications; pending source verification.

The CaseIH 4230 is a tractor with an engine output of 84 horsepower, placing it within the mid-range of its class in terms of power. Manufactured from 1994 to 1997, this tractor is equipped with a 4-cylinder diesel liquid-cooled engine, which drives four-wheel drive through a powershift transmission. Weighing between 6687 and 7395 pounds, the CaseIH 4230 is suited to tasks involving approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

84 hp

Weight

6687 to 7395 pounds

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

84 hp

Transmissions

8-speed synchromesh

Production years

1994-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Original price was $30,000 in 1997Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical (ROPS)Reference

Differential lockelectro-hydraulic (cab)Reference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post ROPS. Cab optional with air-conditioning.Reference

Engine

Case 4.4L 4-cyl dieselReference

Engine (gross)62.6 kWReference

Engine (net)58.9 kWReference

Case D268Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Power (net)58.9 kWReference

Power (gross)62.6 kWReference

Air cleanerdryReference

Pre-heatingthermostart (optional)Reference

Pre-heatingether (optional)Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity9.8 LReference

Oil change200 hReference

Coolant capacity13.7 LReference

Transmission

8-speed synchromeshReference

8-speed shuttleReference

16-speed partial power shiftReference

16-speed synchromesh creeperReference

TypesynchromeshReference

Gears8 forward and 4 reverseReference

Clutch12-inch dry cerametallicReference

2WD Oil capacity34.0 LReference

4WD Oil capacity36.5 LReference

Four gears (1-4) in two ranges (L/H) plus reverse range.Reference

TypeshuttleReference

Gears8 forward and reverseReference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.Reference

Typesynchromesh creeperReference

Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.Reference

PTO & Hydraulics

PTO (claimed)53.7 kWReference

2WD Hydraulic system34.1 LReference

Cab Hydraulic system36.7 LReference

Typeopen centerReference

2WD Capacity34.1 LReference

Cab Capacity36.7 LReference

Pressure172.4 barReference

Valves0 to 3Reference

Total flow60.9 lpmReference

Total flow69.6 lpmReference

Rear TypeIIReference

Controldraft and position controlReference

Rear lift1662 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Capacities

Fuel75.7 LReference

Fuel112.0 LReference

Max capacity4604 kgReference

Max capacity5499 kgReference

Dimensions

2WD Wheelbase225 cmReference

4WD Wheelbase223 cmReference

Weight6687 to 7395 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference

4WD Standard tires (ag)Front: 8.3-24. Rear: 16.9-28Reference

Front tread132 to 195 cmReference

Front tread121 to 203 cmReference

Front tread132 to 203 cmReference

Front tread132 to 195 cmReference

Front tread223 to 243 cmReference

Shipping3033 kgReference

Shipping3354 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging amps65 (cab, ROPS opt.)Reference

Battery CCA650Reference

Battery CCA810Reference

Battery volts12Reference

Speeds

With 18.4x30 rear tires.Reference

With With 18.4x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
