Tractor · 1994Unverified

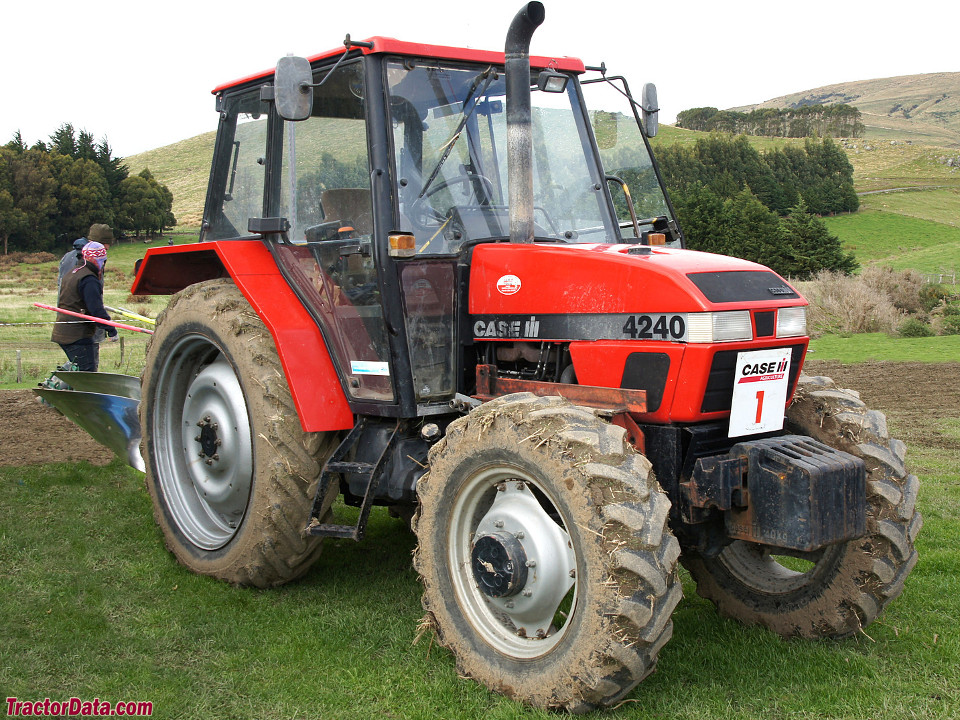

CaseIH 4240

Name: CaseIH 4240
Brand: CaseIH

CaseIH 4240 — Utility tractor · 104 hp. Reference specifications; pending source verification.

The CaseIH 4240 is a tractor model with a rated output of 104 hp, placing it within the middle range of its class in terms of power. It was manufactured from 1994 to 1997. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a hydrostatic transmission. Its listed weight ranges from 6687 to 7395 pounds, and it is designed for use on plots of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

104 hp

Weight

6687 to 7395 pounds

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

104 hp

Transmissions

8-speed synchromesh

Production years

1994-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Original price was $32,000 in 1997Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

ROPS Differential lockmechanicalReference

Cab Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Case 4.4L 4-cyl dieselReference

Engine (gross)77.6 kWReference

Engine (net)73.8 kWReference

Case DT268Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Power (net)73.8 kWReference

Power (gross)77.6 kWReference

Air cleanerdryReference

Pre-heatingthermostart (optional)Reference

Pre-heatingether (optional)Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity9.8 LReference

Oil change100 hReference

Coolant capacity13.7 LReference

Transmission

8-speed synchromeshReference

8-speed shuttleReference

16-speed partial power shiftReference

16-speed synchromesh creeperReference

TypesynchromeshReference

Gears8 forward and 4 reverseReference

Clutch12-inch dry cerametallicReference

2WD Oil capacity34.0 LReference

4WD Oil capacity36.5 LReference

Four gears (1-4) in two ranges (L/H) plus reverse range.Reference

TypeshuttleReference

Gears8 forward and reverseReference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Four gears (1-4) in two ranges (L/H) plus reverse with high-low (rabbit/turtle) power-shift activated by dashboard toggle switch.Reference

Typesynchromesh creeperReference

Adds creeper range to the standard synchromesh gear box. Four gears (1-4) in two ranges (L/H) plus reverse in normal and creeper modes.Reference

PTO & Hydraulics

PTO (claimed)63.4 kWReference

2WD Hydraulic system34.1 LReference

Cab Hydraulic system36.7 LReference

Typeopen centerReference

2WD Capacity34.1 LReference

Cab Capacity36.7 LReference

Pressure172.4 barReference

Valves0 to 3Reference

Total flow60.9 lpmReference

Total flow69.6 lpmReference

Rear TypeIIReference

Controldraft and position controlReference

Rear lift1662 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Capacities

Fuel75.7 LReference

Fuel112.0 LReference

ROPS Max capacity4604 kgReference

Cab Max capacity5499 kgReference

Dimensions

2WD Wheelbase225 cmReference

4WD Wheelbase223 cmReference

Weight6687 to 7395 poundsReference

Front tire7.50-16Reference

2WD Rear tire16.9-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference

4WD Standard tires (ag)Front: 8.3-24. Rear: 16.9-28Reference

Front tread132 to 195 cmReference

Front tread121 to 203 cmReference

Front tread132 to 203 cmReference

Front tread132 to 195 cmReference

Front tread223 to 243 cmReference

2WD ROPS Shipping3033 kgReference

2WD ROPS Shipping3354 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging amps65 (cab, ROPS opt.)Reference

Battery CCA650Reference

Battery CCA810Reference

Battery volts12Reference

Speeds

With 18.4x30 rear tires.Reference

With With 18.4x30 rear tires. Speeds in direct mode same as regular synchromesh transmission.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
