Tractor · 1984Unverified

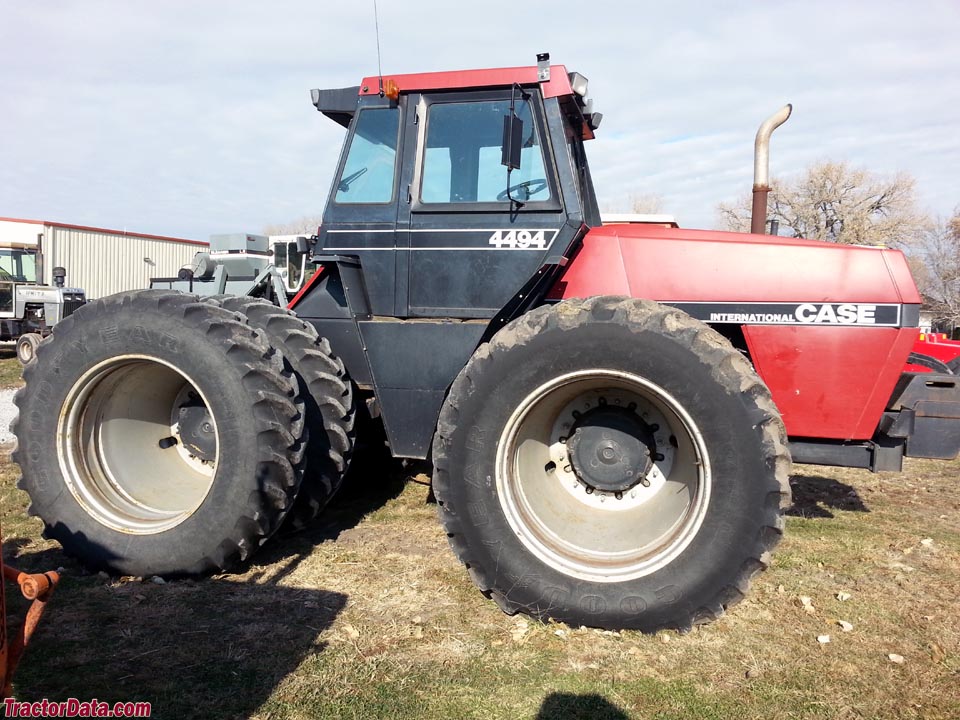

CaseIH 4494
CaseIH 4494 — 4WD 94 Series · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Max power
112.0 kW
Weight
9453 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Racine, Wisconsin, USAReference
Original price$74,600 (1987)Reference
Drive4x4 4WDReference
Steeringhydraulic, front, rear or four-wheel crab steeringReference
Hydraulic dry disc brakesReference
Silent Guardian cab standardReference
Engine
Case 8.3L 6-cyl dieselReference
Engine158.8 kWReference
Drawbar (tested)112.0 kWReference
CaseReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power158.8 kWReference
Air cleanerdual paper elementsReference
Compression15.8:1Reference
Rated RPM2200Reference
Torque759.4 NmReference
Torque RPM1650Reference
Starter volts12Reference
Oil capacity22.7 LReference
Coolant capacity45.4 LReference
Power at rated engine speed130.6 kWReference
Max power112.0 kWReference
Transmission
12-speed partial power shiftReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discReference
Four ranges (1-4) with three power shift gears (1-3) plus reverse in each range. Both shift levers mounted on the dashboard. Range shift lever is to the left in a H-pattern. Gear shift is an inline pattern on the right.Reference
PTO & Hydraulics
PTO (claimed)130.5 kWReference
PTO (tested)130.6 kWReference
Hydraulic system58.7 LReference
Typeclosed centerReference
Capacity58.7 LReference
Pressure162.0 barReference
Valves2 to 4Reference
Total flow117.3 lpmReference
Rear TypeIII (optional)Reference
Rear lift (at 24"/610mm)5783 kgReference
Rear PTOindependent (optional)Reference
Rear PTO Type1000Reference
Engine RPM1000@2200Reference
Capacities
Fuel484.5 LReference
Dimensions
Wheelbase259 cmReference
Weight9453 kgReference
Front tire18.4-34Reference
Rear tire18.4-34Reference
Ag front18.4-34Reference
Ag rear18.4-34Reference
Length571 cmReference
Width243 cmReference
Width363 cmReference
Height (exhaust)317 cmReference
Operating weight9453 kgReference
Ballasted weight10183 kgReference
Ground clearance45 cmReference
Front tread187 to 312 cmReference
Rear tread187 to 312 cmReference
4494 Serial Numbers
Location:Data plates located at forward-right corner in top of the tractor cab.Reference
19848865000 (JI Case)Reference
19858866200Reference
19868866971Reference
19878867559Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDOctober 15 - 20, 1979Link: Nebraska Tractor Test 1328 fileReference
PTO performanceReference
Fuel use43.5 l/hourReference
Drawbar performanceReference
Fuel use42.8 l/hourReference
Gear 3-2 used for power test.Reference
Max pull9707 kgReference
Gear 1-2 used for pull test.Reference
Speeds
With 23.1x30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
