Tractor · 1985Unverified

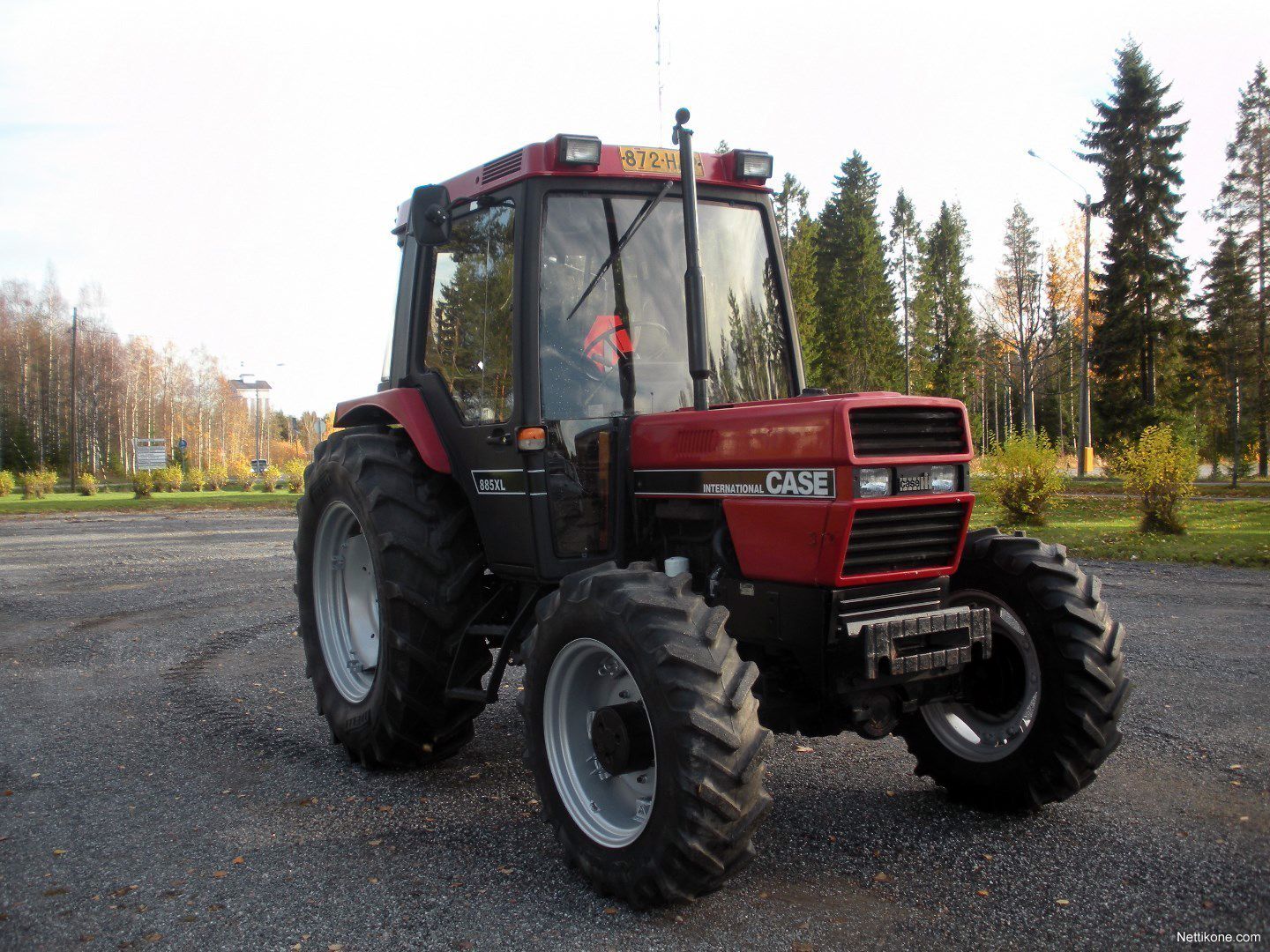

CaseIH 485XL

Name: CaseIH 485XL
Brand: CaseIH

CaseIH 485XL — 85 XL Series · 41 hp. Reference specifications; pending source verification.

The CaseIH 485XL is a tractor model rated at approximately 41 hp, classified as a lighter model within its range. It was manufactured from 1985 to 1990. The tractor features a 3-cylinder diesel liquid-cooled engine coupled with a two-wheel drive and hydrostatic transmission. It has a listed operating weight of 2549 kg and is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

41 hp

Weight

2549 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

41 hp

Recorded weight

2549 kg

Transmissions

8-speed synchromesh

Production years

1985-1990

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Two-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Secura cab standard.Reference

Engine

CaseIH 2.9L 3-cyl dieselReference

Fuel tank112.0 LReference

Engine38.8 kWReference

CaseIH D-179Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke99 x 129 mmReference

Power38.8 kWReference

Compression15:1Reference

Rated RPM2180Reference

Idle RPM815-2180Reference

Torque182.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity11.4 LReference

Transmission

8-speed synchromeshReference

16-speed two-speed power shiftReference

TypesynchromeshReference

Gears8 forward and 4 reverseReference

Clutch280mm dry discReference

Four synchronized gears in two ranges, plus reverse range.Reference

TransmissionTorque AmplifierReference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. Two-speed torque amplifier provides an on-the-move shift to a lower speed.Reference

PTO & Hydraulics

PTO (claimed)30.6 kWReference

Pressure172.4 barReference

Pump flow46.9 lpmReference

Steering flow9.8 lpmReference

Steering press.106.9 barReference

Rear TypeII/IReference

ControlTop link draft sensing.Reference

Rear lift1678 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540Reference

Engine RPM540@1936Reference

Dimensions

Wheelbase213 cmReference

Weight2549 kgReference

Front tire7.50-16Reference

Rear tire12.4-36Reference

Standard tires (ag)Front: 7.50-16. Rear: 12.4-36Reference

Length361 cmReference

Height (cab)251 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery CCA420Reference

Battery volts12Reference

Battery AH95Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
