Tractor · 1984Unverified

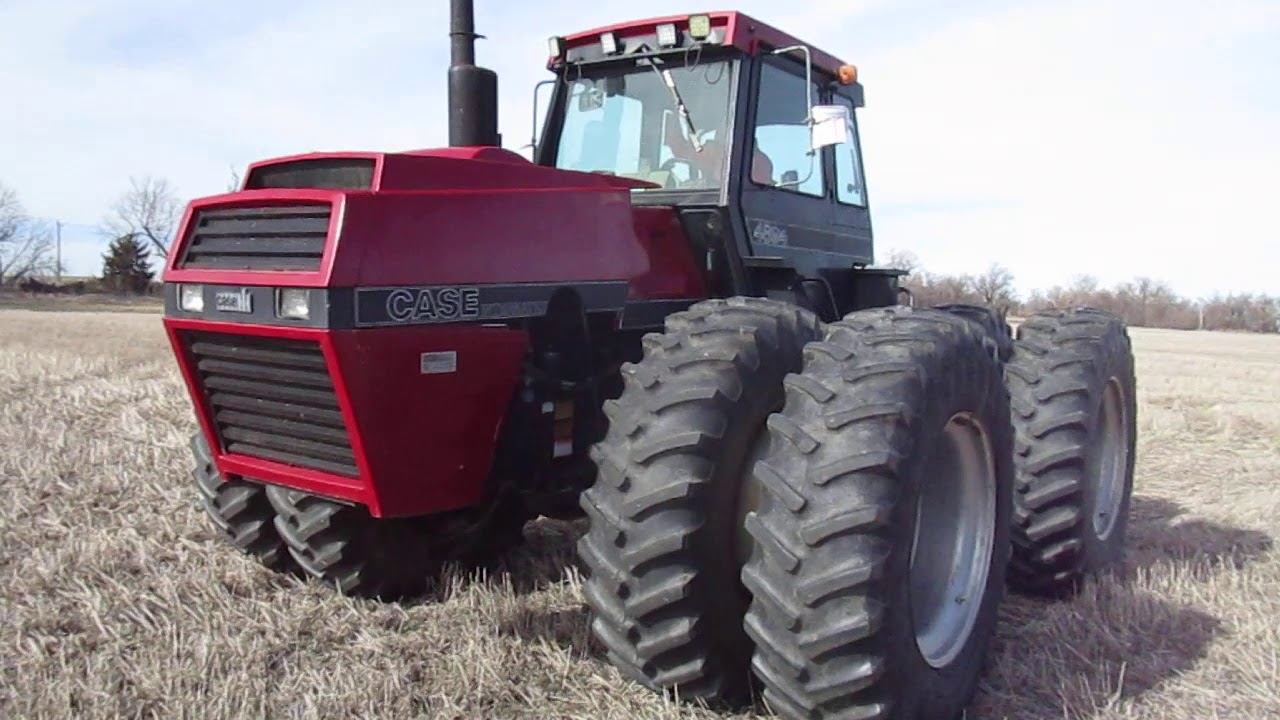

CaseIH 4894
CaseIH 4894 — 4WD 94 Series · 253 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
253 hp
Max power
163.1 kW
Weight
11680 kg
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Four-wheel Drive (4WD) tractorReference
Built in Racine, Wisconsin, USAReference
Total built872Reference
Original price$95,000 (1987)Reference
Drive4x4 4WDReference
Steeringhydraulic, front, rear or four-wheel crab steeringReference
Hydraulic dry disc brakesReference
Silent Guardian cab standardReference
Engine
Saab-Scania 11.0L 6-cyl dieselReference
Engine223.7 kWReference
Drawbar (tested)163.1 kWReference
Saab-ScaniaReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement11.0 LReference
Bore/Stroke127 x 145 mmReference
Power223.7 kWReference
Air cleanerdual paper elementsReference
Compression14.7:1Reference
Rated RPM2200Reference
Torque1145.8 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity45.4 LReference
Coolant capacity41.6 LReference
Power at rated engine speed189.0 kWReference
Max power163.1 kWReference
Transmission
12-speed partial power shiftReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discReference
Four ranges (1-4) with three power shift gears (1-3) plus reverse in each range. Both shift levers mounted on the dashboard. Range shift lever is to the left in a H-pattern. Gear shift is an inline pattern on the right.Reference
PTO & Hydraulics
PTO (claimed)188.7 kWReference
PTO (tested)189.0 kWReference
Hydraulic system68.1 LReference
Typeclosed centerReference
Capacity68.1 LReference
Pressure162.0 barReference
Valves4Reference
Total flow102.2 lpmReference
Rear TypeIII (optional)Reference
Rear lift (at 24"/610mm)5783 kgReference
Rear PTOindependent (optional)Reference
Rear PTO Type1000Reference
Engine RPM1000@2200Reference
Capacities
Fuel567.8 LReference
Dimensions
Wheelbase279 cmReference
Weight11680 kgReference
Front tire18.4-34Reference
Rear tire18.4-34Reference
Ag front18.4-34Reference
Ag rear18.4-34Reference
Length601 cmReference
Width251 cmReference
Width335 cmReference
Height (exhaust)317 cmReference
Operating weight11680 kgReference
Ballasted weight12909 kgReference
Ground clearance45 cmReference
4894 Serial Numbers
Location:Data plates located at forward-right corner in top of the tractor cab.Reference
19848865000 (JI Case)Reference
19858866200Reference
19868866971Reference
19878867559Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 12-speed 4WDOctober 22 - 29, 1979Link: Nebraska Tractor Test 1330 fileReference
PTO performanceReference
Fuel use58.7 l/hourReference
Drawbar performanceReference
Fuel use58.3 l/hourReference
Gear 3-2 used for power test.Reference
Max pull12531 kgReference
Gear 1-2 used for pull test.Reference
Speeds
With 23.1x30 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
