Tractor · 1991Unverified

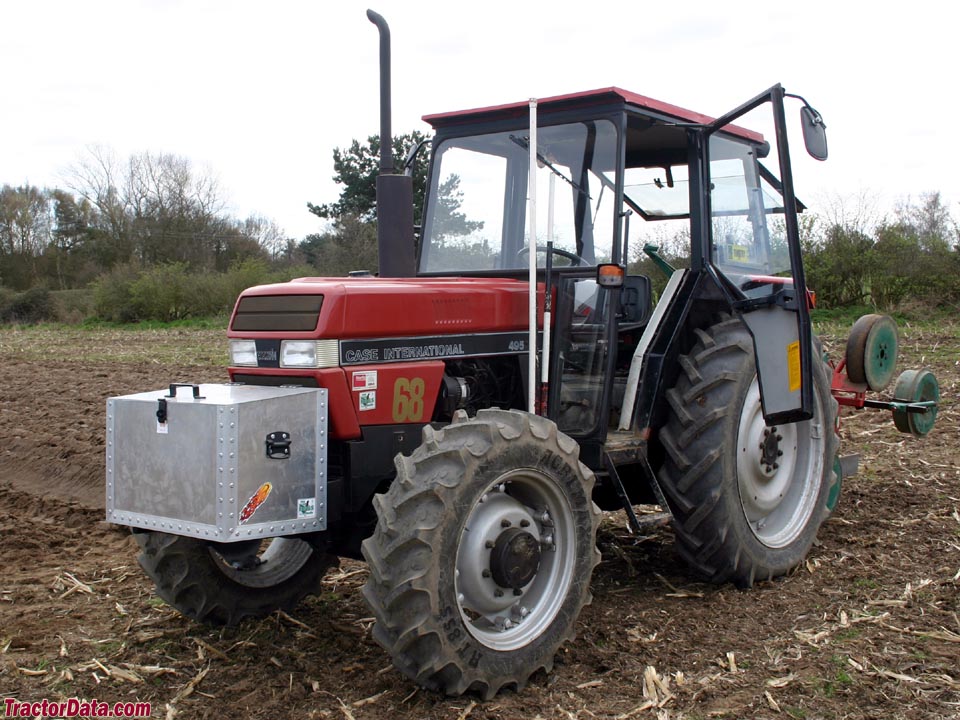

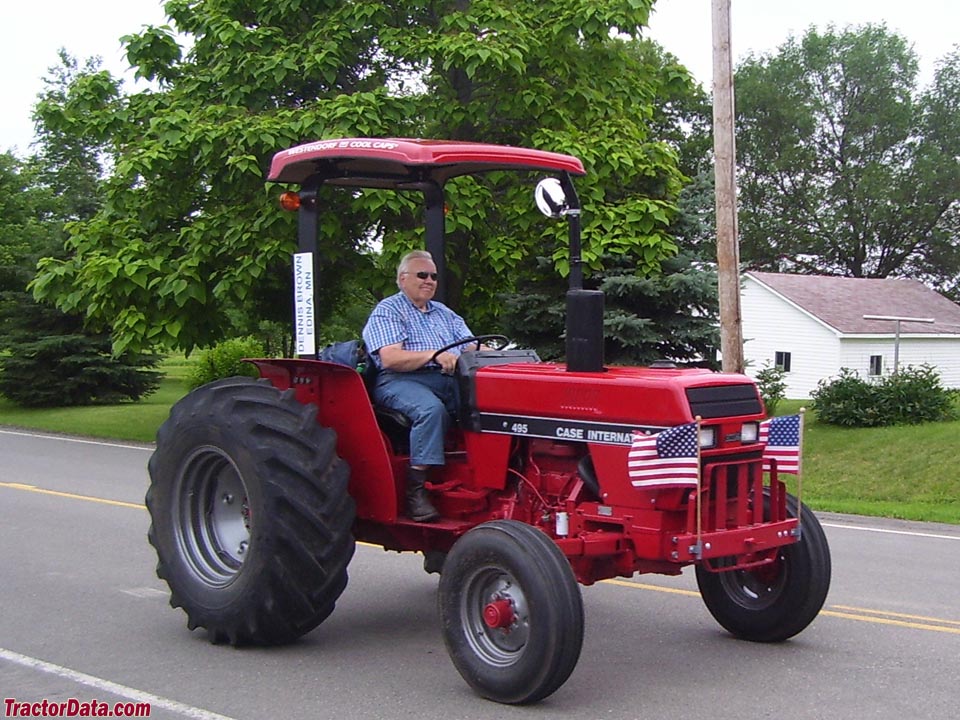

CaseIH 495

Name: CaseIH 495
Brand: CaseIH

CaseIH 495 — 95 Utility Series · 53 hp. Reference specifications; pending source verification.

The CaseIH 495 is a tractor model rated at approximately 53 horsepower, which positions it at the lower end of its class. It was manufactured between 1991 and 1994. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a powershift transmission. Its operating weight ranges from 5200 to 6090 pounds, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

53 hp

Weight

5200 to 6090 pounds

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

53 hp

Recorded weight

2358 kg

Transmissions

8-speed partially synchronized

Production years

1991-1994

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Original price was $19,000 in 1994Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post ROPS.Reference

Engine

Case IH 2.9L 3-cyl dieselReference

Engine (gross)39.5 kWReference

Engine (net)37.3 kWReference

Case IH D-179Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke99 x 129 mmReference

Power (net)37.3 kWReference

Power (gross)39.5 kWReference

Rated RPM2200Reference

Idle RPM700-2400Reference

Starter volts12Reference

Oil capacity7.8 LReference

Coolant capacity11.4 LReference

Transmission

8-speed partially synchronizedReference

16-speed partial power shiftReference

8-speed synchronized shuttleReference

16-speed creeperReference

Typepartially synchronizedReference

Gears8 forward and 4 reverseReference

Clutchdry discReference

Oil capacity34.1 LReference

Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.Reference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.Reference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Four gears each in high and low ranges, both forward and reverse.Reference

TypecreeperReference

Four gears with high, low, and reverse ranges plus direct or creeper mode.Reference

PTO & Hydraulics

PTO (claimed)31.3 kWReference

Hydraulic system34.1 LReference

Typeopen centerReference

Capacity34.1 LReference

Valves1Reference

Pump flow59.0 lpmReference

Rear TypeII/IReference

Rear lift1061 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Capacities

Fuel75.7 LReference

Dimensions

Wheelbase202 cmReference

Weight5200 to 6090 poundsReference

Front tire6.00-16Reference

Rear tire14.9-24Reference

Ag front6.00-16Reference

Ag rear14.9-24Reference

Length345 cmReference

Width167 cmReference

Height (ROPS)237 cmReference

2WD Shipping weight2358 kgReference

4WD Shipping weight2762 kgReference

2WD Clearance (front axle)56 cmReference

4WD Clearance (front axle)35 cmReference

CaseIH 495 attachments

front-end loaderReference

495 Serial Number Location

Above the front axle on the right.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

Case IH 2200 loaderReference

Case IH 2250 loaderReference

Speeds

With 13.6x28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
