Tractor · 1984Unverified

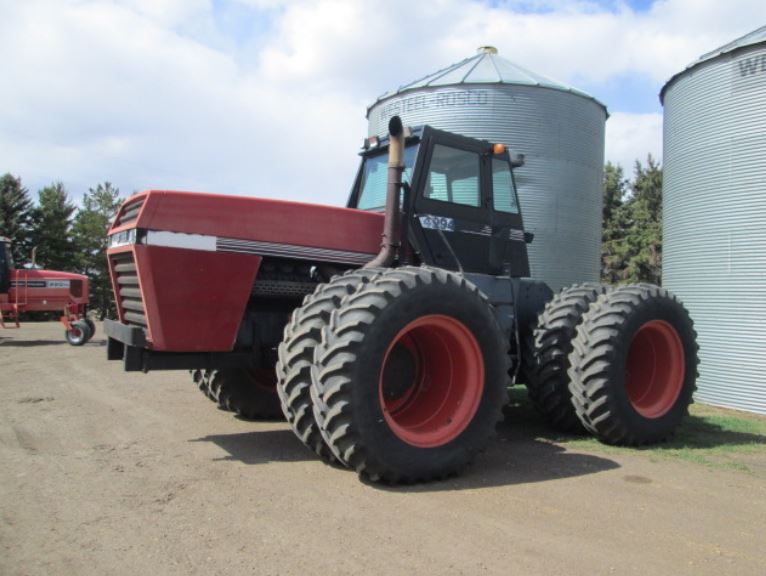

CaseIH 4994

Name: CaseIH 4994
Brand: CaseIH

CaseIH 4994 — 4WD 94 Series · 344 hp. Reference specifications; pending source verification.

The CaseIH 4994 is a tractor with a rated power output of 344 hp, categorising it at the high-power end of its class. This model was manufactured from 1984 to 1987. It features an 8-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its listed operating weight ranges from 26500 to 31315 pounds, and it is suited to operations of 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

344 hp

Max power

219.4 kW

Weight

26500 to 31315 pounds

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

344 hp

Transmissions

12-speed full power shift

Production years

1984-1987

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Four-wheel Drive (4WD) tractorReference

Built in Racine, Wisconsin, USAReference

Total built224Reference

Original price$130,000 (1987)Reference

Drive4x4 4WDReference

Steeringhydraulic, front, rear or four-wheel crab steeringReference

Hydraulic dual caliper disc brakesReference

Silent Guardian cab standardReference

Engine

Saab-Scania 14.2L 8-cyl dieselReference

Engine298.3 kWReference

Drawbar (tested)219.4 kWReference

Saab-ScaniaReference

turbocharged dieselReference

8-cylinderReference

liquid-cooledReference

Displacement14.2 LReference

Bore/Stroke127 x 140 mmReference

Power298.3 kWReference

Air cleanerdual paper elementsReference

Compression15.5:1Reference

Rated RPM2100Reference

Torque1545.8 NmReference

Torque RPM1300Reference

Firing order1-5-4-2-6-3-7-8Reference

Starter volts12Reference

Coolant capacity83.3 LReference

Intake valve clearance0.457 mmReference

Exhaust valve clearance0.787 mmReference

Oil capacity25.6 LReference

Power at rated engine speed256.5 kWReference

Max power219.4 kWReference

Transmission

12-speed full power shiftReference

Typefull power shiftReference

Gears12 forward and 2 reverseReference

Clutchhydraulic wet discReference

Oil capacity59.6 LReference

Oil capacity55.8 LReference

Oil typeCase Powergard PTFReference

Electronically-controlled Case power shift transmission operated with single control lever and inching pedal. The inching pedal must be depressed to move from park/neutral into first gear. Tractor must be moving in first gear before higher gears can be selected. Gear changes made by pushing control lever into upshift or downshift position. Control lever can be held in upshift/downshift position for multiple gear changes.Reference

PTO & Hydraulics

PTO (claimed)256.5 kWReference

PTO (tested)256.5 kWReference

Hydraulic system100.3 LReference

Typeclosed centerReference

Capacity100.3 LReference

Pressure137.9 barReference

Valves4Reference

Total flow132.5 lpmReference

Steering flow75.7 lpmReference

Steering press.137.9 barReference

Rear PTOindependent (optional)Reference

Rear PTO Type1000Reference

Engine RPM1000@2100Reference

Capacities

Fuel1135.5 LReference

Front hubs12.8 LReference

Front diff.16.1 LReference

Rear hubs12.8 LReference

Rear diff.21.3 LReference

Max capacity18144 kgReference

Dimensions

Wheelbase316 cmReference

Weight26500 to 31315 poundsReference

Front tire24.5-32Reference

Rear tire24.5-32Reference

Ag front24.5-32Reference

Ag rear24.5-32Reference

Ag front20.8-38Reference

Ag front20.8-42Reference

Ag front23.1-34Reference

Ag front30.5-32Reference

Ag rear20.8-38Reference

Ag rear20.8-42Reference

Ag rear23.1-34Reference

Ag rear30.5-32Reference

Length664 cmReference

Width297 cmReference

Width396 cmReference

Height (exhaust)351 cmReference

Clearance (drawbar)36 cmReference

Shipping12020 kgReference

Operating14204 kgReference

Ballasted18112 kgReference

4994 Serial Numbers

Location:Data plates located at forward-right corner in top of the tractor cab.Reference

19848865000 (JI Case)Reference

19858866200Reference

19868866971Reference

19878867559Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps105Reference

Batteries2Reference

Battery volts12Reference

Battery AH300Reference

Battery Group30HReference

Test results

Diesel 12-speed 4WDJune 9 - 27, 1984Link: Nebraska Tractor Test 1530 fileReference

PTO performanceReference

Fuel use76.5 l/hourReference

Drawbar performanceReference

Fuel use76.1 l/hourReference

Gear 6 used for power test.Reference

Max pull15657 kgReference

Gear 2 used for pull test.Reference

Speeds

With 20.5-32 tiresReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
