CaseIH 5120 Maxxum
CaseIH 5120 Maxxum — Maxxum Series · 77 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
77 hp
Weight
8820 to 10362 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Neuss, GermanyReference
Original price$28,500 (1991)Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockelectrically activatedReference
Power steeringReference
Hydraulic wet disc brakesReference
Flat-deck platform with two-post ROPS. Optional canopy or foldable ROPS. Cab optional with air-conditioning.Reference
Engine
CDC 3.9L 4-cyl dieselReference
Fuel tank135.1 LReference
Fuel tank170.3 LReference
Engine65.6 kWReference
CDCReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Power65.6 kWReference
Pre-heatingoil pan heater (optional)Reference
Pre-heatingcoolant heater (optional)Reference
Rated RPM2200Reference
Idle RPM850-2355Reference
Starter volts12Reference
Oil change250 hReference
Coolant change250 hReference
Transmission
16-speed fully synchronizedReference
16-speed partial power shiftReference
24-speed creeperReference
Typefully synchronizedReference
Gears16 forward and 12 reverseReference
Four speeds (1-4) in four ranges (I-IV). Synchronized shifting between speeds and ranges with the clutch. Power shuttle shifting with column-mounted left-hand reverser lever.Reference
Typepartial power shiftReference
Four speeds (1-4) in four ranges (I-IV). Power shift between speeds in range. Ranges are synchronized with clutch. Power shuttle shifting with column-mounted left-hand reverser lever.Reference
TypecreeperReference
Gears24 forward and 20 reverseReference
The optional creeper range could be added to the synchronized or power shift transmission. Creeper adds an additional eight (8) gears forward and reverse.Reference
PTO & Hydraulics
PTO (claimed)57.4 kWReference
Typeclosed center pressure flow compensatedReference
Pressure179.3 barReference
Valves1 to 3Reference
Total flow76.1 lpmReference
Rear TypeIIReference
Controllower linkReference
Rear lift (at 24"/610mm)3492 kgReference
Front HitchIIReference
Front lift (at 24"/610mm)2358 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase239 cmReference
4WD Wheelbase234 cmReference
Weight8820 to 10362 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
2WD Length409 cmReference
4WD Length416 cmReference
Shipping weight4000 kgReference
Shipping weight4700 kgReference
2WD Clearance (front axle)56 cmReference
4WD Clearance (front axle)43 cmReference
Clearance (drawbar)45 cmReference
Bar rear axle2438 mmReference
Front tread152 to 223 cmReference
Rear tread152/162/172/182/193/223 cmReference
Rear tread152 to 254 cmReference
Steering wheel199 cmReference
CaseIH 5120 attachments

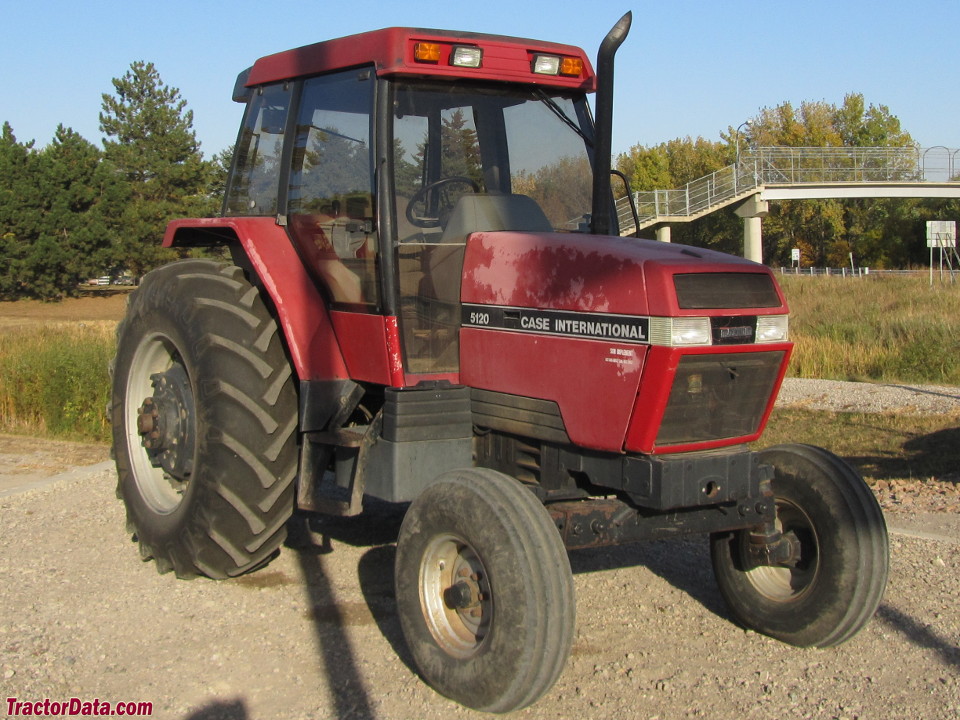

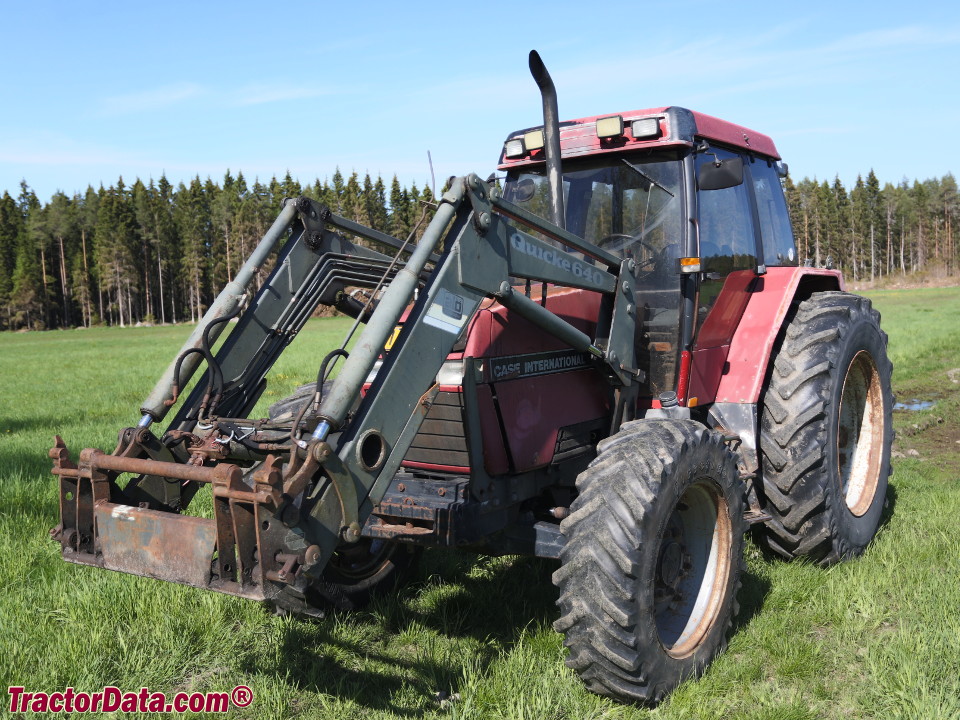

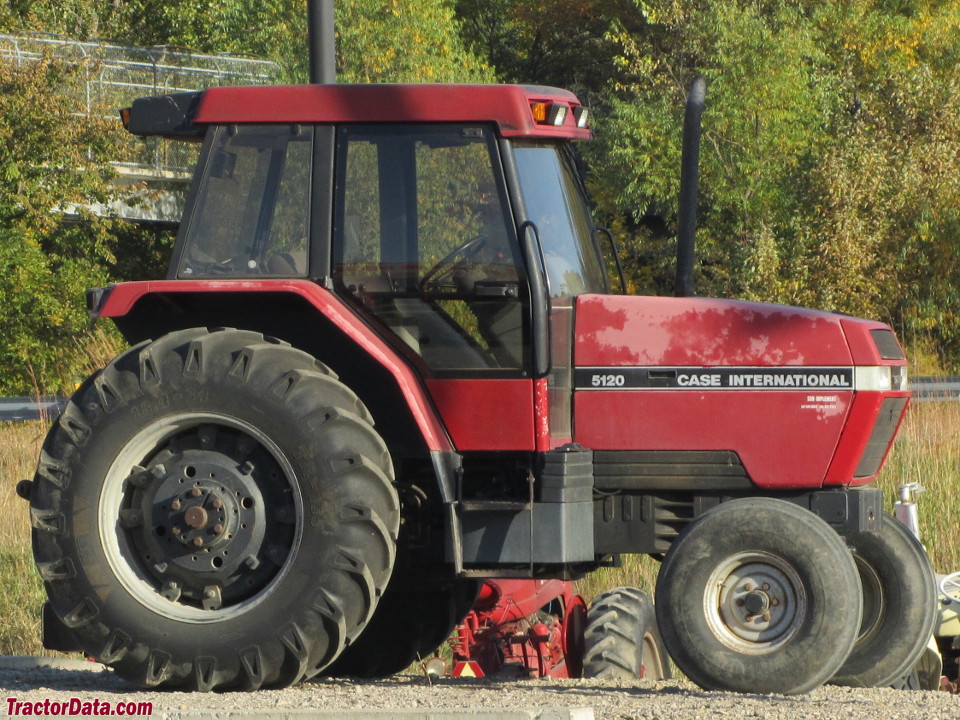

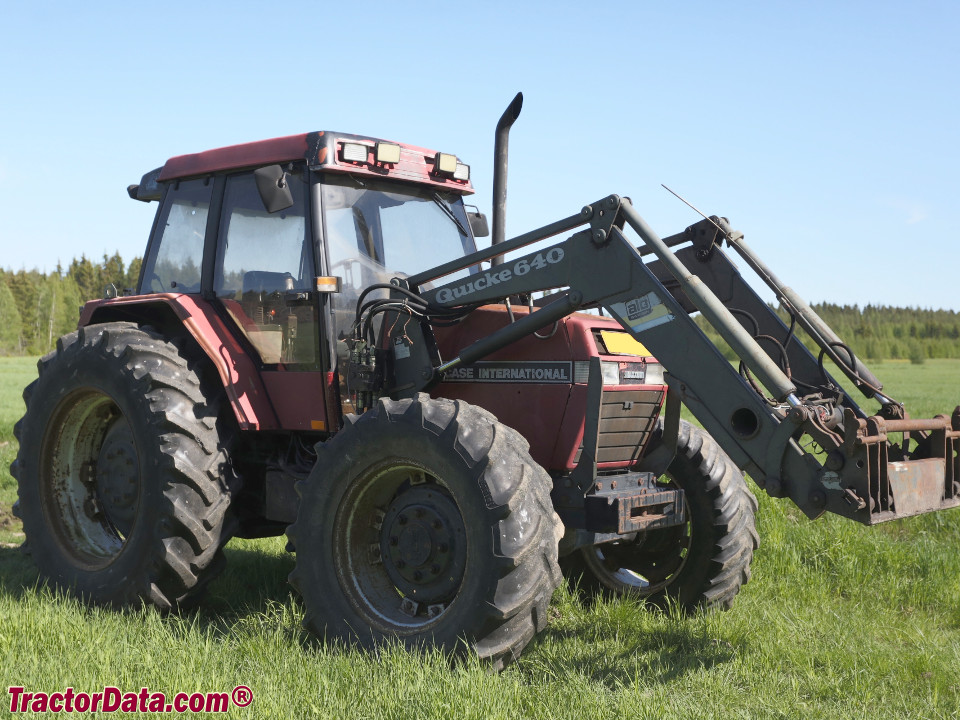

front-end loaderReference
5120 Serial Numbers
Location:Serial number inside the cab on the left side.Reference
1990JJF1000001Reference
1991JJF1006114Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
CaseIH 5120 Height
Hood174 cmReference
Cab267 cmReference
Exhaust271 cmReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
