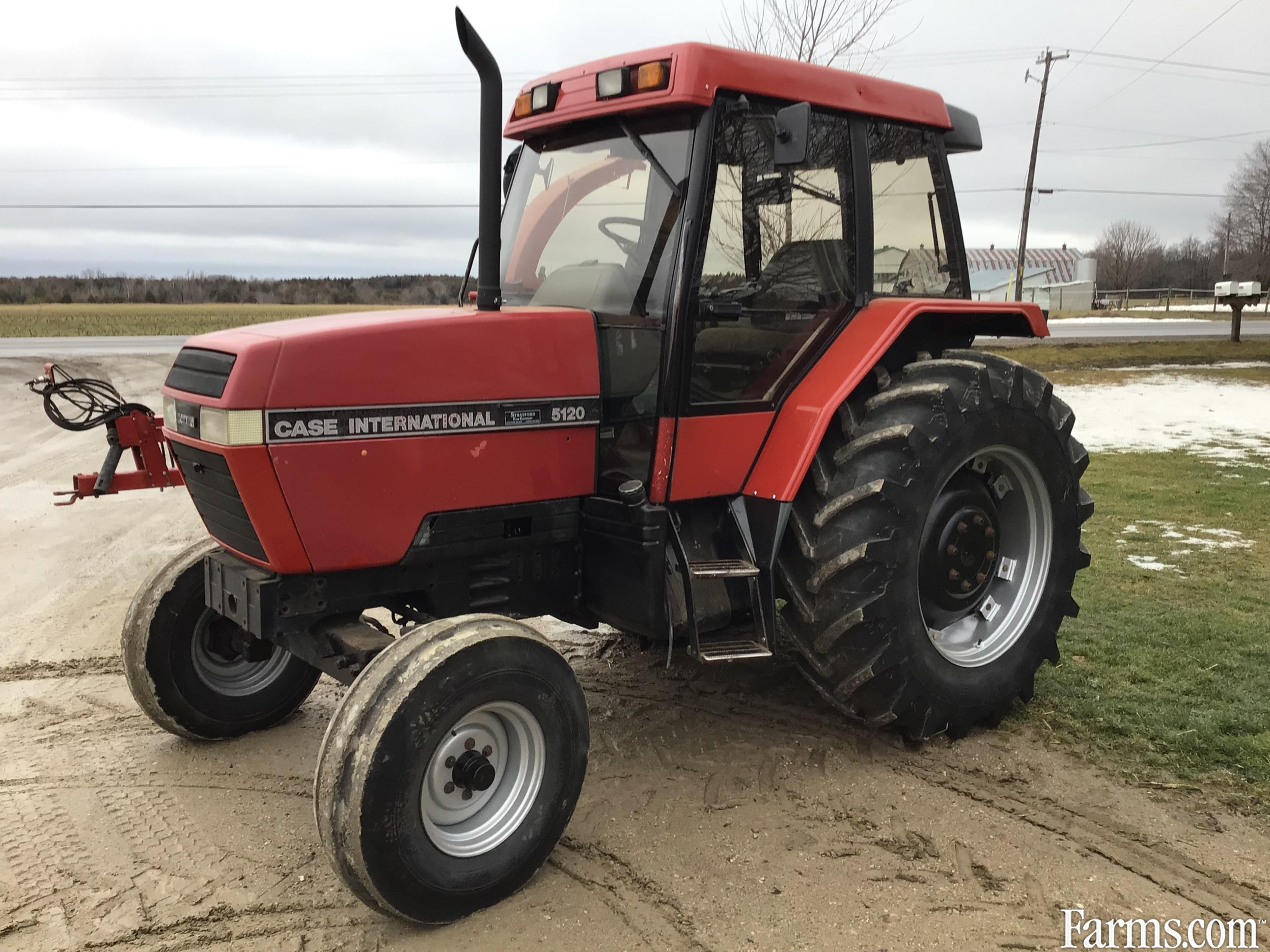

CaseIH 5120HC
CaseIH 5120HC — Maxxum Series · 77 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
77 hp
Weight
9666 to 10856 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
High-Clearance tractorReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Canopy available. Cab optional with air-conditioning.Reference
Engine
CDC 3.9L 4-cyl dieselReference
Fuel tank135.1 LReference
Fuel tank170.3 LReference
Engine70.1 kWReference
CDC 4 TA 390Reference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Power70.1 kWReference
Fuel systemdirect-injectionReference
Pre-heatingcoolant heaterReference
Rated RPM2200Reference
Idle RPM850-2355Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronizedReference
16-speed four-speed power shiftReference
24-speed creeperReference
24-speed super creeperReference
TypesynchronizedReference
Gears16 forward and 12 reverseReference
Four synchronized gears gears in four synchronized ranges with power shuttle.Reference
Typefour-speed power shiftReference
Four power shift gears gears in four synchronized ranges with power shuttle.Reference
TypecreeperReference
Gears24 forward and 20 reverseReference
Additional creeper range (8 speeds forward and reverse) available with the synchronized or power shift transmission.Reference
Typesuper creeperReference
Additional ultra-slow creeper range (8 speeds forward and reverse) available with the synchronized or power shift transmission. With the super creeper option the direct-drive gear speeds are also approximately 15% slower than the base transmission.Reference
PTO & Hydraulics
PTO (claimed)57.4 kWReference
Typepressure flow compensatedReference
Pressure1.9 barReference
Valves1 to 3Reference
Pump flow76.1 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)3492 kgReference
Front HitchIIReference
Front lift (at 24"/610mm)2358 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase234 cmReference
Weight9666 to 10856 poundsReference
Front tire13.6-36Reference
Rear tire13.6-46Reference
Standard tires (ag)Front: 13.6-36. Rear: 13.6-46Reference
ROPS Shipping weight4384 kgReference
Cab Shipping weight4924 kgReference
Clearance (front axle)57 cmReference
Clearance (rear axle)60 cmReference
Clearance (drawbar)45 cmReference
Bar rear axle2438 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 254 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Speeds
With 13.6-46 rear tires. Reverse speeds are approximately 20% faster than forward.Reference
With 13.6-46 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
