Tractor · 1990Unverified

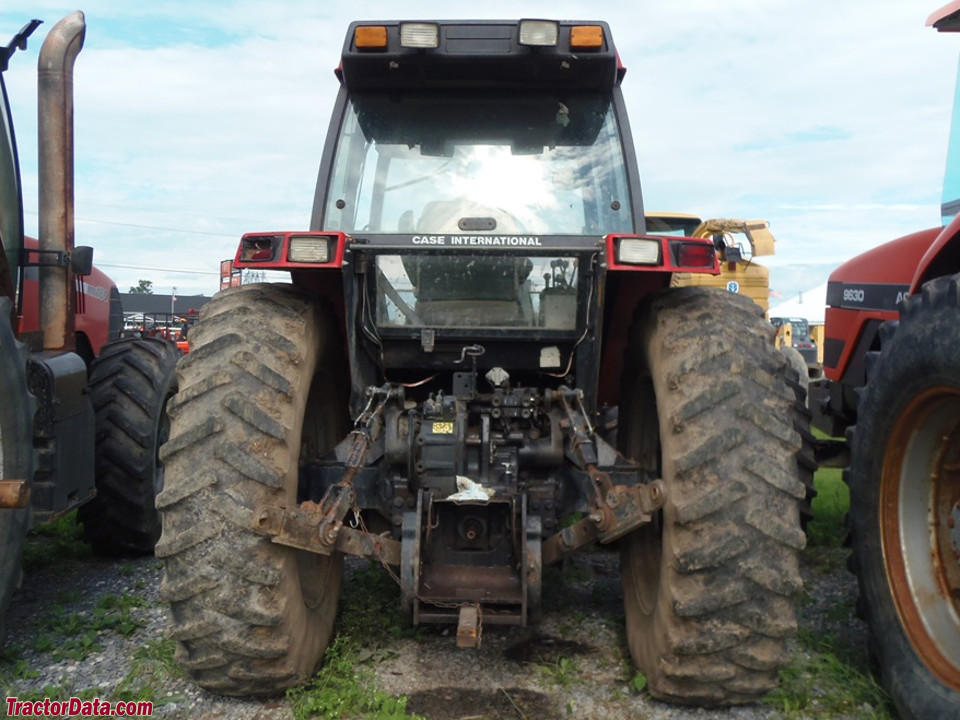

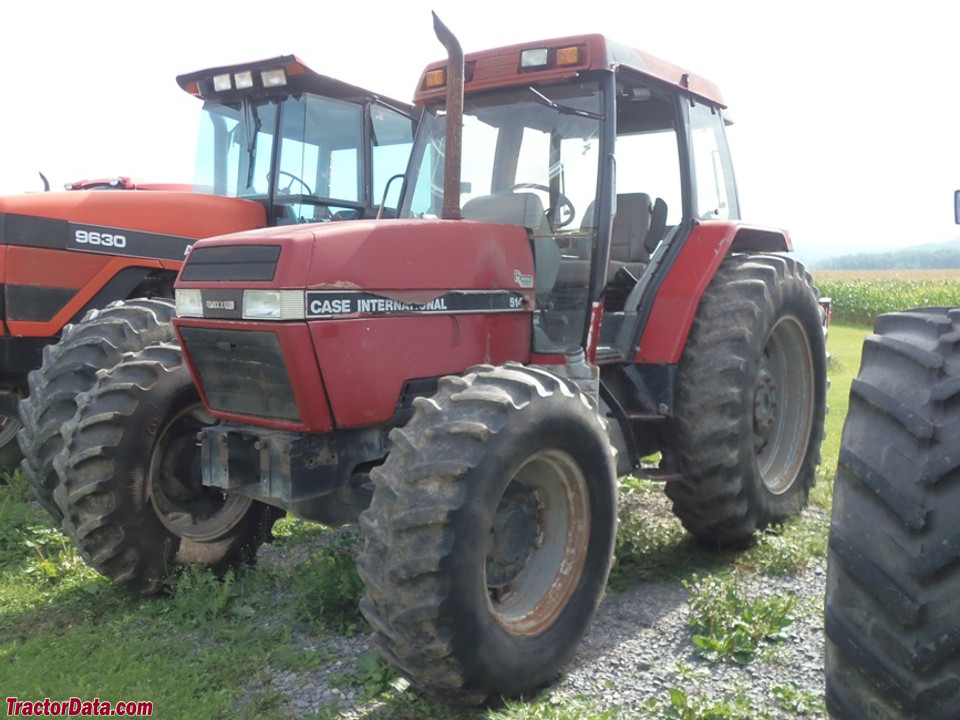

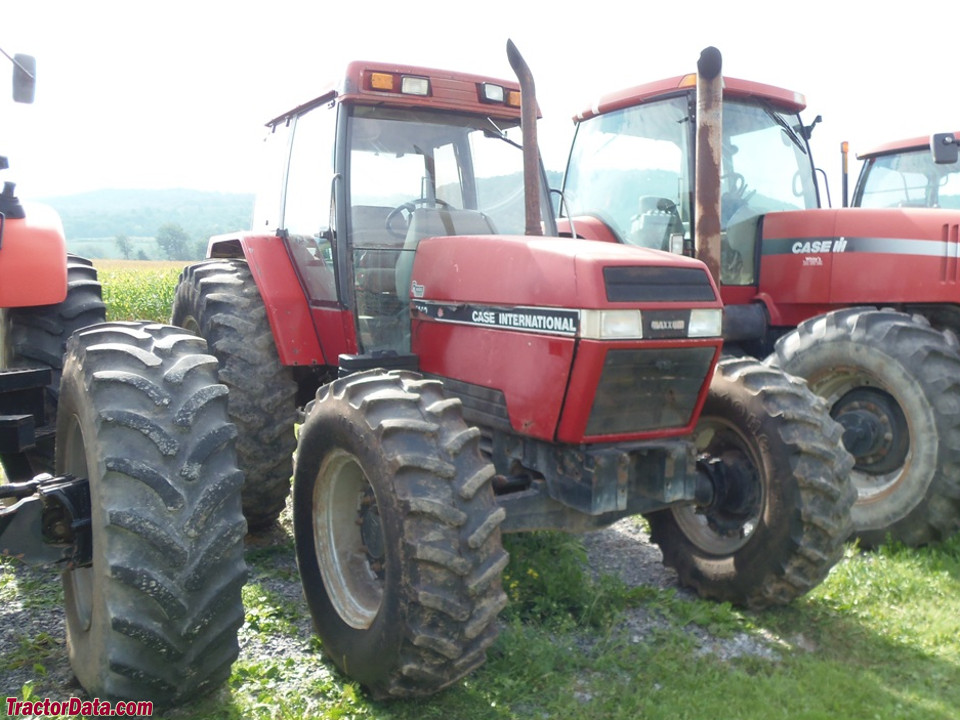

CaseIH 5140 Maxxum

Name: CaseIH 5140 Maxxum
Brand: CaseIH

CaseIH 5140 Maxxum — Maxxum Series · 94 hp. Reference specifications; pending source verification.

The CaseIH 5140 Maxxum is a tractor model rated at 94 hp, positioning it in the middle of its class for power output. Manufactured between 1990 and 1991, this model features a 6-cylinder turbocharged diesel liquid-cooled engine. It is equipped with a powershift transmission and four-wheel drive. The listed weight of the 5140 Maxxum is between 9810 and 10826 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

94 hp

Weight

9810 to 10826 pounds

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

94 hp

Recorded weight

4449 kg

Transmissions

16-speed fully synchronized

Production years

1990-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Neuss, GermanyReference

Original price was $34,000 in 1991Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockelectrically activatedReference

Power steeringReference

Hydraulic wet disc brakesReference

Flat-deck platform with two-post fixed ROPS. Optional canopy or foldable ROPS. Cab optional with air-conditioning.Reference

Engine

CDC 5.9L 6-cyl dieselReference

Fuel tank135.1 LReference

Fuel tank170.3 LReference

Engine80.9 kWReference

CDCReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke102 x 120 mmReference

Power80.9 kWReference

Air cleanerdryReference

Rated RPM2200Reference

Idle RPM850-2355Reference

Starter volts12Reference

Oil change250 hReference

Coolant change250 hReference

Transmission

16-speed fully synchronizedReference

16-speed partial power shiftReference

24-speed creeperReference

Typefully synchronizedReference

Gears16 forward and 12 reverseReference

Four speeds (1-4) in four ranges (I-IV). Synchronized shifting between speeds and ranges with the clutch. Power shuttle shifting with column-mounted left-hand reverser lever.Reference

Typepartial power shiftReference

Four speeds (1-4) in four ranges (I-IV). Power shift between speeds in range. Ranges are synchronized with clutch. Power shuttle shifting with column-mounted left-hand reverser lever.Reference

TypecreeperReference

Gears24 forward and 20 reverseReference

The optional creeper range could be added to the synchronized or power shift transmission. Creeper adds an additional eight (8) gears forward and reverse.Reference

PTO & Hydraulics

PTO (claimed)70.1 kWReference

Typeclosed center pressure flow compensatedReference

Pressure179.3 barReference

Valves1 to 4Reference

Total flow76.1 lpmReference

Rear TypeIIReference

Controllower linkReference

Rear lift (at 24"/610mm)3492 kgReference

Front HitchIIReference

Front lift (at 24"/610mm)2358 kgReference

Rear PTOindependentReference

Clutchhydraulic wet discReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase263 cmReference

4WD Wheelbase258 cmReference

Weight9810 to 10826 poundsReference

Front tire10.00-16Reference

2WD Rear tire16.9-38Reference

2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-38Reference

4WD Standard tires (ag)Front: 14.9-24. Rear: 16.9-38Reference

2WD Length433 cmReference

4WD Length442 cmReference

2WD ROPS Shipping weight4449 kgReference

4WD Cab Shipping weight4910 kgReference

2WD Clearance (front axle)56 cmReference

4WD Clearance (front axle)46 cmReference

Rear axle2438 mmReference

Front tread152 to 223 cmReference

Rear tread152/162/172/182/193/223 cmReference

Rear tread152 to 254 cmReference

Steering wheel204 cmReference

CaseIH 5140 attachments

front-end loaderReference

5140 Serial Numbers

Location:Serial number plate inside the cab on the left.Reference

1990JJF1000001Reference

1991JJF1006114Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Battery volts12Reference

CaseIH 5140 Height

Hood177 cmReference

Cab269 cmReference

Exhaust273 cmReference

Speeds

With 16.9-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
