Tractor · 1992Unverified

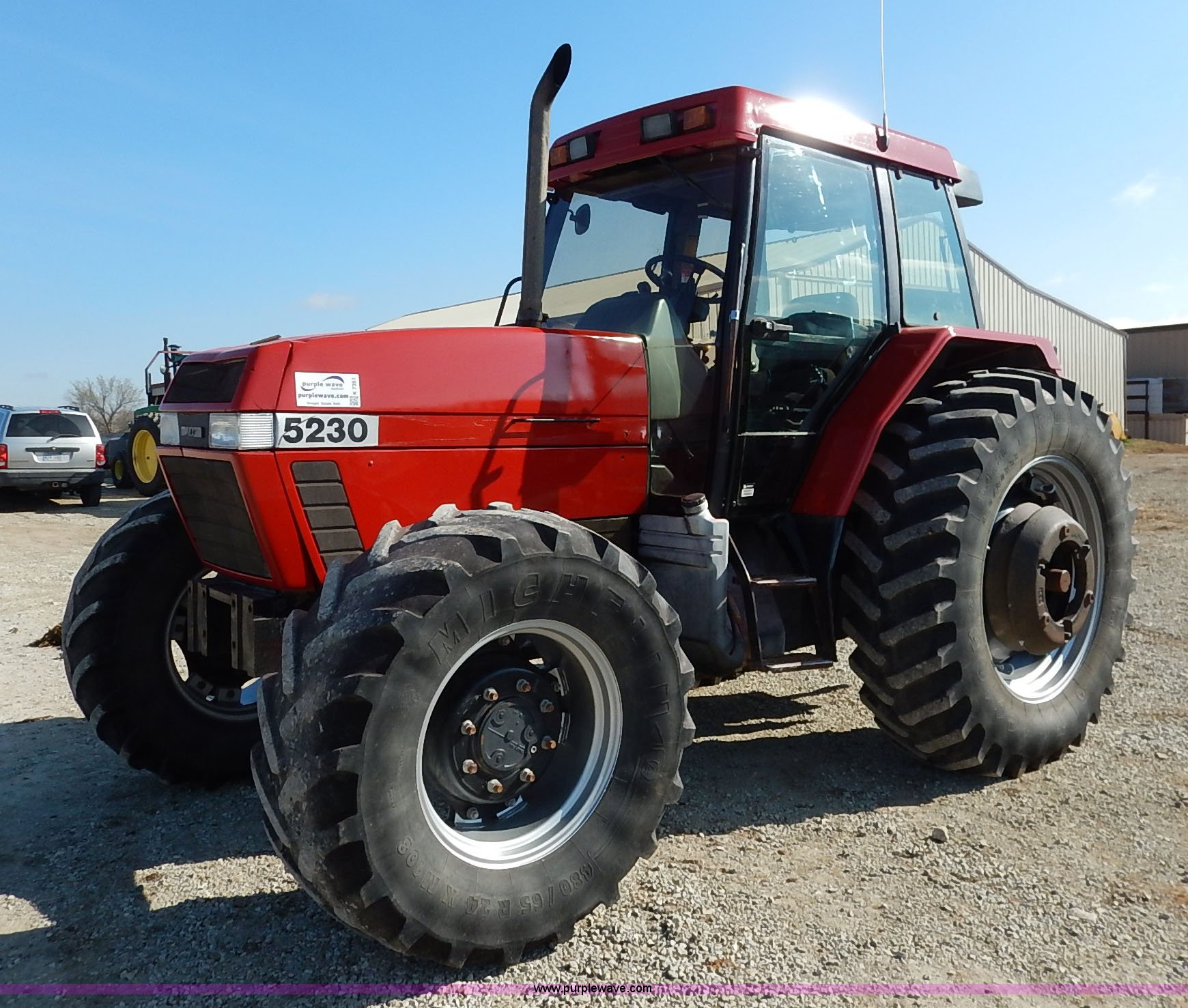

CaseIH 5230 Maxxum

Name: CaseIH 5230 Maxxum
Brand: CaseIH

CaseIH 5230 Maxxum — Maxxum Series · 90 hp. Reference specifications; pending source verification.

The CaseIH 5230 Maxxum is a tractor with a rated power of 90 hp, a mid-range figure for its class. Production of this model spanned the period from 1992 to 1997. The tractor features a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. Its operating weight ranges from 9567 to 10626 pounds, suitable for operations covering an area of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

9567 to 10626 pounds

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

90 hp

Recorded weight

4339 kg

Transmissions

16-speed synchronized

Production years

1992-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Original price was $39,000 in 1997Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post fixed ROPS. Cab optional with air-conditioning.Reference

Engine

CDC 5.9L 6-cyl dieselReference

Fuel tank135.1 LReference

Fuel tank170.3 LReference

CDCReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.9 LReference

Bore/Stroke102 x 120 mmReference

Fuel systemdirect injectionReference

Rated RPM2200Reference

Idle RPM850-2355Reference

Starter volts12Reference

Transmission

16-speed synchronizedReference

16-speed 4-speed power shiftReference

TypesynchronizedReference

Gears16 forward and 12 reverseReference

Type4-speed power shiftReference

Four power shift gears in four synchronized ranges and shuttle shifting.Reference

PTO & Hydraulics

PTO (claimed)67.1 kWReference

Typeclosed center pressure-flow compensatedReference

Pressure179.3 barReference

Valves1 to 3Reference

Pump flow75.7 lpmReference

Rear TypeIIReference

Controllower-link draft sensingReference

Rear lift3492 kgReference

Front HitchIIReference

Front lift (at 24"/610mm)2358 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase263 cmReference

4WD Wheelbase258 cmReference

Weight9567 to 10626 poundsReference

Front tire7.50-18Reference

Rear tire16.9-38Reference

Ag front7.50-18Reference

Ag rear16.9-38Reference

2WD Length433 cmReference

4WD Length442 cmReference

2WD ROPS Weight4339 kgReference

4WD Cab Weight4819 kgReference

2WD Clearance (front axle)56 cmReference

4WD Clearance (front axle)46 cmReference

Clearance (drawbar)47 cmReference

Flange rear axleReference

Bar rear axle2438 mmReference

Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

Rear tread152 to 279 cmReference

Steering wheel204 cmReference

5230 Serial Numbers

Location:Inside cab on leftReference

1992JJF1015072Reference

1993JJF1023186Reference

1994JJF1029431Reference

1995JJF1036193Reference

1996JJF1047028Reference

1997JJF1059169Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Charging amps95Reference

Batteries1Reference

Batteries2Reference

Battery volts12Reference

CaseIH 5230 Height

Hood177 cmReference

Cab269 cmReference

Exhaust273 cmReference

Speeds

With 16.9-38 rear tires. Reverse speeds are 22% faster than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
